Electric Lock
ER-601A
Our electric lock,with the function :Lock status self-inspecting,wrong operation
self-correcting,feature at high sensitivity,low voice,high-security.is the new generation of
intelligent door locks.
A.Features
The length of bolt ≧ 20 mm,meet the standard of GA/T73-94 5.1.6 B;
Can work compatible with building intercom, access control systems;
If artificially open,the bolt will pull back automatically;
This lock is suitable for left, right, open, Inward and outward door;
Wrongly opening,the lock will lock in 5-8 seconds automatically;
Voltage: DC12V - 18 v, current < 350 ma;Static<350mA, Standby Current is 25mA, time
for opening is less than 1s;
Working life (more than 500000 times), high sensitivity, low power consumption.
B.Installation
Install the lock according to the install diagram.
1.Install the bolt:check the consistency between the latch and the bolt, make sure the
depth of the latch more than 10mm.
2. Install the lock body (locks should be in the state of open);
Install lock pin (lock should be in the state of open);

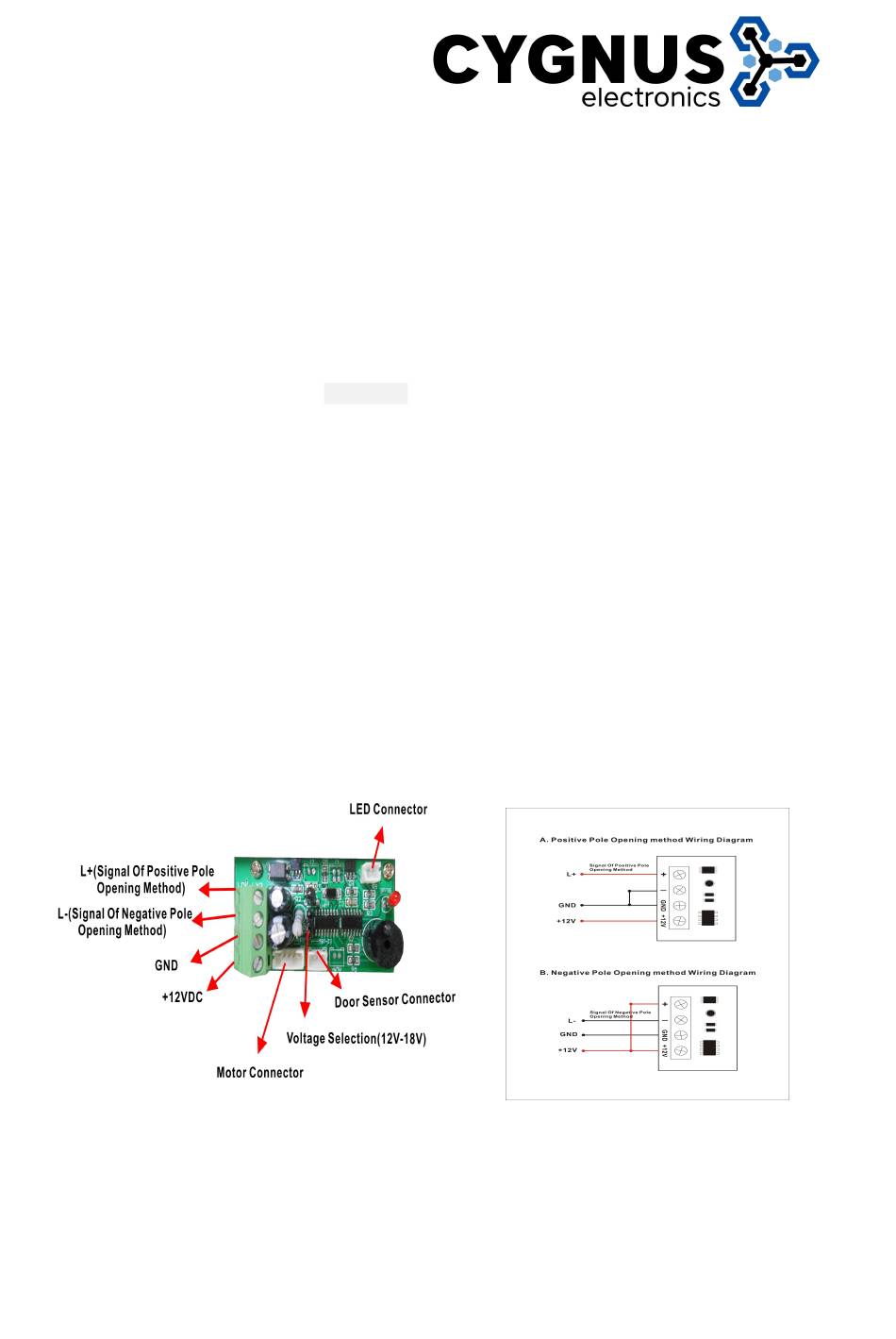

3.Below is the wiring diagram:
Note:The logo above is the same as the circuit abroad of the lock.
A. if you want to connect the positive
"L -" and "GND" with A short wires, otherwise it cannot control the lock;(Please check the
wiring diagram --A )
side to open the lock :please connect the contact

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ER-601A and is the answer not in the manual?

Questions and answers

Summary of Contents for Cygnus electronics ER-601A

  • Page 1 Electric Lock ER-601A Our electric lock,with the function :Lock status self-inspecting,wrong operation self-correcting,feature at high sensitivity,low voice,high-security.is the new generation of intelligent door locks. A.Features The length of bolt ≧ 20 mm,meet the standard of GA/T73-94 5.1.6 B; Can work compatible with building intercom, access control systems;...
  • Page 2 B.f you want to connect the negative side to open the lock, please connect the contact"+" and "L + 12 v" with a short wires, otherwise it cannot control the lock;(Please check the wiring diagram --B ) 4. Install the base late: Connect the lock to the power supply, fix the base late with screw; C.Check the circuit board by connecting the power(DC12-18V) Make sure: 1,close the door,the bolt will be out automatically...
