Summary of Contents for VooDooFX Hal 9000

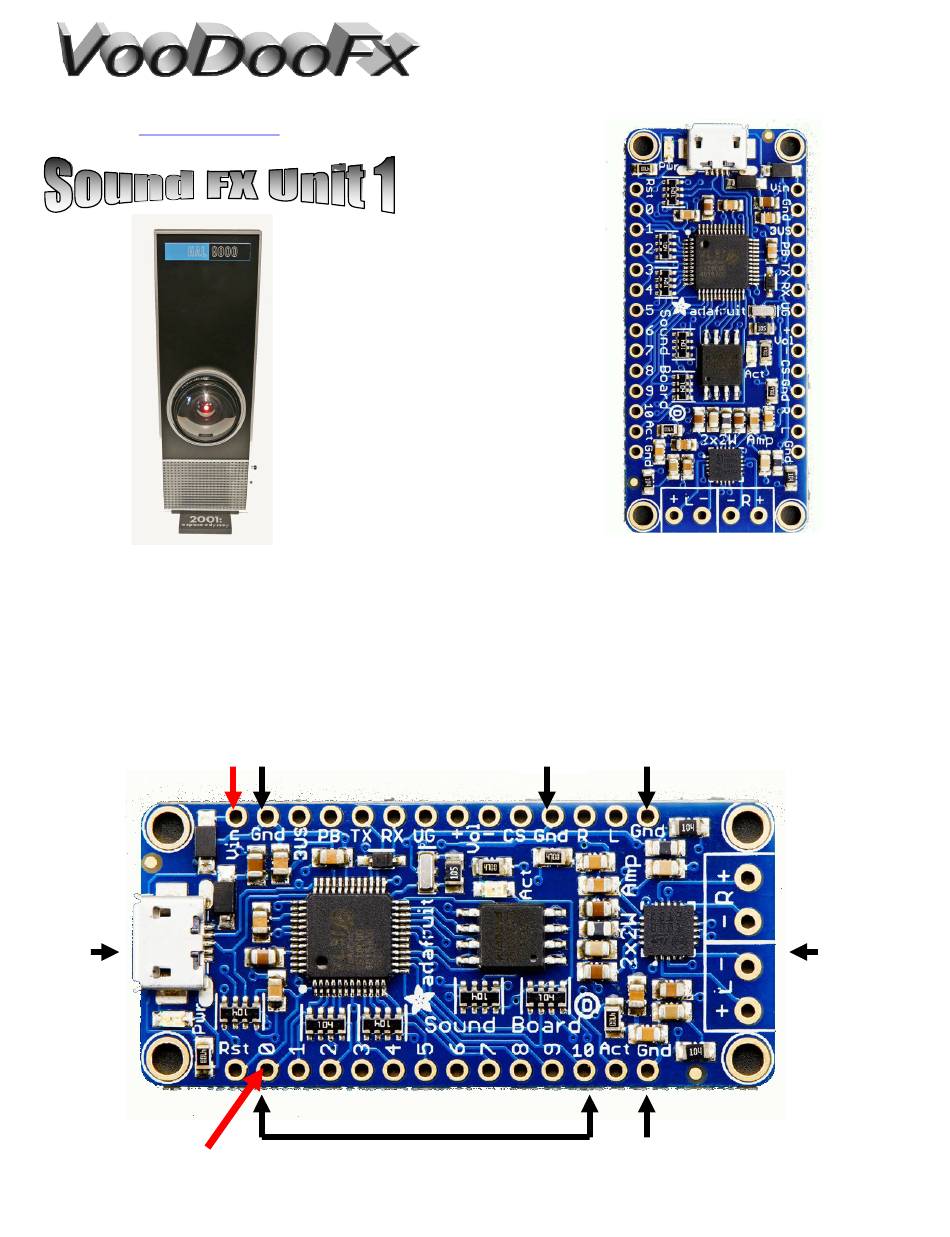

- Page 1 3312 Hoover St, Redwood City Ca 94063 650-568-3400 www.voodoofx.com Hal 9000 Circuit Board Diagram: + Vin 5-V - Gnd SPEAKERS PORT L&R TRIGGER PORTS 0-10 Use trigger port 0 & Gnd hooked to the sound trigger switch to activate the sound file.
- Page 2 SOUND BOARD CIRCUIT DIAGRAM: 5 Volt Power Sound Trigger On & Off Board Port main power switch In line resistor Sound trigger switch If your going to use the trigger switch you will need to drill out a hole on the side of the face plate. The speaker grill area will also need to be drilled out to improve sound quality.
- Page 3 Check Note: The terminal blocks included with your product may be blue or black. Indemnity You agree to defend, indemnify and hold harmless VoodooFX, its parent corporation, officers, directors, employees and agents, from and against any and all claims, damages, obligations, losses, liabilities, costs or debt, and expenses (including but not limited to attorney's fees) arising from: (i) your violation of any term of these Terms of Service;...
