Summary of Contents for VANSEN 7200A

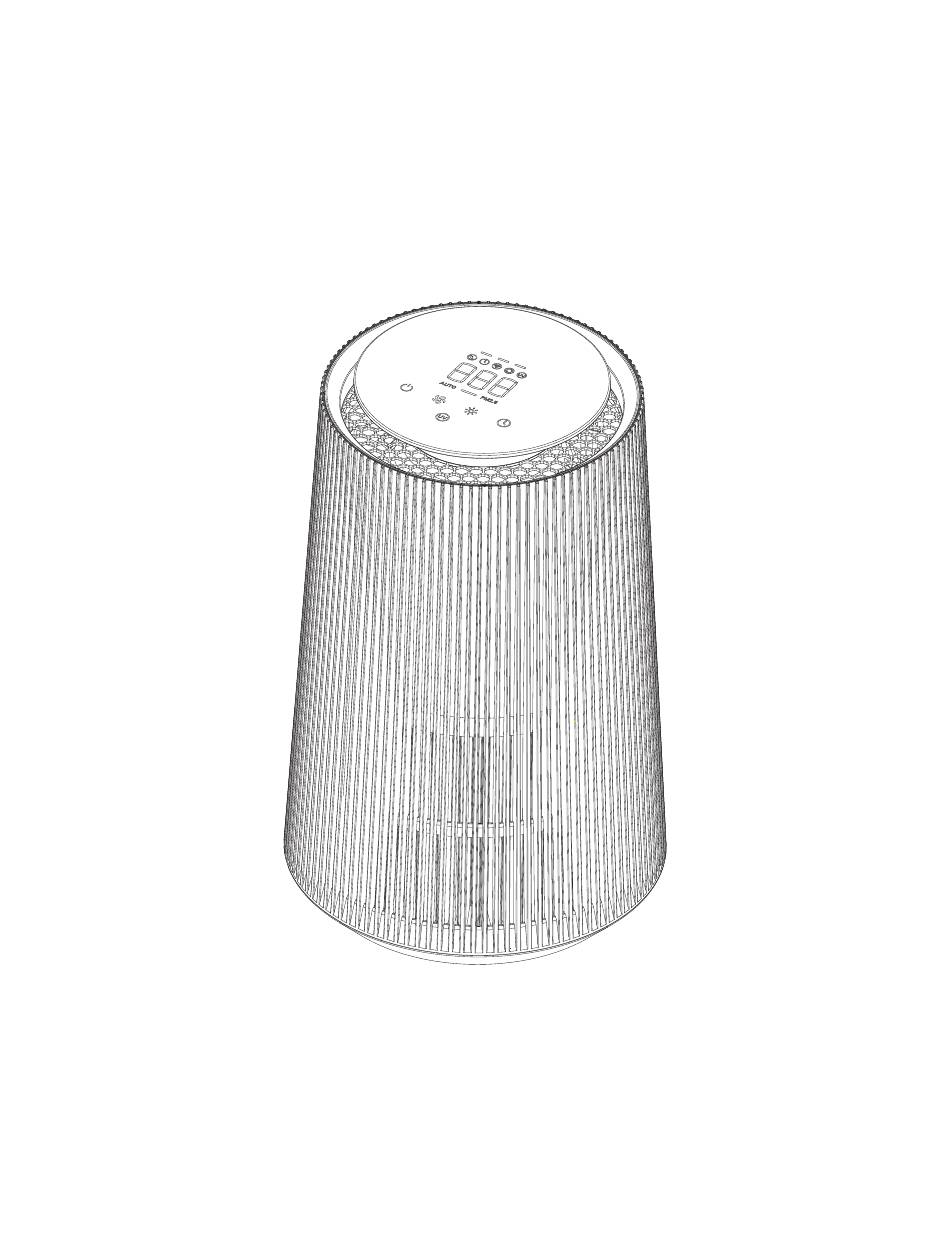

- Page 1 SMART APP AIR PURIFIER With UV-C LIGHT & AQI DISPLAY Model: 7200A USER MANUAL PLEASE READ THOROUGHLY BEFORE USING THIS PRODUCT...
-
Page 2: Warnings And Cautions
WARNINGS & CAUTIONS 1. Ensure the power line fits properly into the port before plug in. 2. Improper usage may lead the product to damage. 3. DO NOT place the air purifier near sources of heat. 4. DO NOT sit on or place anything on top of the purifier 5. - Page 3 Introduction Smart APP control air purifier, with PM2.5 air quality sensor and UV sterilizer, it can clean the dust, pet dander, smoke, mold, and pollen in the air, and protect your family and pets. Moreover, the convenient features of filter replacement reminder, timer setting, and night light functions provide you a daily quality service and decor your room.
-
Page 4: Product Diagram
Accessories H13 Filter Power Line Product Diagram Wind Outlet Main Body Control Panel H13 Filter Bottom Cap... -
Page 5: Specifications
Specifications Input Voltage AC: 100-240V, 50/60HZ Rated Power Effective Range 25-30㎡ Operating Conditions 41-104℉/5-40℃ CADR 147CFM/250m³/h Standy Power Noise Level Dimensions Filter H13 & Nylon pre-filter & Active carbon Operation Instructions in First Use 1. Reverse the unit to bottom, 2. - Page 6 3. Remove the filter PE bag. 4. Place the filter properly. 5. Screw the botton cap 6. Connect the power line. clockwise to fix it well. 7. Operation -On/Off 1st Touch: turn on the unit with AUTO mode. 2nd Touch: turn off the unit. -Fan Speed Controls (can only be operated when the unit is powered on) 1st Touch: low fan speed.
- Page 7 -Night Light 1st Touch: low light brightness. 2nd Touch: medium brightness. 3rd Touch: high brightness. 4th Touch: turn off the night light. -Timer Setting Timer can be set from 1 to 12 hours. Touch to add 1 hour. Touch to cut 1 hour. Long touch it for 3s to exit timer setting.
- Page 8 The air purifier can offer remote operation by using a home Wi-Fi connection through the TuyaSmart app in your mobile phone. Apple App Store -Connection b. To set up the purifier, turn the purifier on at the power outlet. The purifier must be turned on via the control panel.
- Page 9 Operation The circle would indicate current PM2.5 index, air quality and the filter lifespan. -Device On Touch the button to turn on or turn off the purifier. -Speed Controls Manual mode selected: Low, middle, high fan speed can be choosed. Auto mode selected: the fan speed would changed upon the current air quality.
- Page 10 FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause...
