Momoka Zoo65 Setup Manual

Hide thumbs

This manual is for reference purposes. If you have any questions or concerns,

please contact a representative at the Momoka Discord server.

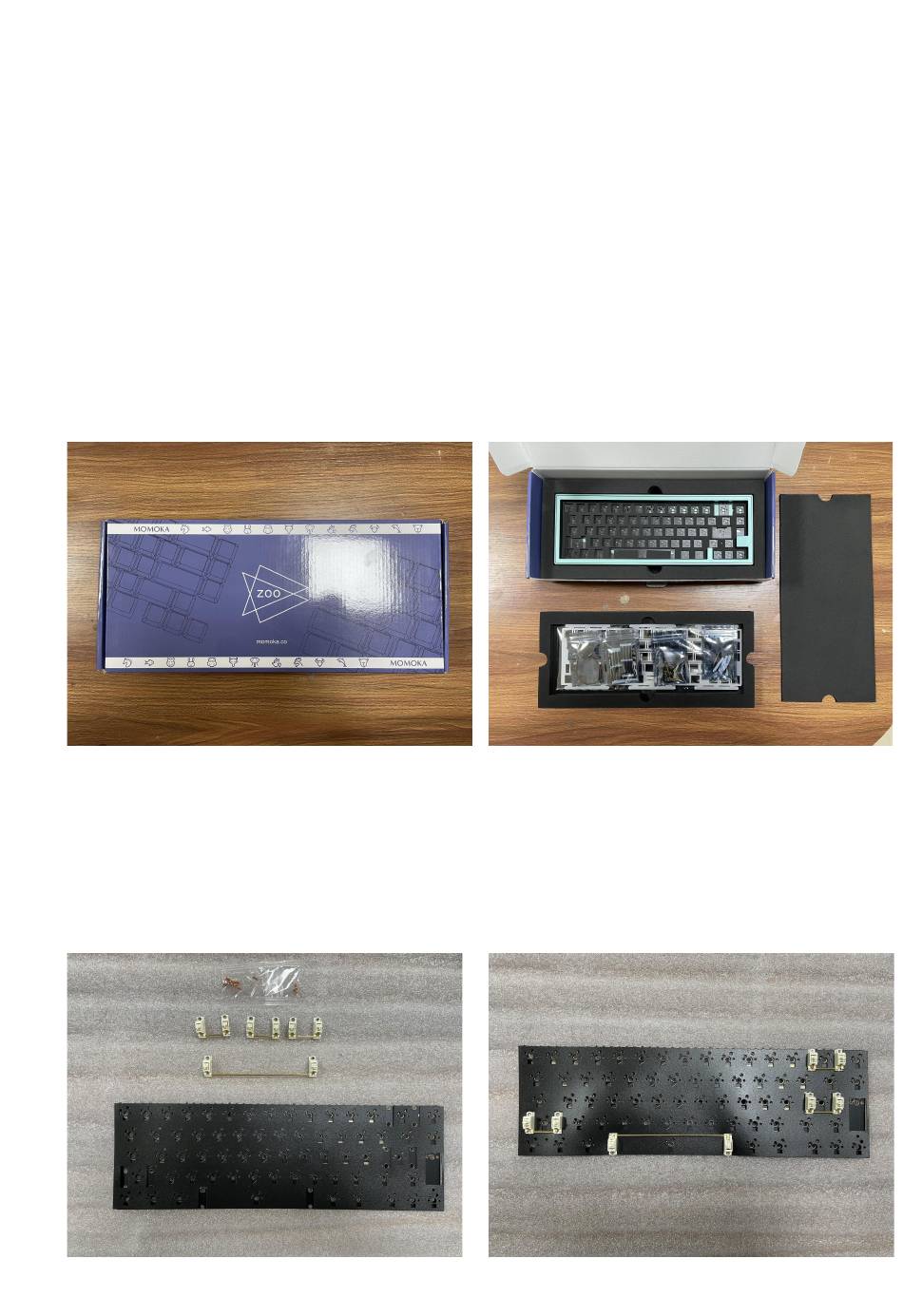

Step One: Ensure the outer packaging is undamaged.

Step Two: Ensure that all components have been included.

Should any issues arise during either of these steps, please contact a representative

of Momoka.

Step Three: Prepare a set of screw-in stabilizers (3x2u, 1x6.25u) for installation.

Place the included PE foam sheet on the PCB.

Step Four: Install your stabilizers. Should you experience any diﬃculty, seek

assistance online. Should this diﬃculty result from an issue with the Momoka

product, contact a representative of Momoka.
