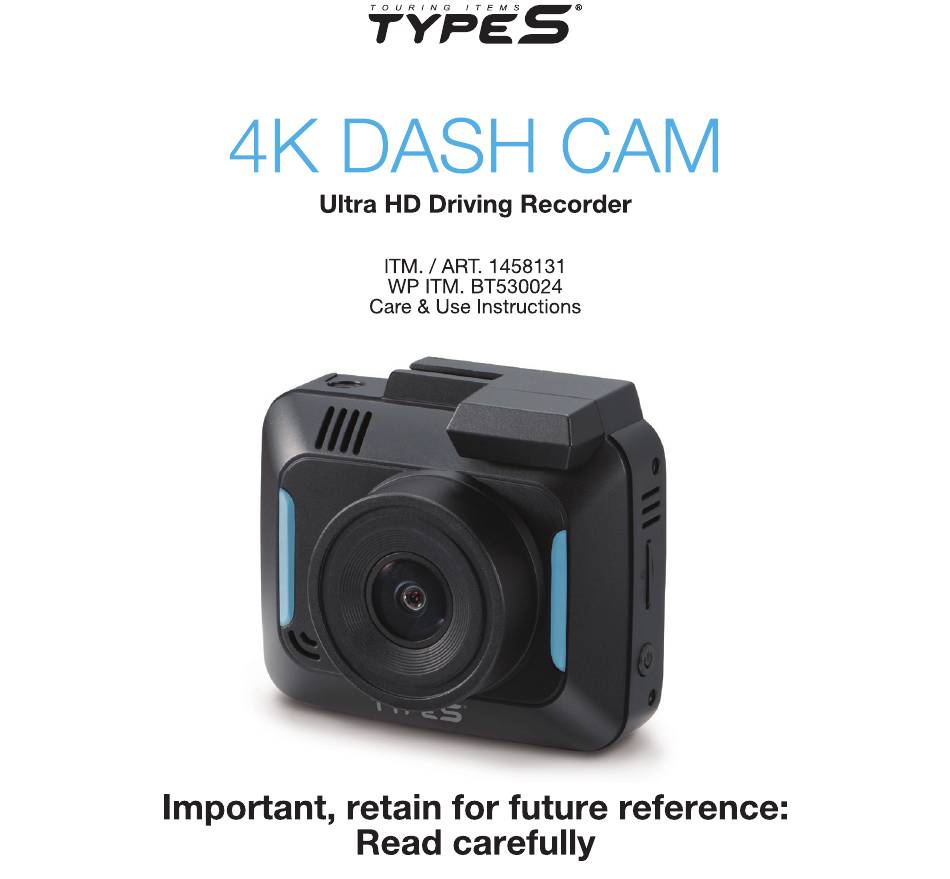

TYPE S 1458131 Care & Use Instructions

4k dash cam ultra hd driving recorder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1458131 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TYPE S 1458131

Summary of Contents for TYPE S 1458131

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Introduction ....................................1 2. Package Contents ...................................2 3. Product Specifications ................................3 4. Product Dimension ................................3 5. Product Overview ..................................4 6. Button Configuration ................................5 7. Before You Start ..................................6 8. Installation ....................................6 9. Initial Setup ....................................8 10. Dash Cam Menu Settings ..............................9 11.

  • Page 3: Introduction

    Consult an experienced technician if you are not comfortable installing the product. You can also contact TYPE S at 866.294.9244 to speak to one of our installation specialists if you have any specific questions regarding the 4K Dash Cam.

  • Page 4: Package Contents

    Registre este producto dentro de los 30 días siguientes a la compra para recibir 1 AÑO GRATUITO de cobertura de garantía adicional (más allá de la garantía estándar de un año), junto con ofertas de productos y anuncios especiales.

  • Page 5: Product Specifications

    3. PRODUCT SPECIFICATIONS Screen: 2.35" IPS Resolution: 4K UHD - Ultra High Definition (3840 x 2160p) Frequency: 2.4 GHz Operating Voltage: DC 12V / 24V - Cigarette Lighter Adapter (CLA) Operating Temperature: 140F~1400F (-100C~600C) Viewing Angle: 139° (optical diagonal field of view) Image Sensor: Maximum Signal Range: 9.84 Feet/3 Meters...

  • Page 6: Product Overview

    5. PRODUCT OVERVIEW FRONT MicroSD Card Slot Camera Lens Speaker Output Power Button BACK BOTTOM Rear View Camera 3.5mm Jack * Rear View Camera BT532375 sold separately Mini USB DC Power Input & File Transfer Port Function Buttons Microphone Reset / Restore Button...

  • Page 7: Button Configuration

    6. BUTTON CONFIGURATION 1. Power Button Press and hold to turn On/Off the Dash Cam. Press once to activate screen save. 2. Menu Button Press to open the menu or go back to the previous screen. 3. Up Button Press to navigate up within menus. 4.

  • Page 8: Before You Start

    7. BEFORE YOU START Please power ON, configure Initial Settings (Section 9), connect with the TYPE S Drive App (Section 16) and test before installing on your vehicle. Please use this document for detailed instructions and product information. As always, please feel free to contact our Customer Care team for further assistance toll-free (866) 294-9244.
  • Page 9 DC input port. Check the live screen in TYPE S Drive APP and determine the most suitable mounting position. (See page 17 on using the APP.) Warning: Do not install the product in a location where it can obstruct the driver’s field of vision.

  • Page 10: Initial Setup

    Route and hide the power cable in the headliner and pillars in your vehicle. Turn the adjustment knob clockwise while Plug the Cigarette holding the Windshield Charger Cable into the Mount onto the glass to 12/24V DC outlet. secure it on the windshield. 9.

  • Page 11: Dash Cam Menu Settings

    10. DASH CAM MENU SETTINGS Apply configuration and settings to the Dash Cam using the 5 function buttons. Note: Press any of the 5 function buttons once to bring out the menu bar at the bottom. Modes • Select between Video Mode, Camera Mode or Gallery Mode.
  • Page 12 Erase Files • Use the buttons to deselect the files you don't want to erase. Play Video Files 1. Press the button to cycle through the gallery. Press the / OK button Press the button until Press the / OK button to to confirm the erase.
  • Page 13 Video Setting 4K (3840*2160P) 2K (2560*1440P) FHD (1920*1080P) 1. Select camera resolution Anti-Flicker between 4K (3840 X 2160P), 2K (2560 x 1440P) and FHD (1920 x 1080P). 2. Select to invert the camera image upside down. 3. Select to invert the camera image left to right.
  • Page 14 Media Setting 1. Select to turn On/Off the audio of recorded video files. 2. Turn On/Off the key tone for Key Tone each button pressed. 3. Turn On/Off boot sound. 4. Select the level of sensitivity of the motion detection function.
  • Page 15 Enable and connect below Wifi network on your smart device Wifi Setting WiFi Setting Refer to page 17 on WiFi setting and auto sync with a smart device using the TYPE S Drive APP.

  • Page 16: Camera Status & Led Indicators

    11. CAMERA STATUS & LED INDICATORS Power / Mode Status LED Indicators Power On Blue LED light stays on when Dash Cam is powering on. Dash Cam powers ON when the engine is turned on. To manually power ON, press and hold the power button for more than 3 seconds . Recording Blue LED light flashes.

  • Page 17: Time-Lapse Recording Logic

    13. TIME-LAPSE RECORDING LOGIC Mode Behavior Normal Without time-lapse record, captures 30 frames per 1 second. Lapse 0.5s Time-lapse record, captures 1 frame per 0.5 second. Lapse 1s Time-lapse record, captures 1 frame per 1 second. Lapse 5s Time-lapse record, captures 1 frame per 5 seconds. 14.

  • Page 19: App Setup

    16. APP SETUP Auto sync with the Dash Cam 1. Open the 4K Dash Cam's main menu. 2. Go to WiFi Setting and turn it on. WiFi icon will appear if WiFi Note: Default WiFi is set as On. is turned on. 2019.01.29 17:44:20 Enable and connect below Wifi network on your smart device...
  • Page 20 3. Open the TYPE S Drive APP and select the Dash Cam category. Select 4K Dash Cam from the list of Dash Cams. Press Set Up Device. 4. Press WiFi Setting on the main interface when it prompts you to go to the WiFi setting page.
  • Page 22 Camera Setting (Camera Mode) • Resolution - Select the resolution of captured images. • Flip - Invert the camera image upside down. • Mirror - Enable this feature when you rotate the Dash Cam to rear facing. • Anti-Flicker - Adjust this setting to prevent the flickering of lights by selecting the frequency according to your local regulations.
  • Page 23 System Setting (continued) • Language - Default language is English. • Format - Erase everything on the MicroSD card. • Default Setting - Reset the Dash Cam to default settings. • Speed Unit - Select your desired speed unit. • Change WiFi Password - Change the Dash Cam's WiFi password.

  • Page 25: Viewing And Managing Media Files Using A Computer

    18. VIEWING AND MANAGING MEDIA FILES USING A COMPUTER Mini USB Data Cable (included) Once the 4K Dash Cam is connected to a computer with the Mini USB data cable (included), the screen on the left will show up on the Dash Cam. The 4K Dash Cam will function as a card reader for the computer, and it will appear as a new USB drive.

  • Page 26: Safety Information

    19. SAFETY INFORMATION IMPORTANT SAFETY INSTRUCTIONS 1. SAVE THESE INSTRUCTIONS– This manual contains important safety and operating instructions of 12V Car charger for Model BT530024. 2. Before using the product, read all instructions and cautionary markings. 3. Do not expose car charger to rain, moisture, or snow. 4.
  • Page 27 to vehicle orientation or road conditions. • Be sure to check the Camera’s position and mounting angle before each use. • Do not strike the 4K Dash Cam. It is a precision instrument. Otherwise, it may malfunction or cause damage resulting in a fire or an electric shock. •...

  • Page 28: Maintenance & Warranty

    Note: Warranty only applies for North American customers of purchases made in North America. CONDITIONS OF WARRANTY If during the 1 year warranty period your new product is found to be defective, TYPE S will repair such defect, or replace the product, without charge for parts or labor subject to the following conditions: 1.
  • Page 29 OWNER’S RESPONSIBILITIES: TYPE S will make every effort to provide warranty service within a reasonable period of time. SHOULD YOU HAVE ANY QUESTIONS ABOUT SERVICE RECEIVED OR IF YOU WOULD LIKE ASSISTANCE IN OBTAINING SERVICE, PLEASE CALL TOLL FREE 1.866.294.9244 DURING REGULAR BUSINESS HOURS MONDAY THROUGH FRIDAY 8:00 AM TO 5:00 PM.
  • Page 30 TYPE S and/or its affiliates do not guarantee or promise that the user of 4K Dash Cam will not be in an accident or otherwise not collide with an object and/or person. Our 4K Dash Cam is not intended in any way to be a substitute for careful and cautious driving or for the consistent adherence to all applicable traffic laws and motor vehicle safety regulations.

  • Page 31: General Information

    21. GENERAL INFORMATION CUSTOMER SERVICE/CONTACT IF YOU ARE EXPERIENCING ANY ISSUES WITH THE PRODUCT DURING OPERATION, DO NOT RETURN THE PRODUCT TO THE STORE. CONTACT TYPE S DIRECTLY FOR INSTRUCTIONS ON HOW TO RETURN/ EXCHANGE THE PRODUCT. FCC / IC Compliance Statement: This device complies with Part 15 of the FCC rules and Industry Canada license-exempt RSS standard(s).
  • Page 32 Mac and iPod touch are trademarks of Apple Inc. Microsoft is a registered trademark of the Microsoft Corporation. A Horizon Brands Company 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626 1.866.294.9244 | info@typesauto.com ©2020 TYPE S. All rights reserved. www.typesauto.com ML-530024_V1...
