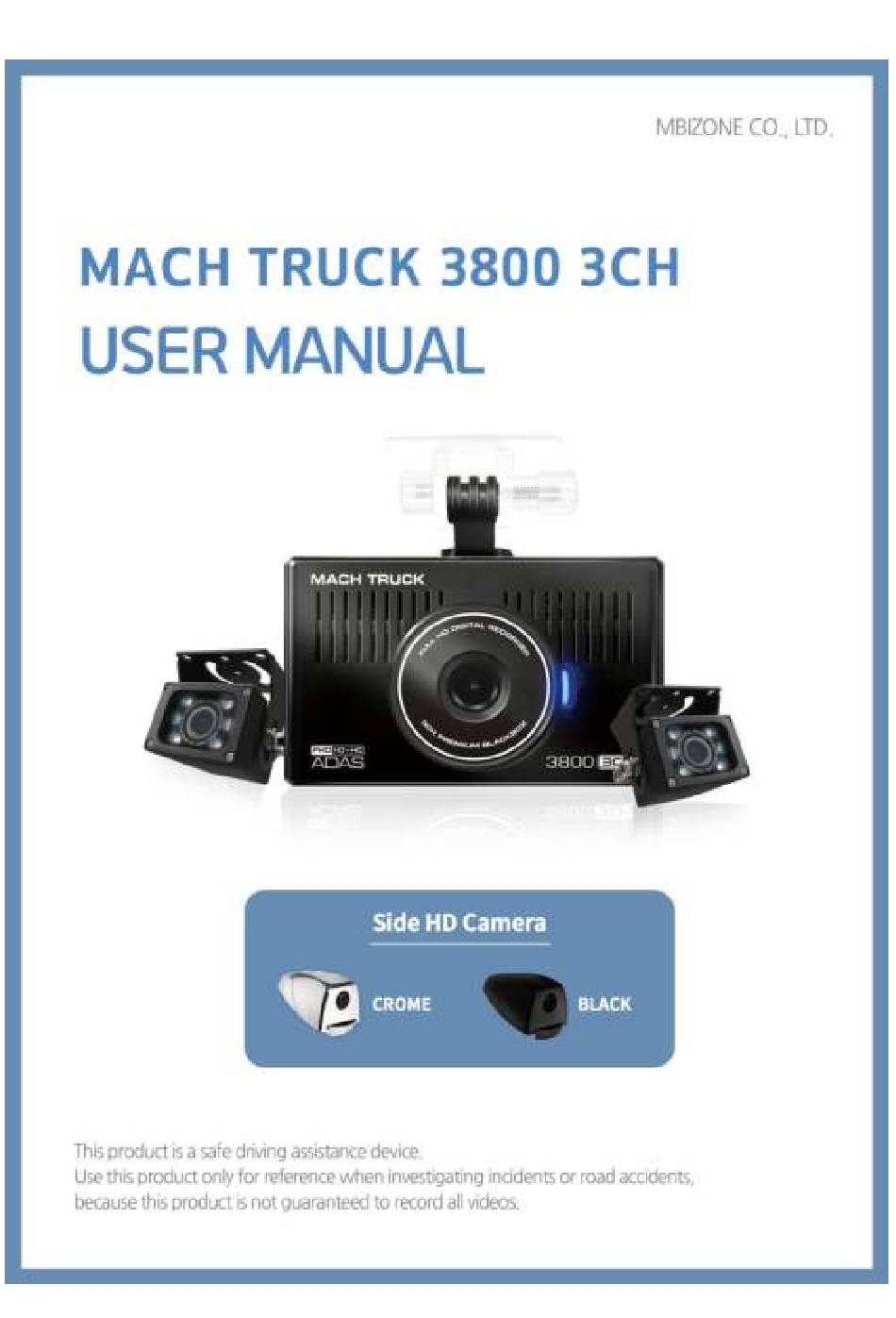

Mach Truck 3800 3CH User Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Table of Contents

Need help?

Do you have a question about the 3800 3CH and is the answer not in the manual?

Questions and answers

Summary of Contents for Mach Truck 3800 3CH

Page 2: Table Of Contents
Manual L I S T List ------------------------------------------------------------------------------------------------------------------------------------------------------- Before Use -------------------------------------------------------------------------------------------------------------------------------------------- When Installs Caution Standard Package ---------------------------------------------------------------------------------------------------------------------------------- Product Overview ---------------------------------------------------------------------------------------------------------------------------------- Live Screen ------------------------------------------------------------------------------------------------------------------------------------------- Menu ---------------------------------------------------------------------------------------------------------------------------------------------------- PC Viewer --------------------------------------------------------------------------------------------------------------------------------------------- Appendix #1 Firmware Update ----------------------------------------------------------------------------------------------------------------- Appendix #2 HDMI Monitor Output ----------------------------------------------------------------------------------------------------------- Appendix #3 CVBS Monitor / Navigation Output ---------------------------------------------------------------------------------------- Appendix #4 Left/Right/Rear Trigger --------------------------------------------------------------------------------------------------------- Appendix #5 Select Monitor / Navigation for Trigger Function --------------------------------------------------------------------- Appendix #6 Recording File Folder ----------------------------------------------------------------------------------------------------------...
Page 3: Before Use
Manual Before Use • Thank you for choosing our Mach Truck Dash Cam Series. • Please carefully read this manual and use this dash cam with safety. • This manual is subject to change without any notice. • Some functions or features are subject to change with prior notice for product improvement.
Page 4: When Installs
Manual When Installs • Do not remodel or cut the power cable. Use the power cable supplying by MBIZONE. • Check the dash cam operation before and after installing camera, memory and monitors to the vehicle. • Check the proper location and attach the dash cam. •...
Page 5: Caution
Manual Caution • Do not manipulate the dash cam during driving. It may cause the accident. • Do not leave the dash cam at very high or low temperature in long term. It may cause malfunction or failure. • The operating temperature range is -10C to 60c Use the dash cam in the temperature range. . •...
Page 6: Standard Package
Manual Standard Package 1. MACH TRUCK 3800 Standard Package ① Mach Truck 3800 ② External HD IR Camera(550HDIR) + 5m cable ③ External HD IR Camera(550HDIR) + 5m cable ④ Hardwiring power cable ⑤ Bracket(with 3M adhesive tape) ⑥ Micro SD Memory Card 32B (This memory will be pre-installed into the dash cam.) ⑦...
Page 7: Product Overview
Manual Product Overview 1. Front 1) Mount Connector : Connect your bracket came with the dash cam. 2) Speaker Hole : Sound alerts and voice guide 3) Front camera lens : Shoot the forward footage 4) Security LED : Display the recording status. 2.
Page 8 Manual 3. Top and Bottom 8) DC-IN port : Connect the DC power(12~24V) cable 9) GPS Port : Connect GPS antenna. 10) TV OUT Port : Connect CVBS monitor or Navigation. 11) CAM 1 Port : Connect camera. (Recommended to mount on right side.) 12) CAM 2 Port : Connect camera.
Page 9: Live Screen
Manual Live Screen 1. LIVE SCREEN FRONT CAM1 CAM2 1) Switch Display mode : By touching LCD, the display mode switches in the following order ; 3-way spilt screen(Front/Cam1/Cam2) ▶ Full screen of front camera ▶ 2 cameras vertical split screen(Cam1/Cam2) ▶...
Page 10 Manual 2. ICONS FOR RECORD STATUS Icon Description Use Driver Status Monitoring System Do not use Driver Status Monitoring System Do not use any function in the signal port Use Mini Digital Tach-graph Use Trigger function(Left/Right/Rear). Record to the HDD/SSD. Record to the Micro SD Card.
Page 11: Menu
Manual Menu 1 . A U D I O S E T T I N G ( 1 ) A L A R M - Turn on or off the alarm sound when the event modes(Normal Event, Parking Motion, Parking Event, Manual Rec, DSM ▶...
Page 12 Manual 2 . P L A Y B A C K ( 1 ) N O R M A L - The videos are recorded in 1 minute segments during driving. - The video is stored in the Normal folder. ( 2 ) N O R M A L E V E N T - When the impact to the vehicle is detected, a video is recorded for 20 seconds.
Page 13 Manual ( 5 ) M A N U A L R E C . - When user touches the manual recording button on the LCD, a video is recorded for 20 seconds. - The video is recorded from 5 seconds before touching to 15 seconds after touching. - The video is stored in the Manual REC.
Page 14 Manual ( 8 ) P L A Y B A C K - Touch on top left, the each cameras’ video recorded at the same time is played. - Touch on top right to move back to the file list. - Touch to play previous video, stop the video or play next video.
Page 15 Manual 3 . R E C O R D I N G C O N F I G U R A T I O N ( 1 ) P A R K I N G M O D E ▶ Default : Motion/Event - Select the recording mode during vehicle parked.
Page 16 Manual ( 3 ) R E C O R D I N G C H A N N E L S E L E C T I O N - Select the channel number to record. - Set to record the video from front camera only. - Set to record the videos from front camera and the camera connected to CAM1 port.
Page 17 Manual ( 4 ) M E M O R Y A L L O C A T I O N - Select memory allocation rate. - Allocation rate is measured in the amount of memory allocated per each recording mode.. - “Normal”...
Page 18 Manual ( 5 ) M E M O R Y S E L E C T I O N - Select memory type to store the videos. - Choose to store the videos to Micro SD card. - Choose to store the videos to external hard drive. - Please consult with MBIZONE to select the external hard drive guaranteed by MBIZONE.
Page 19 Manual ( 6 ) C A M E R A M I R R O I N G ▶ - Turn on or off to rotate the image horizontally. The same is applicable for both live view and recording. ▶ Default : OFF Option : ON or OFF Page | 18...
Page 20 Manual 4 . R E C O R D I N G Q U A L I T Y ( 1 ) R E S O L U T I O N - Select the camera resolution for front camera and side(rear) camera(s). - For front camera, choose the Full HD(1920 x 1080p) or HD(1280 x 720p).
Page 21 Manual ( 2 ) F R A M E S ▶ - Choose the FPS(Frame rate Per Second) for all cameras. ▶ Default : 30FPS Option : 10FPS, 15FPS, 20FPS, 25FPS, 27FPS and 30FPS [Caution] All the data stored on the memory will be erased after setting change by formatting the memory. ( 3 ) B I T R A T E S - Select the video recording bitrate for all cameras.
Page 22 Manual 5 . S C R E E N S A V E R - Select the screen display mode after 1 minute from live view screen. - Set to display current time and date on the LCD screen. - Set to turn off the LCD screen.
Page 23 Manual 6 . S A F E D R I V I N G D E V I C E ( 1 ) A D A S - ADAS is safety camera alert system. When the front camera detects vehicle’s lane departure or forward collision, the dash cam alerts by sound to the driver.
Page 24 Manual ( 2 ) S I G N A L P O R T S E L E C T I O N - The signal port is used for trigger function or operating Mini D-Tacho. - Select not to use the signal port. - Turn on to use the trigger function.
Page 25 Manual ( 3 ) P R I O R I T Y S P E E D S E L E C T I O N - Select the vehicle speed from D-Tacho or GPS when connecting D-Tacho. - Set to use the speed from D-Tacho.
Page 26 Manual 7 . S E C U R I T Y - Set to use password for the security of this dash cam. - If set the password, this dash cam permits to move the menu after authorizing by password. - The password allows only 4 numbers for example “1111”...
Page 27 Manual 8 . S Y S T E M ( 1 ) T I E M & D A T E - Set current time and date. - The time and date will be synchronized when external GPS antenna is connected. ( 2 ) L A N G U A G E - Choose any language.
Page 28 Manual ( 3 ) S E N S I T I V I T Y / C U T - O F F ▶ - Set G-sensor(shock) sensitivity for normal and parking modes from level 1 to level 10. ▶ Default : Level 5 Option : Level 1 ~ Level 10 ▶...
Page 29 Manual ( 4 ) S E C U R I T Y L E D - Turn on or off the security LED on front of body and status LED on rear of body. ▶ - Turn on or off the LEDs during normal mode. ▶...
Page 30 Manual ( 6 ) M E M O R Y F O R M A T - Memory formatting is to erase the videos recorded to the memory. - The data or videos may have errors if turns off the dash cam or detaches the memory before completing formatting. - Store any important data or videos separately before formatting.
Page 31 Manual ( 8 ) S Y S T E M I N F O R M A T I O N - The model name, firmware information, G-sensor level and GPS are displayed. Page | 30...
Page 32: Pc Viewer
PC Viewer This PC viewer is an application for viewing movies, GPS data and G-Sensor data recorded by Mach Truck 3800 and Mach Truck 5000. With this viewer, you can play your videos on the main screen while watching your vehicle’s speed, position, G-Sensor Data on graphs and maps.
Page 33 Manual ( 2 ) F I L E O P E N - Click the open icon. - Select “MBIZONE” drive and click “OK” button. ( 3 ) P L A Y V I D E O F I L E - Select any file from the list to load entire video play list in the memory card.
Page 34 Manual ( 4 ) V I E W S C R E E N - Select a certain screen in 4-spilit screen to enlarge full screen. ( 5 ) D O W N L O A D V I D E O ①...
Page 35 Manual ( 6 ) F U L L S C R E E N - Click the Full Screen button to see the video by maximum screen. ( 7 ) M A P - Select a certain video file. - Check the location of the recorded video. - It is enabled only if video is captured while connected to GPS antenna.
Page 36: Appendix #1 Firmware Update
Manual A P P E N D I X # 1 [ F I R M W A R E U P D A T E ] 1. Power off the dash cam and separate memory from dash cam. 2. Insert the memory to PC. 3.
Page 37: Appendix #2 Hdmi Monitor Output
Manual A P P E N D I X # 2 [ H D M I M O N I T O R O U T P U T ] ▶ This function is to view the live images from the dash cam with live HDMI monitor output. ▶...
Page 38: Appendix #3 Cvbs Monitor / Navigation Output
Manual A P P E N D I X # 3 [ C V B S M O N I T O R / N A V I G A T I O N O U T P U T ] ▶...
Page 39: Appendix #4 Left/Right/Rear Trigger
Manual A P P E N D I X # 4 [ L E F T / R I G H T / R E A R T R I G G E R ] ▶ This function is to view the live images of left, right or rear camera will automatically switch over the full screen when left or right turn signal is activated or reverse gear engaged.
Page 40: Appendix #5 Select Monitor / Navigation For Trigger Function
Manual A P P E N D I X # 5 [ S E L E C T M O N I T O R / N A V I G A T I O N F O R T R I G G E R F U N C T I O N ] ▶...
Page 41: Appendix #6 Recording File Folder
Manual A P P E N D I X # 6 [ R E C O R D I N G F I L E F O L D ] ▶ In order to play the video, please connect Micro SD Card to your PC and find “MBIZONE” directory. ▶...
Page 42: Appendix #7 Recording Time
Manual A P P E N D I X # 7 [ R E C O R D I N G T I M E ] ▶ The micro SD card 32GB is in the standard package. ▶ Please select memory capacity and settings for the purpose of use. Channel Memory Bitrate...
Page 43: Appendix #8 Specification
Manual A P P E N D I X # 8 [ S P E C I F I C A T I O N ] ■ MACH TRUCK 3800 3CH(MT-3800 3CH) Item Specifications Number of Channel 3 Channels Image Sensor Sony Starvis, 2.0Mega Pixels(Side 1.3Mega Pixels)
