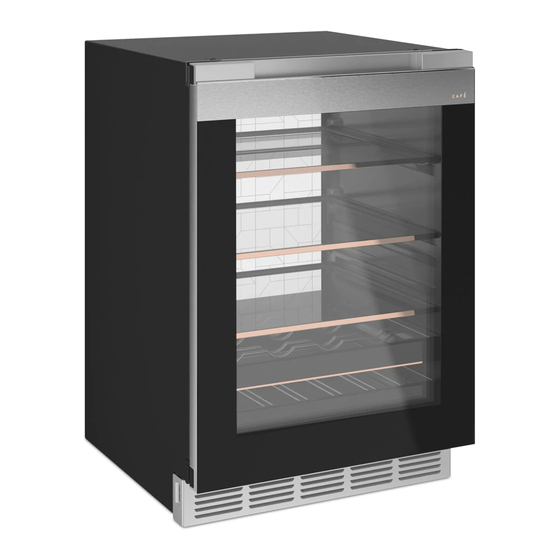

Undercounter beverage center
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Owner's Manual and Installation Instructions
Undercounter Beverage Center
CCP06BP*****
CCR06BM*****
Contents
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
WiFi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Shelves and Drawers . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Care And Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Cleaning the Outside . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Cleaning the Inside . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Vacation and Moving . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Location Requirements . . . . . . . . . . . . . . . . . . . . . . . . .10
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Write the model and serial numbers here:
Model # _______________________________
Serial # _______________________________
Find these numbers on a label inside of your
beverage center on the left side near the top.
ENGLISH/FRANÇAIS/ESPAÑOL
TM
The Installation Space . . . . . . . . . . . . . . . . . . . . . . . . . .11
Product Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Removing Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Reversing the Door Swing . . . . . . . . . . . . . . . . . . . . . . .12
Door Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Handle Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Method 1 - Undercounter Installation . . . . . . . . . . . . . . .15
Method 2 - Freestanding Installation . . . . . . . . . . . . . . .16
Connect to Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Complete Installation . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Consumer Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Pub No. 49-1000491 Rev. 4 10-20 GEA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAFE CCP06BP Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Design CAFE CCP06BP Series

  • Page 1: Table Of Contents

    Owner's Manual and Installation Instructions Undercounter Beverage Center CCP06BP***** CCR06BM***** Contents Safety Information .......3 The Installation Space .
  • Page 2 THANK YOU FOR MAKING CAFÉ A PART OF YOUR HOME. We take pride in the craftsmanship, innovation and design that goes into every Café product, and we think you will too. Among other things, registration of your appliance ensures that we can deliver important product information and warranty details when you need them.

  • Page 3: Safety Information

    IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE To reduce the risk of fire, explosion, electric shock, or injury when using your refrigerator, follow these basic safety precautions: described in this Owner’s Manual. stand on, or play in or with the appliance. located in accordance with the Installation or mental capabilities or lack of experience and Instructions before it is used.
  • Page 4 IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE CONNECTING ELECTRICITY ELECTRICAL SHOCK HAZARD Plug into a grounded 3-prong outlet Do not remove the ground prong Do not use an adapter Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
  • Page 5 IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE FIRE OR EXPLOSION HAZARD Flammable Refrigerant This appliance contains isobutane refrigerant, also known as R600a, a natural gas with high environmental compatibility. However, it is also combustible. Adhere to the warnings below to reduce the risk of injury or property damage.

  • Page 6: Using The Beverage Center

    Using the Beverage Center CONTROLS Temperature Setting Proximity Lighting The temperature range of the Beverage Center is 34°F The interior lighting is activated when someone (1°C) to 45°F (7°C). approaches the beverage center. To turn off this feature, press and hold Alarm, Display and Control Lock for 3 Use the + and - buttons to increase or decrease the seconds.

  • Page 7: Wifi

    Using the Beverage Center APPLIANCE COMMUNICATION WiFi (for customers in the United States, its territories, and Canada) Download the SmartHQ app. Find the password inside the beverage center door on • Available for iPhone from the Apple Store or from link at GEAppliances.com.

  • Page 8: Shelves And Drawers

    Using the Beverage Center GLASS SHELVES To replace a shelf, open the door completely to avoid potential damage to the gasket. Tilt the shelf to one side Tempered glass shelves in the beverage center unit are at an angle and slide toward the back wall, placing one removable for easy cleaning or for storing larger items.

  • Page 9: Care And Cleaning

    Care and Cleaning Cleaning the Outside FINGERPRINT RESISTANT STAINLESS STEEL* DO NOT use Stainless Steel cleaners on the door surfaces. IMPORTANT: The use of incorrect products may damage the outer finish of Fingerprint Resistant Stainless. Please follow these instructions and use only the appropriate items below to clean your appliance surfaces. damage.

  • Page 10: Installation Instructions

    Installation Beverage Center Instructions Questions? Visit our Website at: cafeappliances.com In Canada, visit cafeappliances.ca BEFORE YOU BEGIN LOCATION REQUIREMENTS IMPORTANT: Before use, this beverage center must Read these instructions completely and carefully. be installed properly. IMPORTANT • — Observe all governing codes NOTE: Allow the beverage center to sit upright on its and ordinances.

  • Page 11: Dimensions

    Installation Instructions BEVERAGE CENTER DIMENSIONS (60.3 cm) (59.5 cm) (119.4 cm) (86.6-89.1 cm) with leveling legs THE INSTALLATION SPACE REMOVE PACKAGING NOTE: The toekick and door handle (some models) are included in the packaging which covers the top of the unit. A wrench for the handle installation is Locate included in the accessory bag located inside the Outlet in...

  • Page 12: Reversing The Door Swing

    Installation Instructions INSTALLING THE BEVERAGE CENTER REVERSING THE DOOR SWING - MODELS WITH CAFE HANDLE - CCP06BP**** 1. Open the door and use a flat head screw driver to 3. Remove the door and leave the hinges open. remove the top and bottom covers from the cabinet 4.
  • Page 13 Installation Instructions INSTALLING THE BEVERAGE CENTER (Cont.) REVERSING THE DOOR SWING - MODELS WITH POCKET HANDLE - CCR06BM**** (Cont.) 2. Peel back the gasket and remove it from the door. 7. Remove trim screws and install in opposite corners. Gasket Trim Screws 8.

  • Page 14: Door Adjustment

    Installation Instructions INSTALLING THE BEVERAGE CENTER (Cont.) DOOR ADJUSTMENT Remove all protective film from the door before installing the handle. 1. Peel back the gasket near the top and bottom hinges. HANDLE INSTALLATION 1. Remove the handle allen wrench from the Gasket accessory bag located inside the beverage center.

  • Page 15: Method 1 - Undercounter Installation

    Installation Instructions INSTALLING THE BEVERAGE CENTER (Cont.) METHOD 1 UNDERCOUNTER INSTALLATION CONNECT TO POWER Level the Beverage Center ELECTRICAL SHOCK Adjustment of the leveling legs under the beverage HAZARD center may be necessary for a proper fit in the cabinet Plug into a grounded 3 prong outlet.

  • Page 16: Method 2 - Freestanding Installation

    Installation Instructions INSTALLING THE BEVERAGE CENTER (Cont.) METHOD 2 FREESTANDING INSTALLATION FREESTANDING INSTALLATION (Cont.) Attach the protective guard over the hinge FLOOR Installation: 1. Pry hole cover from the top of the beverage center WOOD FLOOR: Use Screw D (qty 2) to secure the cabinet on the hinge side to reveal the holes used bracket using the pair of marked holes (either Loc A or B).

  • Page 17: Troubleshooting Tips

    Troubleshooting Tips... Before you schedule service Problem Possible Causes What to Do Beverage center does not Beverage center is unplugged. Plug power cord into power source. Breaker is tripped or turned off/Fuse Reset/Turn on breaker or replace fuse. is blown. Beverage center compressor Normal when first plugged in Allow 24 hours for the beverage center to cool...
  • Page 18 Notes 49-1000491 Rev. 4...

  • Page 19: Limited Warranty

    Café Limited Warranty cafeappliances.com online, visit us at cafeappliances.com/service. Please have your serial number and your model number available when scheduling service. In Canada, visit cafeappliances.ca/service. Servicing your refrigerator may require the use of the onboard data port for diagnostics. This gives a Café...

  • Page 20: Consumer Support

    Consumer Support Café Website shop for more great Café products and take advantage of all our on-line support services designed for your convenience. In the US: cafeappliances.com Register Your Appliance prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material.
