Hybrid E Bike - Owner's Manual

Proudly designed in New Zealand

Table of Contents

Need help?

Do you have a question about the M18 Speedmaster and is the answer not in the manual?

Questions and answers

Summary of Contents for HYBRID BIKES M18 Speedmaster

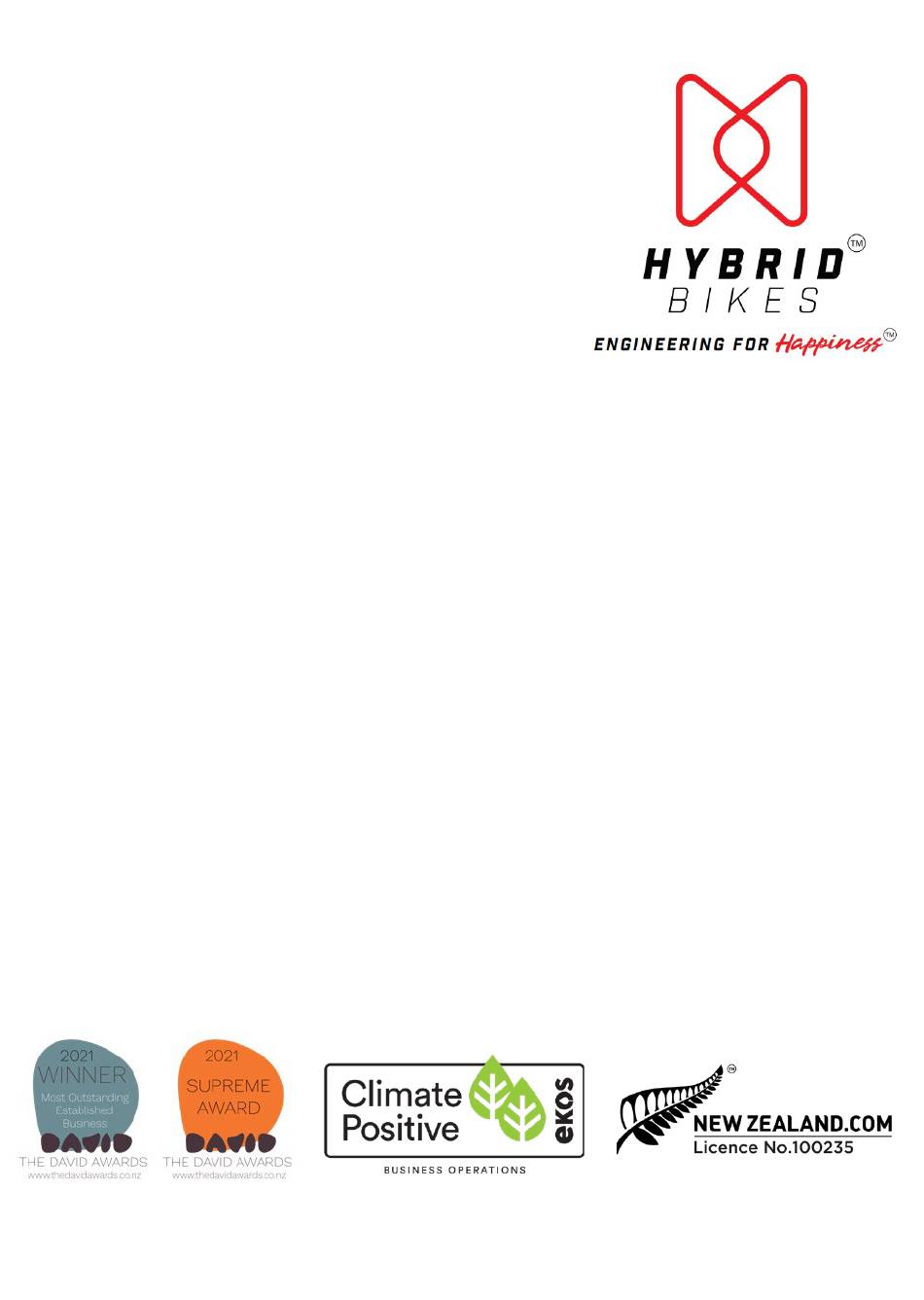

Page 1 Hybrid E Bike - Owner’s Manual Proudly designed in New Zealand...
Page 2 E bikes, offering outstanding strength and performance to all our customers. Our Hybrid Bikes dealership network is designed to look after you in the best possible way, so you can be fully satisfied with your purchase.
Page 3: Table Of Contents
Contents Packaging ..................3 Hybrid E Bike Models ..............4 Maintenance Tips ................7 Specifications ................. 8 Controller Display and Control ............9 Battery Instructions ..............23 Warranty ..................24 Service Record: ................27 Registration Form: ............... 28 P a g e...
Page 4: Packaging
Packaging NOTE: Your Hybrid E Bike will come fully assembled when you purchase it directly from us or from one of our Hybrid E Bike dealerships. Contents of box: E Bike • Battery • Battery Charger • Display Controller • Instruction Manual •...
Page 5: Hybrid E Bike Models
Hybrid E Bike Models M18 Speedmaster Fender Battery Handlebar Brake Lever Tyre Carrier Seat Fork Stem Display Wheel Stand Chain Pedals Spokes Rim Derailleur Crank Set Fork Disc Brake F18 Cruiser P a g e...
Page 6 M18 Sport Elite Special F18 Cruise Elite Special P a g e...
Page 7 M18 Sport Elite F18 Cruise Elite P a g e...
Page 8: Maintenance Tips
Maintenance Tips The maintenance schedule is based on the average E Bike usage. Your Hybrid E Bike should have its first service after 250km to ensure you are riding safely and efficiently. Further inspections should then be carried out every 6 – 8 months or around every 1,000km.
Page 9: Specifications
The battery should only be cleaned with a damp cloth and dried afterwards to avoid the risk of getting water into the connecting points. Note: If the Hybrid E Bike is exposed to salty conditions it will need to be serviced and maintained more regularly. Specifications Specifications Parameters...
Page 10: Controller Display And Control
Controller Display and Control 1.1 Specifications and Parameters of the Display • 36V / 43V / 48V Power Supply • Rated Current: 10 mA • Maximum Operating Current: 30 mA • Power-off Leakage Current: <1uA • Operating Current Supplied to the Controller: 50 mA •...
Page 11 1.3 Function Overview and Key Definitions 1.3.1 Function Overview Use of a two-way serial communication protocol, simple • operation of the display via the external 5-key keypad Speed display: Displaying the real-time speed as SPEED, the • maximum speed as MAXS and the average speed as AVG Km or mile: The user can choose between km and mile •...
Page 12 1.3.2 Information on the Display A: Battery level: 10 segment battery indication; the voltage that each segment represents can be customised B: USB charge symbol C: Headlight indication: Only shows when the headlight or backlight is on D: Error display: When a fault is detected the symbol will be displayed E: Service Menu F: Speed display: display of the speed being km/h or mph...
Page 13 A: Up B: Down C: Headlight D: On/Off E: Mode 1.4 Normal Operation 1.4.1 On / Off Switch To turn on the device press and hold for 2 seconds to power on the display. Press and hold again for 2 seconds to power off the display. If the bike is not used, after 5 minutes (time can be set) the display will be automatically turned off.
Page 14 1.4.3 Switch between Distance Mode and Speed Mode Briefly press to switch between distance and speed. Single-trip distance (TRIP km) - total distance (TOTAL km) – maximum speed (MAX km/h) – average riding speed (AVG km/h) are displayed in successive order. 13 | P a g e...
Page 15 1.4.4 Headlight / Display Backlight Switch By pressing the icon for 2 seconds, this will turn on the backlight of the display as well as the headlight and taillight. By pressing again for 2 seconds, this will turn the lights off. If you are in a dark enviroment the display backlight, headlight and tailight will be turned on automatically for you.
Page 16 1.4.6 Battery Status Indication When the battery status is displayed, a certain number of the battery LCD segments as well as the border will light up according to the actual quantity of charge. If the battery is showing with no remaining segments and the border is blinking, the battery needs to be charged immediately.
Page 17 1.5.1 Setting Preparation When the display is active, press twice (leaving 0.3 seconds between each press). The system will then enter the parameter setting state where tC is displayed, in which the various parameters can be set (as outlined further below).
Page 18 If the user does reset the data, the single trip distance and the accumulated total riding time will be automatically cleared when the accumulated total riding time exceeds 99 hours and 59 minutes. 1.5.3 Km / Mile By following the instructions per ‘1.5.1 Setting Preparation’ to press twice (leaving 0.3 seconds between each press), the display will enter the MENU state where the tC is displayed.
Page 19 1.5.4 Light Sensitivity By following the instructions per ‘1.5.1 Setting Preparation’ to press twice (leaving 0.3 seconds between each press), the display will enter the MENU state where the tC is displayed. You will then need to briefly press until you reach the display showing bL0.
Page 20 1111Ba 1.5.6 Automatic Off Time By following the instructions per ‘1.5.1 Setting Preparation’ to press twice (leaving 0.3 seconds between each press), the display will enter the MENU state where tC is displayed. You will then need to briefly press until you reach the screen displaying OFF.
Page 21 1.5.7 Maintenance Warning (can be deactivated) By following the instructions per ‘1.5.1 Setting Preparation’ to press twice (leaving 0.3 seconds between each press), the display will enter the MENU state where tC is displayed. You will then need to briefly press until you reach the screen displaying...
Page 22 1.6 USB Charging You can charge an external device such as your cell phone using the USB port found on left hand side of the display unit (under the discrete cover). When the device is charging you will see the charging symbol appear. The maximum charging current is 500mA.
Page 23 1.7 Error Code Definitions Note: Error Code 10 will probably appear on the display when the e-bike is climbing for a long time. This indicates that the motor temperature has reached the protection value, in which case the user needs to stop the e-bike for a rest. If the user continues to run the e-bike, the motor will automatically cut off the power.
Page 24: Battery Instructions
Battery Instructions Dust cap to prevent water and dirt getting into the battery pack. DISPLAY (DP C07.UART) The Hybrid E Bike battery can be charged on or off the bike. The charger light when in use indicates: 1) Red light: Battery is still on charge 2) Green light: Battery is fully charged and can be disconnected By using the keys supplied you can remove the battery from the frame.
Page 25: Warranty
The “Hybrid Bikes Ltd” limited warranty covers defects in materials and workmanship on the frame, forks, motor, brakes, battery and on parts which are fitted onto the Hybrid branded E Bikes by Hybrid Bikes Ltd or any authorised Hybrid E Bikes dealer and sold directly to the customer.
Page 26 The “Hybrid Bikes Ltd” limited warranty does not cover the E Bike and any of the original parts if they have been modified or changed in any way without approval from “Hybrid Bikes Ltd”.
Page 27 Note: you will also need to provide your proof of purchase for investigation. In case of replacement or refund, the returned products become the property of “Hybrid Bikes Ltd”. 26 | P a g e...
Page 28: Service Record
Service Record: Recommended Service Schedule: 1. First service after 250km or 3 months (whichever comes first) 2. Every 1,000km or every 6-8 months (whichever comes first) NOTE: Please keep all receipts with your service history. Service History: ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________...
Page 29: Registration Form
Registration Form: Hybrid E Bike serial number: _________________________________________________ Model: ____________________________________________ Colour: ____________________________________________ Date of Purchase: ____________________________________ Dealer's Name/Location: ___________________________________________________ NOTE: Please register your Hybrid E Bike with the authorised dealer you made your purchase from or online here. You must register your Hybrid E Bike within 30 days of purchase for the warranty to remain valid.
Page 30 29 | P a g e...

This manual is also suitable for:

F18 cruiser M18 sport elite special F18 cruise elite special M18 sport elite F18 cruise elite
