Summary of Contents for BERLON Lowe XR Series

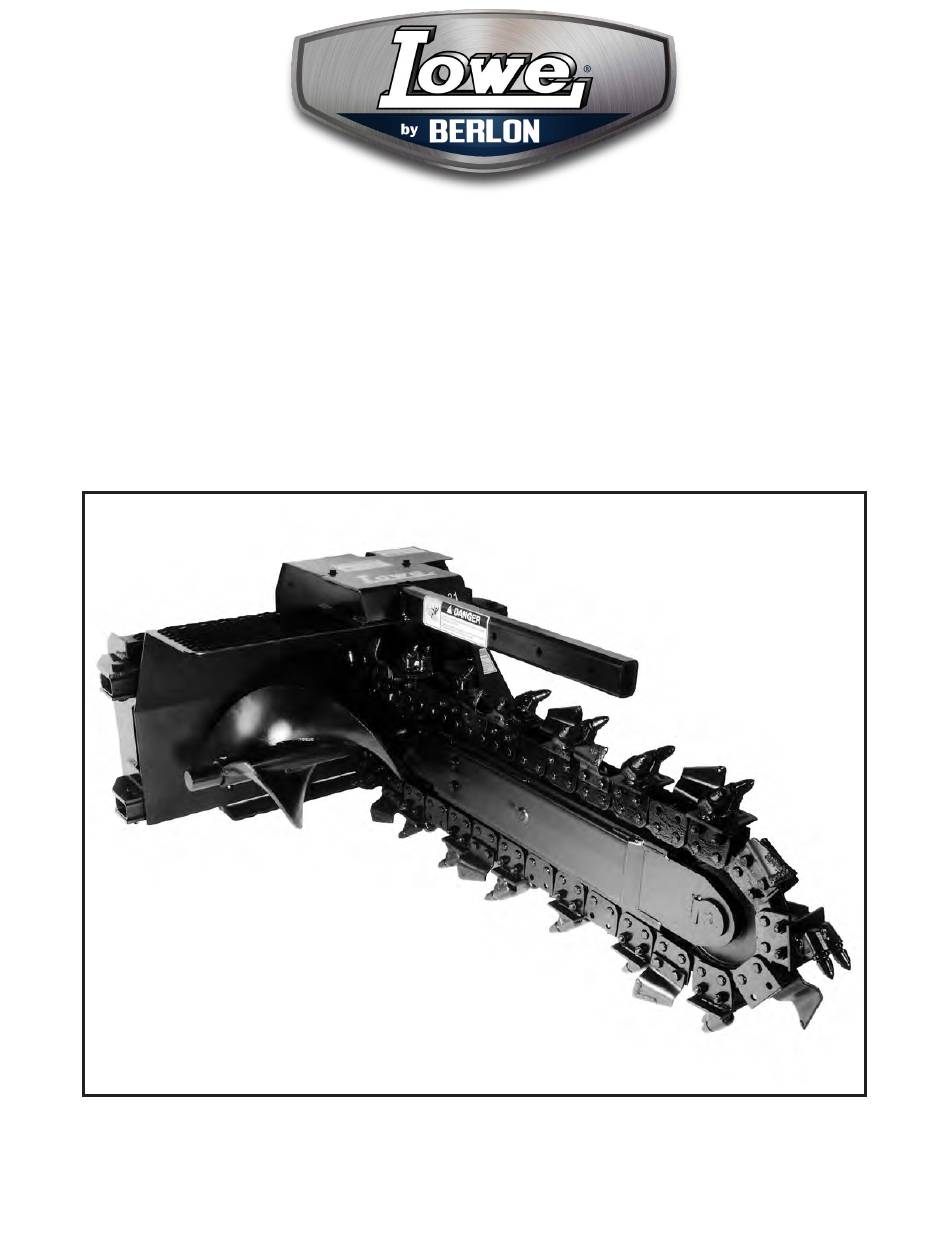

- Page 1 HYDRAULIC TRENCHING ATTACHMENTS FOR SKID LOADERS XR-SERIES OPERATOR’S MANUAL Do Not Use or Operate This Equipment Until the Manual and Assembly Instructions Have Been Read and Understood!! Part #RAL 3122...
-
Page 3: Table Of Contents
18903 High Point Road Viola, WI 54664 Table of Contents Warranty and Reservations Safety Information Machine Setup Mounting Instructions for Skid Loaders Operation Troubleshooting Trencher Replacement Parts VIII Maintenance Specifications http://www.loweman.com For more information, call: North America, Toll Free 1-800-356-9180 • FAX 608-538-3995 1-888-DIG-LOWE (344-5693) 1-608-538-4000 ©... - Page 4 WARRANTY Lowe Attachments, LLC (LOWE ) is proud of its reputation for producing products with high standards of quality and ® workmanship. When LOWE products are used and maintained in the prescribed manner, you can be assured they will ® provide reliable service.
-
Page 5: Safety Information
SAFETY INFORMATION The Safety Alert Symbol is used on messages wherever your safety is involved. When you see it, pay attention! Safety Alert Symbol To emphasize special information, the words listed below carry specific meanings and should be carefully reviewed. Danger .. - Page 6 Location of Safety Notices: MODELS XR-7, XR-14, XR-21, XR-25, & XRH-35 Ref. Part Description SD-2 No Step Decal SD-4 Before Leaving Loader SD-6a Danger Decal (2) SD-8 Flying Debris SD-12 Side Shift (Hydraulic only) SD-7 Before Using Machine SD-10 Excess Chain Tension L-Large Lowe Logo ®...
-
Page 8: Mounting Instructions For Skid Loaders
MOUNTING INSTRUCTIONS FOR SKID LOADERS Single point hose attachment for most loaders. NOTE: All LOWE skid-steer trenching attachments are equipped with 37 degree JIC adapters. Attachment hoses should ® have ⁄ inch (-10) female fittings on the attachment end. 1) Insert loader boom plate into Trencher Mounting Bracket. 2) Secure all locking levers or pins in their proper location. -
Page 9: Operation
V OPERATION TRENCH WIDTHS & DEPTHS Max. Depth Max. Depth Max. Width Max. Width In./Cm. In./Cm. In./Cm. In./Cm. MODEL XR-7 36/91 6/15 MODEL XR-25 60/152 6/15 8/20 8/20 30/76 48/122 36/91 10/25 12/30 30/76 48/122 6/15 MODEL XR-14 36/91 8/20 30/76 10/25 MODEL XRH-35... -
Page 10: Troubleshooting
TROUBLESHOOTING Shut off power and disconnect power source before performing service checks. WARNING: Diesel fuel or hydraulic fluid under pressure can penetrate the skin or damage eyes. Fluid leaks under pressure may not be visible. Never use a bare hand to find leaks and always wear safety goggles for eye protection. -
Page 11: Trencher Replacement Parts
TRENCHER REPLACEMENT PARTS Exploded Parts Diagram: MODEL XR-7 TR7-501AXR Motor Cover MEL-12K TR60-18XR Hydraulic Motor Driven Sprocket 2a) TR-504X W-10 Motor Fitting (2 required) Lockwasher TR60-15XR N-10 Motor Sprocket (includes key) Drive Locknut (1) TR7-506XR Chain (includes master link) Drive CR7-200X Drive Shaft TR7-501X... - Page 12 Exploded Parts Diagram: MODEL XR-14, XR-21, & XR-25 TR-501AXR Motor Cover TR80-26X Driven Sprocket MEL-12K Hydraulic Motor for XR-14 Trencher P2-12 Hex Jam Nut Hydraulic Motor for XR-21 Trencher TR-520C Holding Bolt MEL-18K Hydraulic Motor for XR-25 Trencher CR200-X Drive Shaft MEL-21K Motor to hose fitting (2 required) TR-508X...
- Page 13 Exploded Parts Diagram: MODEL XRH-35 TR35-501AX Motor Cover P2-12 Hex Jam Nut TKL-30T Hydraulic Motor TR-520C Holding Bolt 2a) TR35-504X Motor to hose fitting (2 required) CR200-X Drive Shaft TR80-15XR Motor Sprocket (includes keys) TR-508X Spoil Auger TR35-506SH Drive Chain (includes master link) TR-518X Grease Cylinder Assembly TR-501X...
- Page 14 CRX-7 Trench Cleaner Assembly for Model XR-7 Ref. Part Description 1) 51-ARM-X7 Trench Cleaner Arm 2) TCLA-9 9 Inch (229 mm) Trench Cleaner Linkage Assembly 3) TCLA-11 11 Inch (279 mm) Trench Cleaner Linkage Assembly 4) 51-BAR-X7 Trench Cleaner Bar for 24”, 30”, & 36” Depths 5) L-3015 Pin &...
-
Page 15: Maintenance
VIII MAINTENANCE Shut off power and disconnect power source before performing maintenance. WARNING: Diesel fuel or hydraulic fluid under pressure can penetrate the skin or damage eyes. Fluid leaks under pressure may not be visible. Never use a bare hand to find leaks and always wear safety goggles for eye protection. -
Page 16: Specifications
IX SPECIFICATIONS Operational Range GPM (lpm) Relief PSI (kPa) Model XR-7 8 to 14 (30.3 to 53) 1,700 to 3,300 (11,721 to 22,753) Model XR-14 10 to 20 (37.9 to 75.7) 1,900 to 3,300 (13,100 to 22,753) Model XR-21 13 to 25 (49.2 to 94.7) 2,000 to 3,300 (13,790 to 22,753) Model XR-25 16 to 25 (60.6 to 94.7) - Page 17 ) t f ) t f ) t f ) t f ) t f ) t f...
