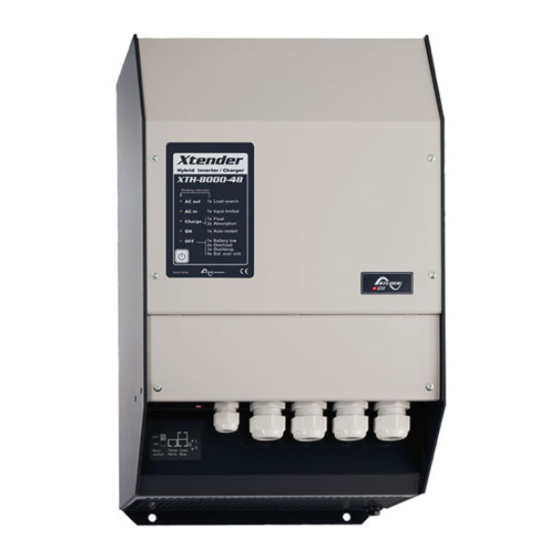

- Page 1 Bolanmu Energy Quick guide XTH Battery Charger/Inverter...
- Page 2 Introduction Congratulations ! You are about to install and use a high-end equipment that will play a central role in the energy management of your battery-based system. The XTH is an smart battery charger/inverter with advanced functions. It has a 5-year warranty. Félicitations ! Vous vous préparez à...
- Page 3 General Information Compatible with : Exclusion of liability Bolanmu disclaims all responsibility and liability for damage, costs or losses resulting from an installation that does not comply with the instructions, a faulty operation or inadequate maintenance. The use of Bolanmu equipment is in any case under the responsibility of the customer.
- Page 4 Mounting and installation Storage and content Fixing and dimensions 60°C 220mm -20°C min. 200mm min. 200mm Mounting place min. 200mm 34 - 46kg 300mm 230mm...
- Page 5 BAT+, M8 BAT-, M8 AUX1 • 3x10mm cable, 1.6Nm • 95mm cable M8, 10Nm xth 8000-48 xth 5000-24 xth 3000-12 AUX2 • 3x25mm cable, 1.6Nm (xth 8000) NC C NO • 70mm cable M8, 10Nm xth 6000-48 Protection device to protect cables...
- Page 6 Multi units and power up Display Up to 9 XTH in the same communication bus Display system on – AC out present 230V / 120V ac blink – standby, load search on – AC in source present blink – AC input current limit is reached Blinking indicator AC out 1x Load search...
- Page 7 Configuring the XTH Multi units rcc 02/03 3 phase and parallel combination configuration assistant L1 1 0 Vac 231 Vac 0 Aac 0.03 kW L1 L2 L3 27.7 Vdc -2 Adc Configurating parameters Displaying real time user Basic settings information Battery management and cycle Inverter AC in and transfer...
- Page 8 Technical data Maintenance and recycling Maintenance and recycling Except for the periodic check of the connections (tightening, general IP 20 condition), the XTH does not require any particular maintenance. Protection Class I To dispose of this product, please use the service for the collection of electrical waste and observe all obligations in force in the place of purchase.
