Dongguan Taizhong Electronic Technology Co., LTD

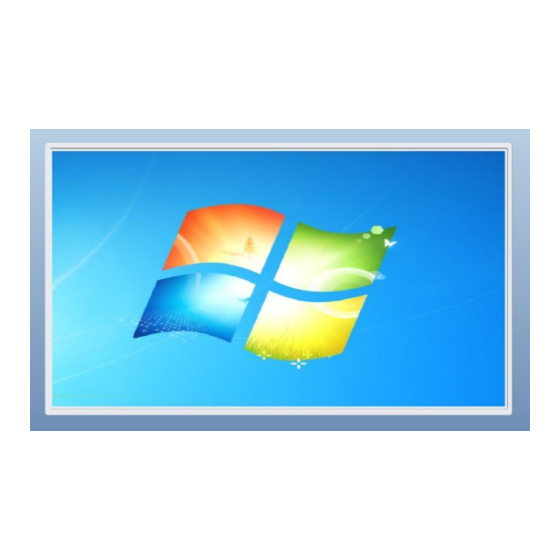

49 inch infrared touch all-in- one computer
Model : TZ 490BG03
compile
Yongqiang
Zhang
Check
Dongguan Taizhong Electronic Technology Co., Ltd.
Address: Building B, No. 5, Xinshang Road, Xinlian Community, Humen Town
Dongguan City, Guangdong Province, China
Email : tizonet@163.com
Tel: 0769-83060762
R&D Department
Check
Wei Wang
Customer
Approval
Approval
Lin Liu
Remark
Advertisement
Table of Contents
Summary of Contents for Teasung TZ 490BG03
- Page 1 Dongguan Taizhong Electronic Technology Co., LTD 49 inch infrared touch all-in- one computer Model : TZ 490BG03 R&D Department compile Check Approval Yongqiang Wei Wang Lin Liu Zhang Customer Check Approval Remark Dongguan Taizhong Electronic Technology Co., Ltd. Address: Building B, No. 5, Xinshang Road, Xinlian Community, Humen Town Dongguan City, Guangdong Province, China Email : tizonet@163.com...
- Page 2 Dongguan Taizhong Electronic Technology Co., LTD Change record Version Modified section Modified date Compile Check primary product 2022.08 .15 Yongqiang Zhang Wei Wang...
- Page 3 Dongguan Taizhong Electronic Technology Co., LTD 1.Product introduction ① The wall-mounted layout structure can be matched with any structural design, and the structure is more matched. ② Support horizontal screen/vertical screen playback, support 180-degree rotation. ③ Maximum 1080P (requirement: 1920*1080). ④...
- Page 4 Dongguan Taizhong Electronic Technology Co., LTD Contrast 1 000:1 350 cd / ㎡ brightness color 16.7M , 72% NTSC Backlight structure side entry Backlight Backlight parameters Backlight life > 50,000 hours RK3288, Quad-core ARM-A17, 1.8GHz Mali-T764 Memory DDR 2GB Motherboard parameters Built-in memory EMMC 8G operating system...
- Page 5 Dongguan Taizhong Electronic Technology Co., LTD 3,Product factory inspection GB13837<<Audio and TV broadcast connection EMI conducted interference, Receivers and related equipment radio electromagnetic radiation show disturbance characteristics Limits and Measurement Methods >> GB17626.2-2008 IEC61000-4-2 4 grade standard EMS electrostatic immunity Contact discharge 4KV Air discharge 8KV ...
- Page 6 Dongguan Taizhong Electronic Technology Co., LTD 4, Product dimension drawing and parameters...
- Page 7 Dongguan Taizhong Electronic Technology Co., LTD 5 , Product precautions There is high voltage in this machine, please do not open the case, and there are no parts inside the machine for the user to repair, professional technicians should be entrusted for maintenance. Improper operation methods may cause electric shock or fire accident.
- Page 8 Dongguan Taizhong Electronic Technology Co., LTD Warning tatement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
