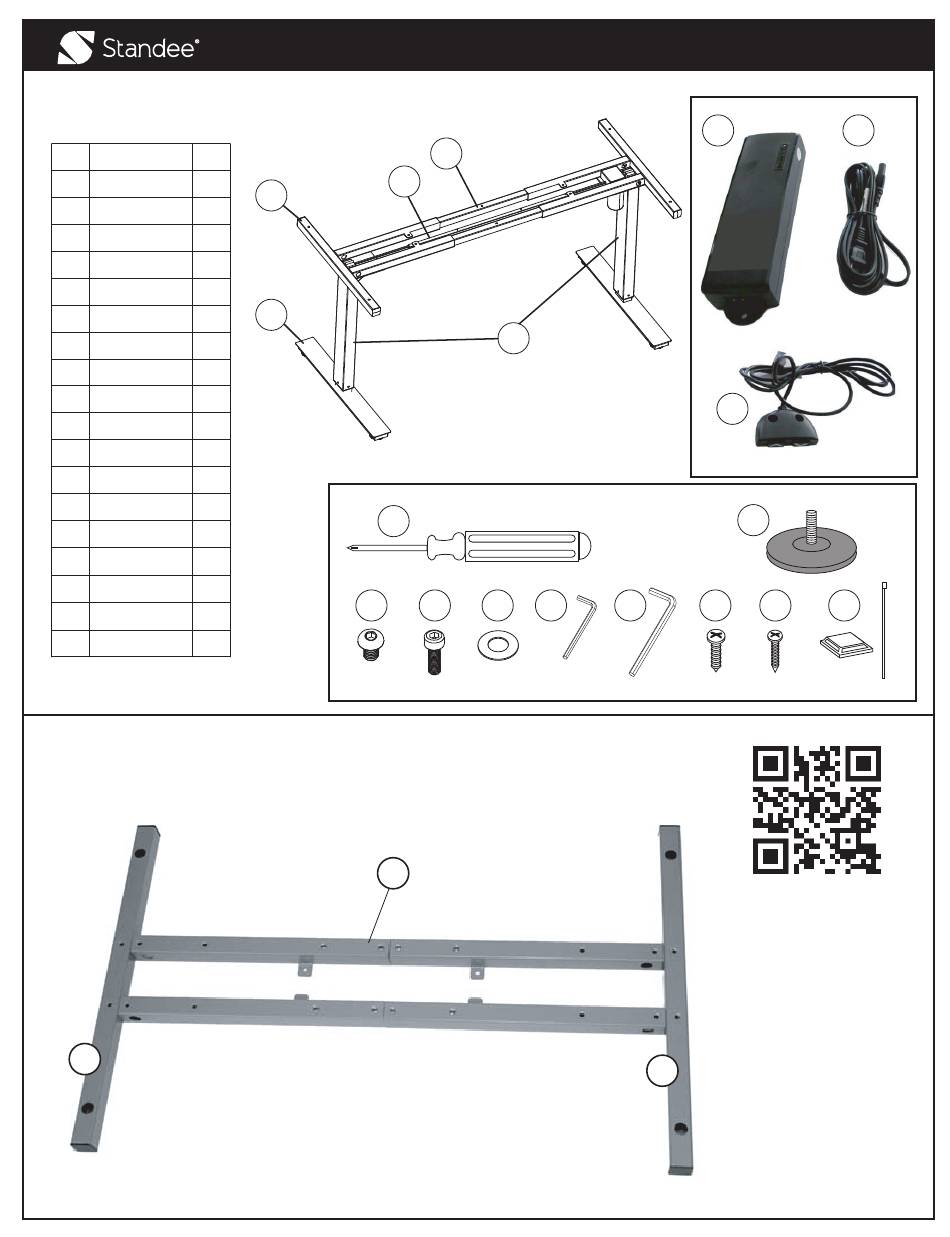

Parts and Tools list
NO.
Component Name
Qty
2
1
Top Frame
2
2
Frame Bracket
2
3
Feet
4
1
Drive Shaft (Rod)
5
2
Lifting Leg
6
12
M8*10 Screw
7
8
M6*25 Screw
8
8
Washer
9
1
2.5mm Hex Allen
1
10
5mm Hex Allen
10
2 extra screws
11
#10x5/8 screw
2
12
#8x3/4 screw
3
13
Cord tie/zip tie
4
14
Leveler
1
15
Magnetic Screw Driver
16
1
Transformer
17
1
Control Panel
18
1
Power Cord
STEP 1
Line up top frame (1) with frame bracket (2) as shown below.
2
ASSEMBLY INSTRUCTIONS #SD-ADJFR
1
4
2
3
15
6
7
1
5
9
10
8
2
www.standeeco.com
16
18
17
14
11
12
13
ASSEMBLY VIDEO
https://www.youtube.com/
watch?v=qdJ4tz04Vmc
Page 1of 7
Advertisement
Table of Contents
Summary of Contents for Standee SD-ADJFR
- Page 1 ASSEMBLY INSTRUCTIONS #SD-ADJFR www.standeeco.com Parts and Tools list Component Name Top Frame Frame Bracket Feet Drive Shaft (Rod) Lifting Leg M8*10 Screw M6*25 Screw Washer 2.5mm Hex Allen 5mm Hex Allen 2 extra screws #10x5/8 screw #8x3/4 screw Cord tie/zip tie...
- Page 2 ASSEMBLY INSTRUCTIONS #SD-ADJFR www.standeeco.com STEP 2 Attach lifting legs (5) and x with M8x10 screws (6). Do not fully tighten screws. Slight adjustments may be required later. Next, loosen center set screws with hex allen. loosen X8 STEP 3 Attach feet (3) with M6x25 screws (7) and washers (8).
- Page 3 ASSEMBLY INSTRUCTIONS #SD-ADJFR www.standeeco.com STEP 4 Lay desktop upside down with small pilot holes facing up. Put metal frame assembly on top. Pull frame apart and line up 6 mounting holes. Tighten all screws on frame to ensure holes will line up when mounting.
- Page 4 ASSEMBLY INSTRUCTIONS #SD-ADJFR www.standeeco.com STEP 6 *NOTE: Mount motor side of frame to the left or right side of desktop depending Turn frame up side down like STEP 3. on desired control panel location. Mount to desktop with #10x5/8” (11) screws in the 6 mounting holes using magnetic screwdriver (15).
- Page 5 ASSEMBLY INSTRUCTIONS #SD-ADJFR www.standeeco.com STEPS FOR SMALL 47.5” VERSION ONLY! The rod is too long to be inserted into the frame after adjustment to line up with pilot holes. Therefore, follow these steps: STEP 1-3 Same. 39 3/4” STEP 4...
- Page 6 ASSEMBLY INSTRUCTIONS #SD-ADJFR www.standeeco.com SMALL (47.5” DESKTOP) VERSION ONLY Remove set screw on opposite side of the motor because it will scratch sheet metal frame. Page 6 of 7...
- Page 7 ASSEMBLY INSTRUCTIONS #SD-ADJFR www.standeeco.com PILOT HOLE IDENTIFICATION REAR FACING CABLE TRAY* FRONT FACING CABLE TRAY* BACK TRANSFORMER RIGHT TRANSFORMER LEFT CPU SHELF RIGHT CPU SHELF LEFT FRONT CONTROL PANEL RIGHT CONTROL PANEL LEFT *FRONT FACING CABLE TRAY: OPEN FACE OF CABLE TRAY FACES FRONT OF DESK. RECOMMENDED FOR DESKS ON OPEN FLOOR.
