Summary of Contents for McDermott Light & Signal Tophat Series

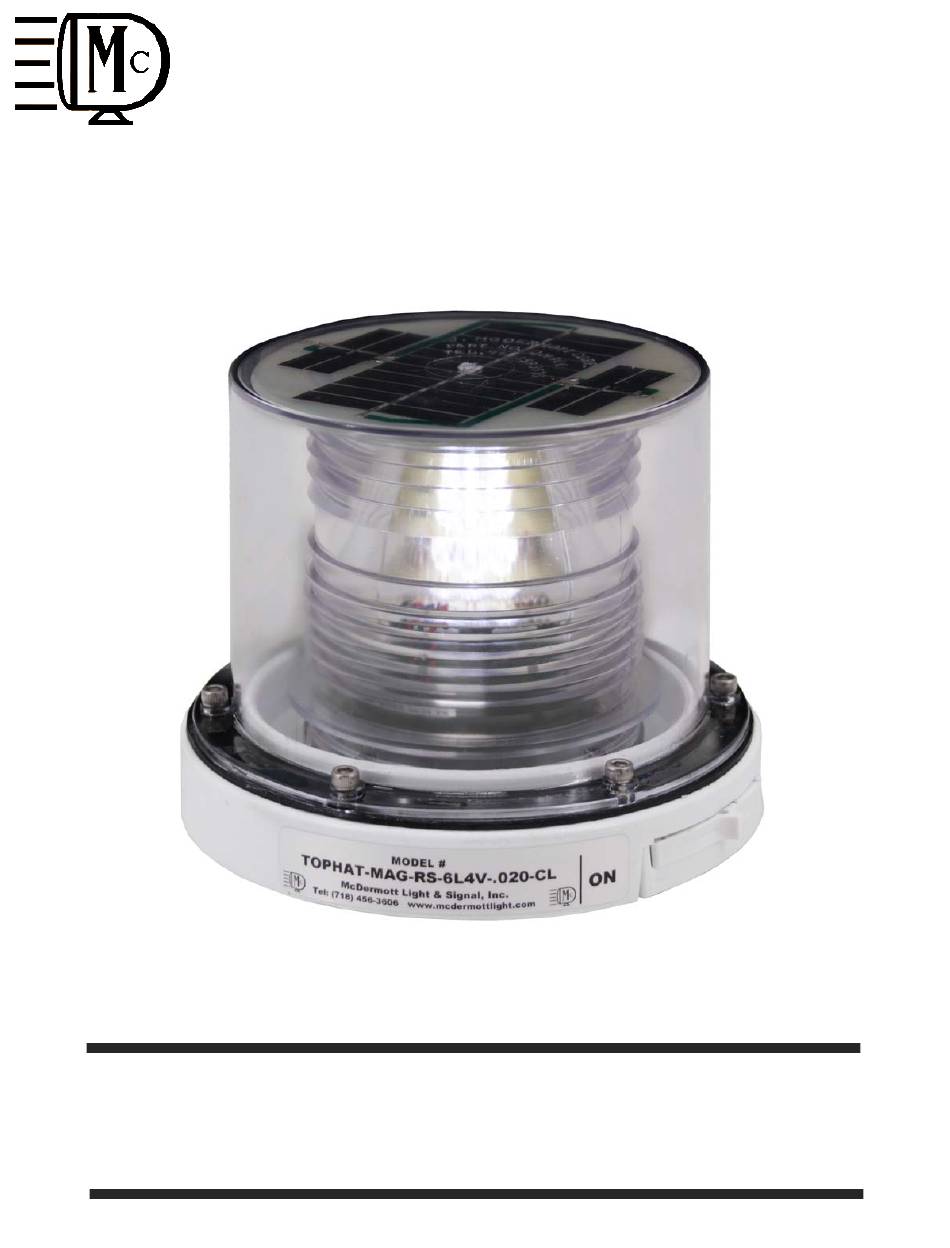

- Page 1 McDermott Light & Signal Tophat Solar Marker Light Operations Manual www.mcdermottlight.com...
- Page 2 Tophat Solar Marker Light The McDermott model TOPHAT is a rugged and waterproof solar marker light with near limitless applications for the marine industry and beyond. Operates for 10 nights without sun on full charge LEDs offered in white, green, red, blue, and amber in a steady mode or any High efficiency LEDs rated flash rate...
- Page 3 Tophat Solar Marker Light Assembly Number Part Dome Hex Screw & Nut x 6 Solar Panel & LE820 Lens O-ring Internal LED Mechanism Battery Compartment NI-MH Battery Pack Base Plate with Reed Switch Base Gasket 1.130 Operating Temperatures: 0ºC / 32ºF - 50ºC / 122ºF 1639 Stephen Street, Ridgewood, NY 11385 Tel.
-
Page 4: Installation Instructions
Tophat Solar Marker Light Installation Instructions When installing a Tophat solar light for the first time, it should be placed in the sun for 1 day to ensure the battery is charged. Note: If installation is occuring after a light has been in storage for an extended period of time, it should be placed in the sun for 3 days with the slide switch in the off position. -
Page 5: Required Tools
Tophat Solar Marker Light Maintenance Instructions for Replacing NI-MH Battery Pack Required Tools: • Wire cap crimping tool • 5/32 Allen Key • Wire crimp caps x2 • 1/8 Allen Key • Philips Screwdriver • Wirecutters Step 1: Place light on flat surface and use Allen key to loosen the 6 screws from the base. Step 2: Remove dome. -
Page 6: Troubleshooting
Tophat Solar Marker Light Troubleshooting Problem teps • Ensure slide switch is in on position and solar panel is covered or in a dimly lit room. • Move slide switch to off position and place light in sunlight for 48 hours Light will not activate •... - Page 7 Tophat Solar Marker Light TOPHAT ALWAYS-ON MODE IN- STRUCTIONS 1639 Stephen Street, Ridgewood, NY 11385 Tel. (718) 456-3606 Fax (718) 381-0229 www.mcdermottlight.com...
- Page 8 Tophat Solar Marker Light Tips on storing the McDermott Tophat Series Solar Lights If you are taking the light out of service for the season, slide the switch to the OFF position, for best results store in a location which receives some sunlight, but not absolutely required.
