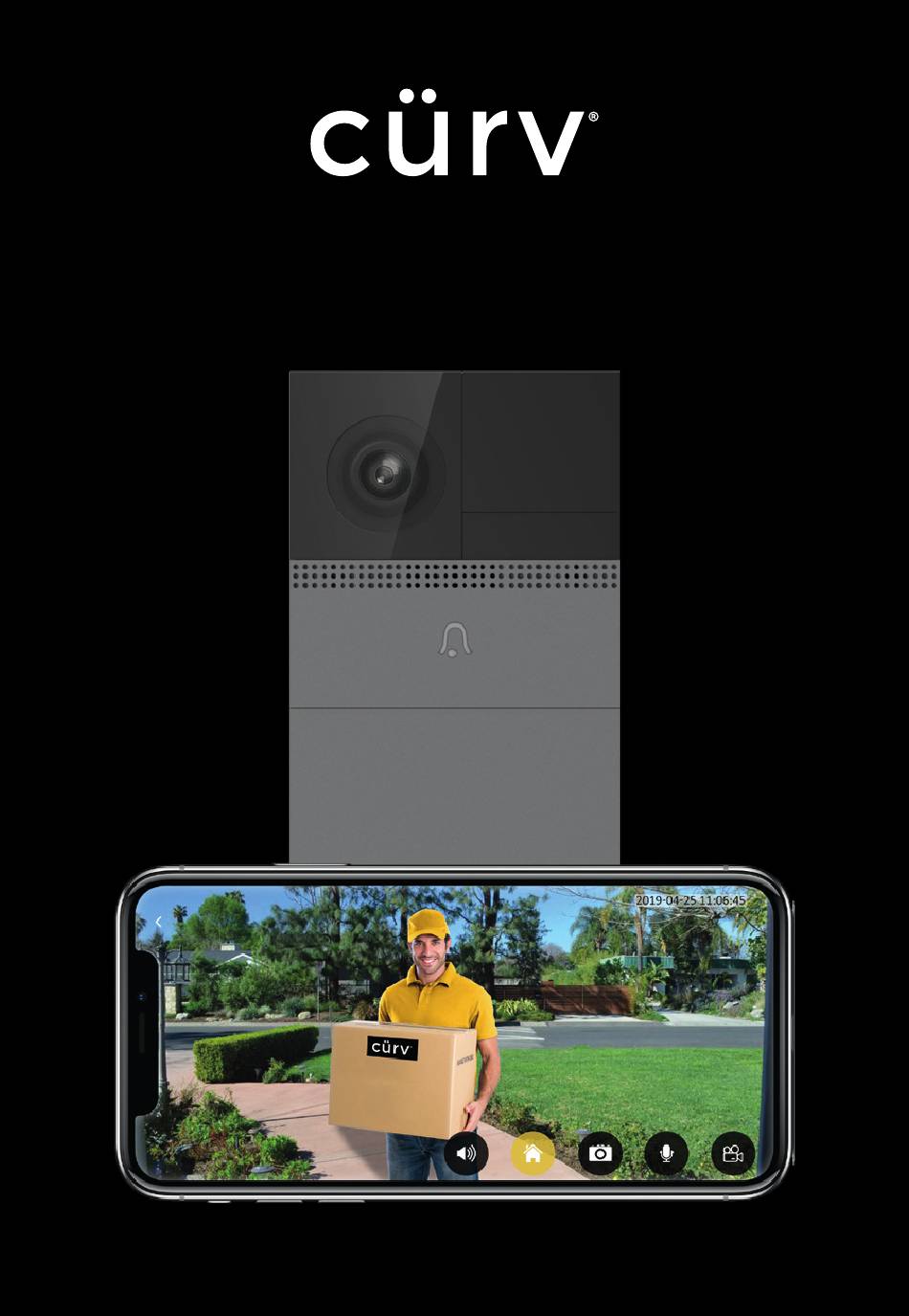

- Page 1 Curv Smart HD Doorbell Quick Start Guide CURV-DBL01...
- Page 3 功能介绍 Functions Remote wake-up The doorbell will be mode to save power you a preview App and have a remote wake-up to monitor after 3-4 Seconds. Full-duplex audio When the doorbell detects , it sen an to your phone Low battery alarm You can set a low-battery alarm threshold on your App.
- Page 4 Bell 1C Power converter Mylar Battery box Power adapter USB cable B x 4 A x 4 C x 2 D x 1 Screws(4 kinds) Wire nuts Adhesive table...
- Page 5 Microphone Status light Doorbell button Speaker SD card slot Reset 1 External power port Back of doorbell Description Power Port Doorbell button is not connected to the Status light Captures sound for your video Microphone SD card slot Supports local SD Card storage (Max.128G) Press and hold for 5 seconds with pin to reset the doorbell Reset1 (unable to unbind the bell from account)
- Page 6 Reset 2 Charging indicator Mini USB Bayonet lock Description Mini USB DC5V±10%, USB power supply Charging indicator Reset 2 reset button for 5 seconds to factory reset (it will not unbind the device) Bayonet lock Lock the battery box through bayonet lock Battery capacity 6000mAh (Two 18650 lithium-ion batteries)
- Page 7 Registration process Step 1 Open the Curv Smart App, click "Register", input a valid phone number or email address and click "Next". Step 2 Lets begin by opening the WiFi settings. Make sure you are connected to your home WiFi and your router is operating at 2.4 GHZ.
- Page 8 Getting started Step 3 Create an account and login when prompted. Press the 'ADD DEVICE' button to begin the setup. Step 4 This device is classed as a Smart Camera, select this option to continue.
- Page 9 Step 5 Hold the reset button on the device for 10 seconds until the light begins to flash Blue. This will indicate the device is in pairing mode. Step 6 Enter your WIFI details exactly as shown on your router. Please note this section is case sensitive.
- Page 10 A screen will prompt you to point your Camera towards a QR Code. Step 7 Point the camera at the QR code displayed on the screen. The Step 8 Camera will sound once pairing has begun, press the I heard a prompt button once you hear this sound.
- Page 11 Step 9 Wait for the pairing to complete then give your device a name. Press the done button and your setup is now complete.
- Page 12 Q: The device cannot be previewed properly?
- Page 13 Unlock Step 1...
- Page 14 安装 Install Installation of Power supply mode Mylar output- cable 8~24 V AC input- cable Red lead White lead Step 1: Each input-cable (AC Step 2 Remove the bottom cover and bracket of the 8~24V) connect the wires doorbell and lead the output terminal. Connect to which come out of the wall.
- Page 15 Step 5 Step 6 Fix the mounting bracket to the wall. Step 7 Step 8...
- Page 16 Install the device in battery-powered mode Step 1 Remove the doorbell bottom Step 2 Use the marker to draw 4 screw cover and bracket as shown in the holes on the surface of the wall to be figure installed Step 3 Step 4 Fix the mounting bracket to the wall...
- Page 17 Step 5: Snap the doorbell into the bracket Step 6: Align the battery box with the bayonet lock, and push the battery box into doorbell.
- Page 18 F O R M O R E G U I D E S V I S I T : S C A N T H E Q R C O D E B E L O W :...
