Summary of Contents for Heat Outdoors QHVCR

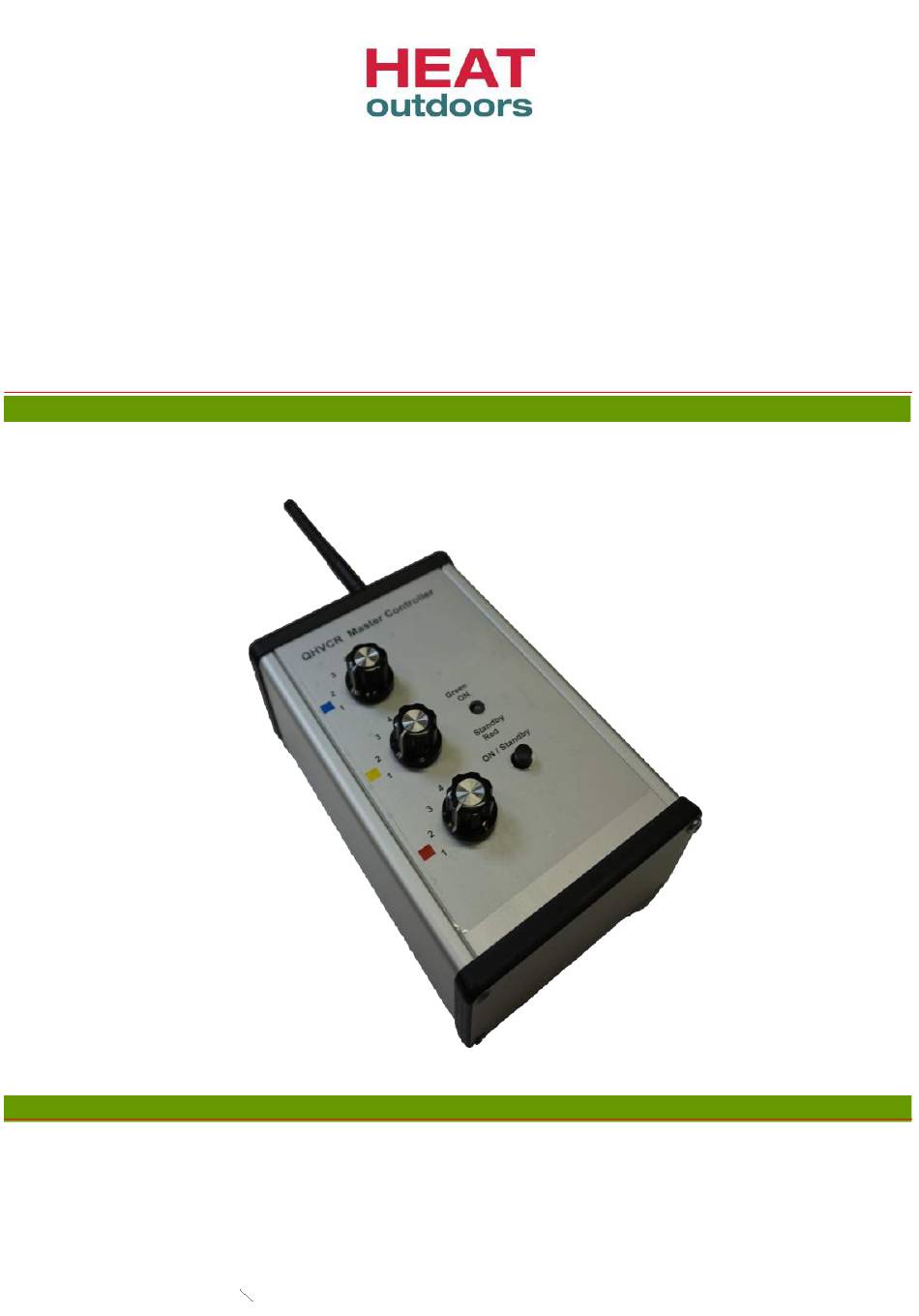

- Page 1 QHVCR 3 Zone Master Controller (Transmitter) Remote Operation Quick Start Guide & Instructions Transmission RF 433 Mhz...
- Page 2 2 & 3. 5) The QHVCR unit is powered by 3 x AAA battery's. The unit will automatically go into standby mode if the unit is inactive for more than 30 seconds. When the unit goes into standby mode all the QHCxxMR units will remain unchanged at the settings they were set at.
- Page 3 Fig. 2 Fig. 3 Pairing (programming) devices QHVCR (transmitter) and QHC18MR (receivers). 1) The Left Hand Side rotary switches (TEN) on both boards must be set the same, Fig 2. The LHS switch (TEN) is used to set the RF frequency the setting must match on both boards.
- Page 4 RoHS Technical Data Supply voltage : 4.5V DC Battery : 3 x AAA batteries Transmission : RF 433 Mhz Range : Up to 100 meters standard Antenna : 100mm standard Freq. combinations : 10 Zones : 3 standard (maximum 10) Mounting : L Brackets included –...
