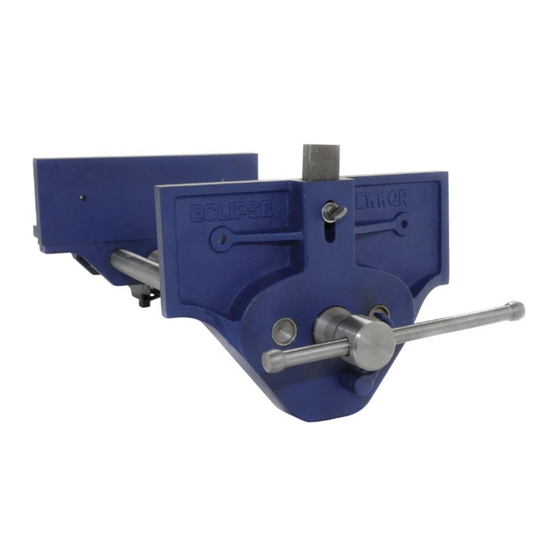

- Page 1 EC-EWWQR Mounting Woodworking Vice Manual THE TOOLS TO TRUST www.spearandjackson.com.au 1...
- Page 2 EC-EWWQR Warnings Thank you for purchasing a Eclipse Quick Released Woodworking Vice! Below is important information about your vice. WARNING 1. ALWAYS make sure bench tops are properly regularly. secured. 8. NEVER use a hammer, extension pipe, or cheater bar 2.
- Page 3 EC-EWWQR Operating & Mounting Operating Instructions: 1. To open turn the vice handle counter clockwise. This will move the front jaw away from the stationary jaw. 2. To close turn the vice handle clockwise. This will move the front jaw closer to the stationary jaw 3.
- Page 4 EC-EWWQR Mounting Cont... Mounting Style B 1. With the help of another person, hold the vice up against the workbench in the desired location. Mark the mountings holes with a pencil. 2. If the workbench is less than 2-3/8” thick, use a shim, as shown in figure 2, to adjust the workbench to 2-3/8”...
- Page 5 EC-EWWQR Maintenance Maintaining your Vice 1. Apply dry graphite or silicon based lubricant to the main screw to keep it operating smoothly and prevents any sawdust from building up in the threads. 2. If saw dust does build up on the vice threads, use a blade or bit cleaner to remove the built up dust.
- Page 6 EC-EWWQR EC-EWWQR MANUAL & SERVICE GUIDE Warnings These products are guaranteed against defects in manufacturing, subject to wear and tear and the provision of reasonable care and maintenance. This does not affect your statutory rights. CUSTOMER SERVICE CENTRE Spear & Jackson Australia PTY LTD...
