- Page 1 Plastic Cable Weight Control and Pump Switches USER GUIDE PART NUMBER: 2000275...
-
Page 2: Table Of Contents
Plastic Cable Weight - USER GUIDE Contents Introduction ................................. 3 Safety Guidelines ..............................3 Product Included ..............................4 Features ................................. 5 Installation .................................. 6 Installing Float Switch Cable ..........................6, 7 Tightening Cable Clip ............................. 7 Installing Float Switch Cable in Application Area ....................8 Testing .................................. -
Page 3: Introduction
4. DO NOT use this product with or near flammable liquids. 5. DO NOT install this product in locations classified as hazardous or in explosive atmospheres as defined by any applicable electrical safety code. Alderon Industries™ - Leading Edge Control Products | 3... -
Page 4: Product Included

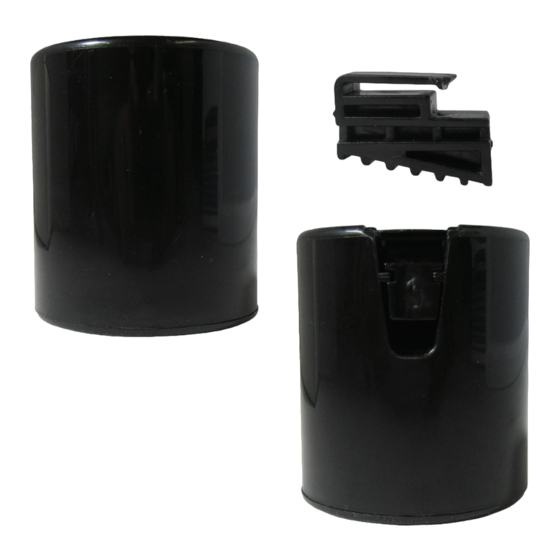

The plastic cable weight is used as a pivot point for the desired activation level of the float switch. (2) Plastic Cable Clip The plastic cable clip secures the float switch cable in place. 4 | Alderon Industries™ - Leading Edge Control Products... -
Page 5: Features
(3) Cable Clip - Gripper teeth on clip secures float switch cable in place at the desired tether length for activation or pumping ranges. Easy installation and adjustments, no tools required. Alderon Industries™ - Leading Edge Control Products | 5... -
Page 6: Installation
Control Switches (Narrow Angle) Minimum recommended tether length is 3.5 inches Pump Switches (Wide Angle) Minimum recommended tether length is 3.5 inches Tether Length 6 | Alderon Industries™ - Leading Edge Control Products... -
Page 7: Tightening Cable Clip
(control switches) or pumping range (pump switches). 3rd Notch = 18 AWG 2nd Notch = 16 AWG 1st Notch = 14 AWG (14 AWG example) Tabs on cable clip clicks into notch Alderon Industries™ - Leading Edge Control Products | 7... -
Page 8: Installing Float Switch Cable In Application Area
Check the installation of the float switch by cycling the float on and off to ensure proper system operation. Activation Level Activation Range Deactivation Level (narrow angle control switch, normally open example) 8 | Alderon Industries™ - Leading Edge Control Products... -
Page 9: General Operation
▪ Activates 45° below horizontal ▪ Deactivates 15° above horizontal Normally Open - High Level Alarms or Pump Down (empty) applications Normally Closed - Low Level Alarms or Pump Up (fill) applications (normally open example) Alderon Industries™ - Leading Edge Control Products | 9... -
Page 10: Wide Angle Control Or Pump Switch Information
Middle Float = Start Pump Bottom Float = Stop Pump Normally Closed (fill): Control Switch “Start” Top Float = Stop Pump Middle Float = Start Pump Bottom Float = Low Alarm Control Switch “Stop” 10 | Alderon Industries™ - Leading Edge Control Products... -
Page 11: Troubleshooting
Incorrect installation of float switch Refer to instructions that came with the float switch for recommended tether length guides, mounting location, total operating angle, and activation levels for normal operation Alderon Industries™ - Leading Edge Control Products | 11... -
Page 12: Specifications
18 AWG to 14 AWG type cable sizes (diameter 0.28 - 0.39 inches) Operating Temperature: For use in liquids up to 200° F Diameter: 2.5 inches Height: 2.9 inches Weight: 1.5 lb 12 | Alderon Industries™ - Leading Edge Control Products... -
Page 13: Warranty Information
Three-Year Limited Warranty - Standard Products LIMITED WARRANTY: Subject to the conditions of this Three-Year Limited Warranty, Alderon Industries, LLC (“Alderon”) war- rants to the original user or consumer of an Alderon product (the “Product”) that, for a period of three (3) years from the date of manufacture, the Product will be free from defects in materials and workmanship under normal use and service, and provided the Product is installed, operated and maintained in accordance with instructions supplied by Alderon. - Page 14 Plastic Cable Weight - USER GUIDE This page intentionally left blank 14 | Alderon Industries™ - Leading Edge Control Products...
- Page 15 Plastic Cable Weight - USER GUIDE This page intentionally left blank Alderon Industries™ - Leading Edge Control Products | 15...
-
Page 16: Company Information
UG00010_Rev04_Plastic Cable Weight | August 27, 2019 11:45 AM Company Location: 151 16th Street South, Hawley, MN 56549 Mailing Address: PO Box 827, Hawley, MN 56549 Main Office Phone: 218.483.3034 Website: alderonind.com General Inquiry Email: info@alderonind.com Submit New Orders: orders@alderonind.com...
