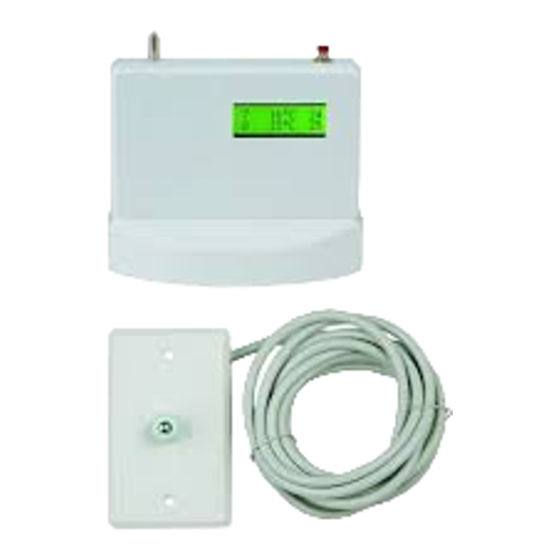

Temperange® Dual Temperature Alarm - WSE29

General

Temperange® can be equipped with two sensors, i.e. a local and a remote sensor, to constantly
monitor the temperature in two separate environments. When the temperature reaches the pre-set
safe temperature range by falling too low or rising too high, it will sound an alarm, and in the
meantime send out a signal to alarm panel.
Programming
Volume
button
button

High and low limit setting

The first line on the display shows local Low and High temperature limit, while the second line
-
does it for the remote sensor.
To set High or Low temperature limit, press and hold the Programming button for 3 seconds. A
-
cursor appears on the screen and now it is in setting mode. Use the Programming button to
decrease the temperature or Volume button for the increase.
Use the Red reset button on the top of the unit to move the cursor.
-
To exit setting mode, keep pressing the Red reset button till the cycle is completed and the
-
cursor disappears.

Audible alarm

When the temperature reaches the pre-set limit, the alarm goes off.
-
To turn off the alarm, press the Red reset button; or the alarm will automatically stop after 2
-
minutes.
To adjust the alarm volume, press the Volume button to increase or decrease the volume.
-
To mute the audible alarm, adjust the alarm volume to the minimum (one bar), or unplug the
-
Piezo which is located underneath the display.
Low limit
Relay1 Low
Relay2 High
temperature
temperature
Red reset
button
Local sensor (high limit)
Remote sensor (high limit)
Input
Remote sensor
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WSE29 and is the answer not in the manual?

Questions and answers

Summary of Contents for Temperange WSE29

  • Page 1 Temperange® Dual Temperature Alarm - WSE29 General Temperange® can be equipped with two sensors, i.e. a local and a remote sensor, to constantly monitor the temperature in two separate environments. When the temperature reaches the pre-set safe temperature range by falling too low or rising too high, it will sound an alarm, and in the meantime send out a signal to alarm panel.
  • Page 2 Two alarm relays: relay 1 – low temperature; relay 2 – high temperature Relay rating: SPDT, 1A 24VDC/120VAC Audible alarm: adjustable 0- 90dB Dimensions: 130mm x 90mm x 35mm Remote sensor (WSE29-Re) Temperature range: -40 - 60°C The probe is sealed – water proof 5m wire...
