BASIC SPECIFICATION:
Input voltage: 240V AC 50HZ
Input current: 0.8A RMS max.
Cut off voltage: 7.4V, 14.4V or 14.7V
Charging current: 3.8A or 0.8A
Operating temperature: -20°C to +50°C
Battery type: all 12V electrolyte battery types (lead, AGM, maintenance-free, "Marine Deep Cycle"etc.)
Battery capacity: 4 Ah - 120 Ah
Dimensions: 18 x 6 x 4.3 cm (l/w/h)
Weight: 0.47 kg
Marketed by:
AUTOHAUS PRODUCTS NZ
71 Adams Drive Pukekohe
Auckland, New Zealand.
Ph: 0800 473 743
www.autohausnz.com
Advertisement
Table of Contents

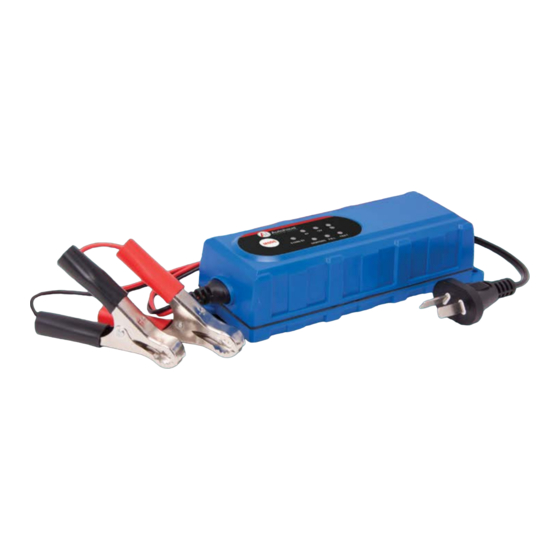

Summary of Contents for Autohaus AHBC-3.8i
- Page 1 Battery type: all 12V electrolyte battery types (lead, AGM, maintenance-free, “Marine Deep Cycle”etc.) Battery capacity: 4 Ah - 120 Ah Dimensions: 18 x 6 x 4.3 cm (l/w/h) Weight: 0.47 kg Marketed by: AUTOHAUS PRODUCTS NZ 71 Adams Drive Pukekohe Auckland, New Zealand. Ph: 0800 473 743 www.autohausnz.com...

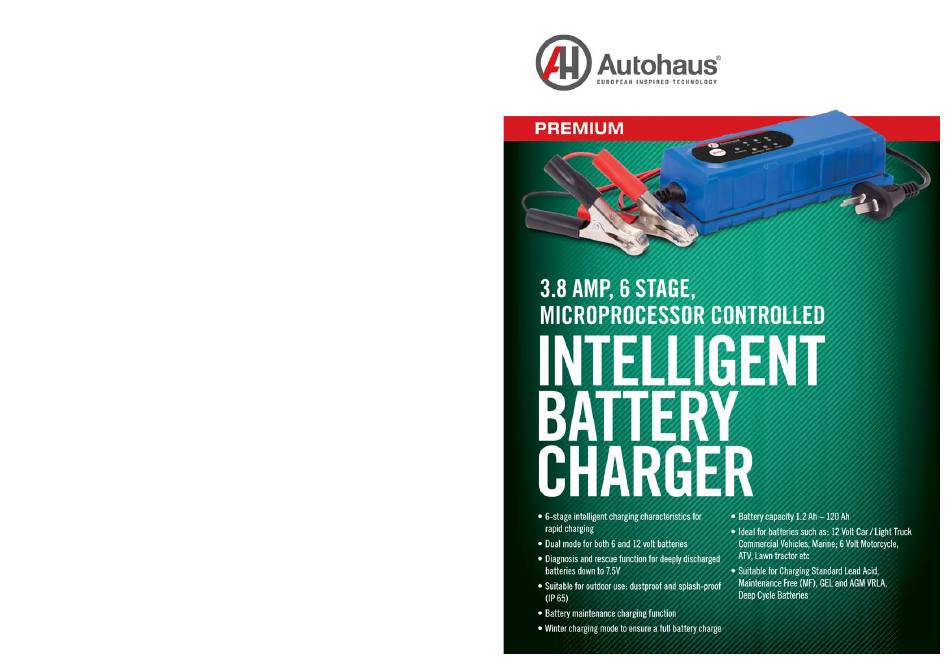

- Page 2 MODEL AHBC-3.8i BATTERY CHARGER CHARGING OPERATION INSTRUCTION MANUAL 1. As soon as the AC power cord is plugged in an AC socket, the Stand-By LED (5) lights up to indicate device operation status. The battery charger detects automatically whether a 6/12V battery is connected. This process takes approx.
- Page 3 DURING USE DANGER: BATTERIES CONTAIN HIGHLY CORROSIVE SUBSTANCES WHICH MAY RESULT IN SERIOUS INJURY SHOULD YOU COME INTO CONTACT WITH THEM. TO HELP REDUCE THIS RISK: A. BATTERY IN A VEHICLE • Wear personal protective clothing and safety glasses FOLLOW THESE INSTRUCTIONS IF THE BATTERY IS INSTALLED IN A VEHICLE. SPARKS IN THE •...
- Page 4 OPERATING INSTRUCTIONS . Wear personal protective clothing and safety glasses 2. If necessary, remove the battery to be charged from the vehicle. If removing the battery always disconnect the earth cable from the battery first. 3. When charging the battery, make sure the room is ventilated properly. PRODUCT DIAGRAM 4.
