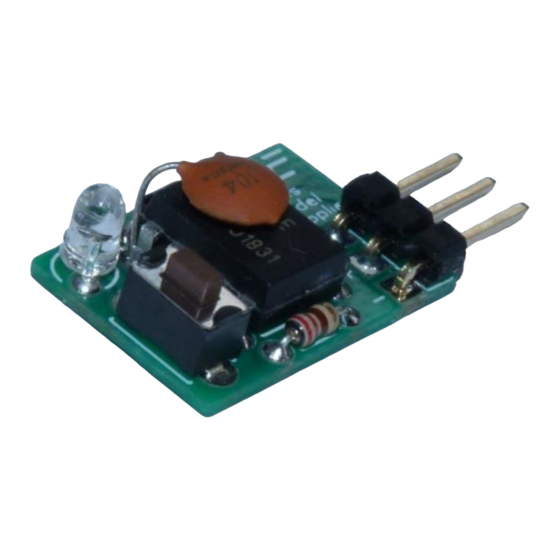

E-ZEE ECL mini – Electric Control Line Timer
E-ZEE ECL mini – Electric Control Line Timer
Instruction videos are available on You Tube –
Video 1
Introduction
Video 2
Setting Flight Duration
Video 3
Setting Motor Speed
Video 4
Setting Start Delay
Exclusive Stockists:-
Dens Model Supplies
3 Victoria & Albert Cottages Beatrice
Avenue
East Cowes
Isle of Wight
PO32 6LN
UK
01983 294182
info@densmodelsupplies.co.uk
Document Version: 1.03 27
The ECLm is an entry level timer that still
offers enough features to make it the ideal
choice for most ECL sports models.
Motor power and rund u r a t i o n
adjustable -fixed motor ramp up and down
periods, end of flight warnings and a user
selectable option of a fixed 30 sec start
delay to allow solo operation are all
included as standard
https://youtu.be/SKAXKxXnsiY
https://youtu.be/cqKGNAaUtbc
https://youtu.be/CFniQuFf4Ik
https://youtu.be/HbaTdlp2ejQ
Stevens AeroModel
26405 Judge Orr. Road Calhan
CO
80808
USA
719-387-4187
sales@stevensaero.com
1
1
th
Feb 2019
a r e
Advertisement
Summary of Contents for Forge Electronics E-ZEE ECL mini
- Page 1 E-ZEE ECL mini – Electric Control Line Timer Document Version: 1.03 27 Feb 2019 E-ZEE ECL mini – Electric Control Line Timer The ECLm is an entry level timer that still offers enough features to make it the ideal choice for most ECL sports models.
- Page 2 E-ZEE ECL mini – Electric Control Line Timer Document Version: 1.03 27 Feb 2019 INTRODUCTION Electric Control Line (ECL) is clean and quiet, ideal for the 21 century environment. The huge Electric RC market ensures that components such as motors and ESC’s for Control Line are available at very attractive prices and are totally reliable.
-
Page 3: Installation
E-ZEE ECL mini – Electric Control Line Timer Document Version: 1.03 27 Feb 2019 INSTALLATION This image shows system components, note that power does not flow through the timer. The timer is fed from BEC (Battery Eliminator Circuit) provided by the ESC and in turn sends signals to the ESC. - Page 4 E-ZEE ECL mini – Electric Control Line Timer Document Version: 1.03 27 Feb 2019 Step 1: Standby Mode Connect the battery; there is a five second delay at power up. Most ESC’s will enter their setup routine if they detect full throttle at start. Thus without the enforced five second delay, trying to start a flight immediately after power up could cause the ESC to enter its set-up routine.
-
Page 5: Changing The Timer Settings
E-ZEE ECL mini – Electric Control Line Timer Document Version: 1.03 27 Feb 2019 CHANGING THE TIMER SETTINGS The timer has two adjustable features that govern the flight and a third option to toggle the start delay feature on/off - these are shown in the chart below:-... - Page 6 E-ZEE ECL mini – Electric Control Line Timer Document Version: 1.03 27 Feb 2019 SET MOTOR RUN Go to the two sec feature selection period. 1. Select ‘motor run’ duration by making a single button press/release 2. Two secs after the button release the dimly glowing LED goes OFF to signal the start of a two sec data entry period for setting the motor run.
- Page 7 E-ZEE ECL mini – Electric Control Line Timer Document Version: 1.03 27 Feb 2019 SET MOTOR POWER This is performed with the motor running so the user must be prepared to safely restrain the model and take care to avoid contact with the propeller at all times.
- Page 8 E-ZEE ECL mini – Electric Control Line Timer Document Version: 1.03 27 Feb 2019 SAFETY The motor must be considered ‘live’ whenever the propulsion battery is connected. careful not to inadvertently press the start button during handling the model as the prop may begin to turn as soon as the button is pressed.
