Aquamatic TAC-3000 Quick Start Manual

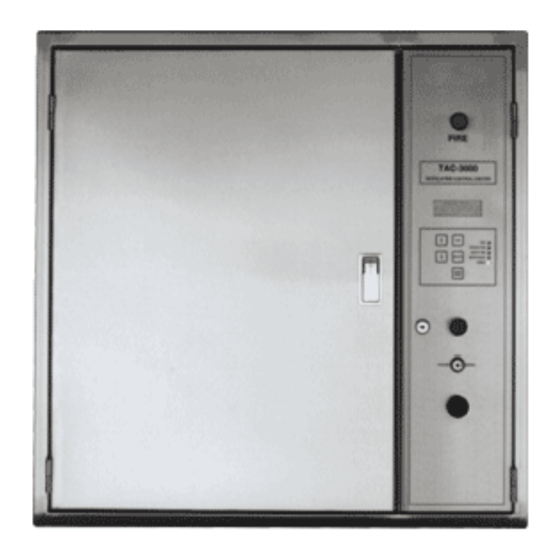

AquaMatic's TAC-3000 is a solid state, state-of-the-art control panel which provides the ultimate controlled internal cleaning
system for the water wash ventilation.
The TAC-3000 Control Panel offers three convenient modes of operation: program, automatic and manual.
The AquaMatic TAC-3000 is user friendly, programmed via the four line, liquid crystal display allowing the operator to program
"ON" and "OFF" times for supply and exhaust fans. Up to five wash zones and select fan operation during fire can be selected.
Standard features provide control of the shunt trip breaker, the building alarm system and an optional electric gas valve control.
Door mounted indicator lights show the status of supply and exhaust fans, fire condition, water valve and AC power.
A key switch is used to select the "Program", "Automatic" or "Manual" mode and denies access to unauthorized users. The
touch pad is water proof, providing exceptional durability and longevity. When a function is selected, a tone is generated to
provide feedback while programming.

FEATURES

ETL Listed Product
User Friendly, Menu Driven Programming
Internal RAM Battery
Program Key Switch
Manual Mode
User Selected Fan Controls
24 Hour 7 Day Program for 5 Zones
24 Hour 7 Day Program Fan Controls
Programmable Holiday Schedule
Audible Fire Alarm, Indicator Light and Display Message
Shunt Trip Breaker Output
Building Fire Panel Contact
Plug in Solid State Relays
On Board Circuit Breakers
Liquid Crystal Display
PIEZO Electronic Key Pad
Plug in Connectors
Fire, Fan, Zone, Water and Power Outage Indicator Lights
Manual Override Switches
Maintenance Switch
OPTIONS
Manual Lighted Fire Condition Button
Gas Valve Control
Auxiliary Output
Low Soap Level Indicator
Cold Water Mist
Additional Zone Control
