Warranty

This product is covered under a 12 months warranty period. Kindly

refer to the warranty policy terms and conditions available on Camec

website.

For further information or assistance, please contact our National

Customer Support Team or visit Camec website.

1. Australia on 1300 422 632 or camec.com.au

2. New Zealand on 09 257 2419 or camec.co.nz

For any retail or trade enquiries, please contact our Sales office.

CAMEC VICTORIA

47-63 Remington Drive

Dandenong South VIC 3175

23-27 Freight Drive

Somerton VIC 3062

Phone: 1300 422 632

CAMEC NEW SOUTH WALES

Units 2 & 3 No. 1 Koonya Circuit

Caringbah NSW 2229

Phone: (02) 9525 2588

CAMEC WESTERN AUSTRALIA

190 Welshpool Road

Welshpool WA 6106

Phone: (08) 9351 0044

CAMEC NEW ZEALAND

44 Montgomerie Road

Mangere Auckland 2022

Phone: (09) 2572417

CAMEC QUEENSLAND

Building 3 Archerfield Industrial

Park Cnr Kerry & Beaudesert

Road Archerfield QLD 4108

Phone: (07) 3710 9000

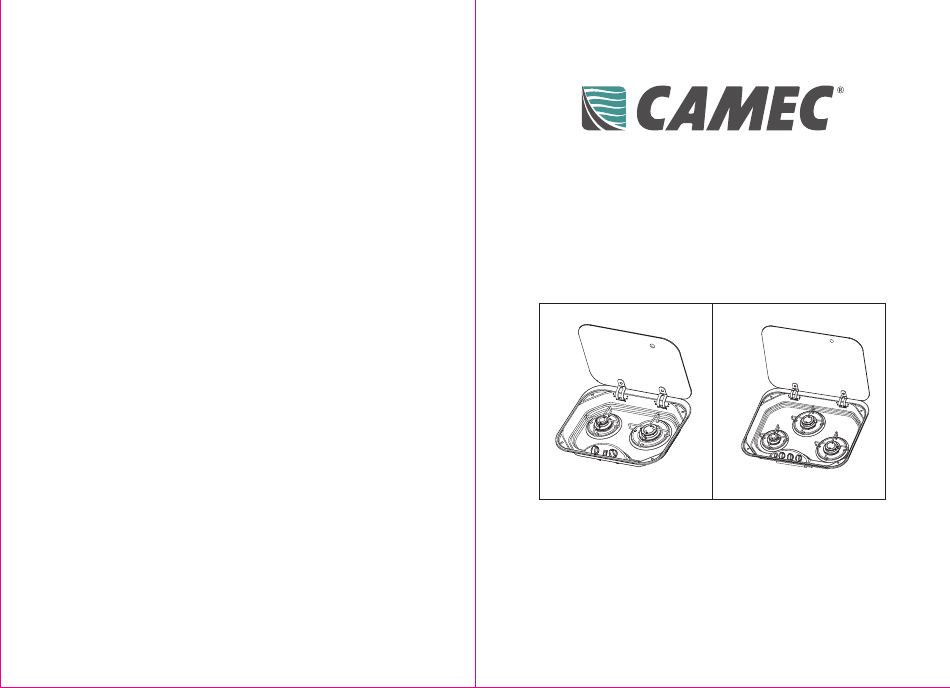

RV GAS HOB WITH GLASS LID

Installation, Operation and Servicing Instructions

Part No. 051859

NOTE: Please read this manual carefully before installing and

using this appliance.

Part No. 051860

Table of Contents

Need help?

Do you have a question about the 051859 and is the answer not in the manual?

Questions and answers

Summary of Contents for Camec 051859

Page 1 Warranty This product is covered under a 12 months warranty period. Kindly refer to the warranty policy terms and conditions available on Camec website. For further information or assistance, please contact our National Customer Support Team or visit Camec website.
Page 2: Table Of Contents
Table of Contents General Safety Instructions……………………………..……… Safety Warnings………………………………………….……... Installation……………………………………….………………. Installation Location……………………………………………. Built-in Cut-Out Dimensions…………………..………………. Gas Connection………………………………………………… Electrical Connection…………………………………………... Technical Data and Specification……………………………… Control Knob and Switch………………………………………. Nominal Gas Consumption…………………………………….. Test Point………………………………………………………… Operating Use…………………………………………………… Electronic Ignition………………………………………..……… Burner Selection………………………………………………..Maintenance and Cleaning…………………………………….. Servicing…………………...……………………………………..
Page 3: General Safety Instructions
General Safety Instructions The 2 and 3 burner gas hobs are designed in accordance to AS/NZS 5263 for the purpose of cooking food in recreational vehicles i.e. caravans, camper trailers, motorhomes etc. Any other use shall be considered improper. The manufacturer does not assume any liability for damages or injuries due to incorrect installation and/or improper use.
Page 4: Safety Warnings
Safety Warnings WARNING: DO NOT spray aerosols in the vicinity of this appliance while it is in operation. WARNING: DO NOT use or store flammable material in or near this appliance. WARNING: DO NOT use this appliance as a space heater. WARNING: DO NOT place articles on or against this appliance.
Page 5 WARNING: Remove all transit protection prior to usage WARNING: DO NOT obstruct the flow of combustion and ventilation air. All gas burning appliances consume air (oxygen). WARNING: DO NOT use this appliance in unventilated structures. Make sure there is an open window or designated ventilation opening to provide air supply.
Page 6: Installation
concerning use of the appliance by a person responsible for their safety. WARNING: Children should not be permitted to operate this appliance without close adult supervision. CAUTION: Keep appliance clean and properly adjusted. Schedule for yearly inspection and servicing by an authorized person.
Page 7 data before connecting the appliance to the gas cylinder. The pressure regulator to be used between the cylinder and the appliance must comply with the categories indicated in the table below. OUTPUT OF THE REGULATOR U-LPG 2.75 2.5 Kg/h CAUTION: In order to avoid possible accidents, it is essential for the appliance to be installed according to the instructions contained in this manual.
Page 8: Installation Location
The gas connection systems and the installation rooms must be  suitable and meet safety standards. Make sure the power is disconnected to avoid risk of installer  being electrocuted. Make sure the appliance is installed in an environment with high ...
Page 9: Built-In Cut-Out Dimensions
After installation, the top of the cooking vessel support will be  located 15mm below the bench top surface. The installer MUST test the operation of the appliance after  installation to ensure satisfactory operation. Built-in Cut Out Dimensions The cabinet must be mounted on a support structure, and the ...
Page 10: Gas Connection
2 Burner Model 3 Burner Model Part No. 051859 Part No. 051860 Fasten the gas hob to the cabinet with the fixing screws provided.  Gas Connection The gas supply pipework must be installed in accordance with AS/NZS 5601.2. The gas pipework must not be subject to twisting, pulling or other stresses.
Page 11: Electrical Connection
Gas inlet location At the front underside of the hob, (2 Burner Model): 110mm from the right-hand side At the front underside of the hob, Gas inlet location 180mm from the right-hand side. (3 Burner Model): Flexible hose connection can be used with the following conditions: The hose must be accessible for inspection, it cannot be hidden ...
Page 12: Technical Data And Specification
Technical Data and Specifications Control Knob and Switches Position Description Switch for electronic ignition Maximum flame adjustment Gas turned off Minimum flame adjustment Nominal Gas Consumption Injector Size Consumption Auxiliary burner 0.54mm 3.6MJ/h Semi Rapid burner 0.70mm 6.6MJ/h Test Point The test point is supplied with the gas hob.
Page 13: Operating Use
Operating Use Electronic ignition To start the ignition, fully press the electronic ignition switch and control knob at the same time, then gradually turn the control knob from position 3 to 2. Once the burner has ignited, continue to hold the knob for 5 to 10 seconds before release.
Page 14: Burner Selection
Burner Selection The flame must not spread over the edges of the cookware. Place the cookware centrally on the burner, so that it is stable on the pan support. BURNER COOKWARE DIAMETER AUXILIARY from 60 mm to 160 mm SEMIRAPID from 160 mm to 220 mm The accessible parts may be hot during and immediately after use;...
Page 15: Servicing
Servicing Annual servicing and inspection must be conducted by authorised persons. Ensure that the gas and electrical supplies are disconnected prior to any servicing work. Test this appliance after completion of any servicing work. If you encounter any issues with this appliance, please follow the quick check instructions below.
