Summary of Contents for Halo ELITE 1B

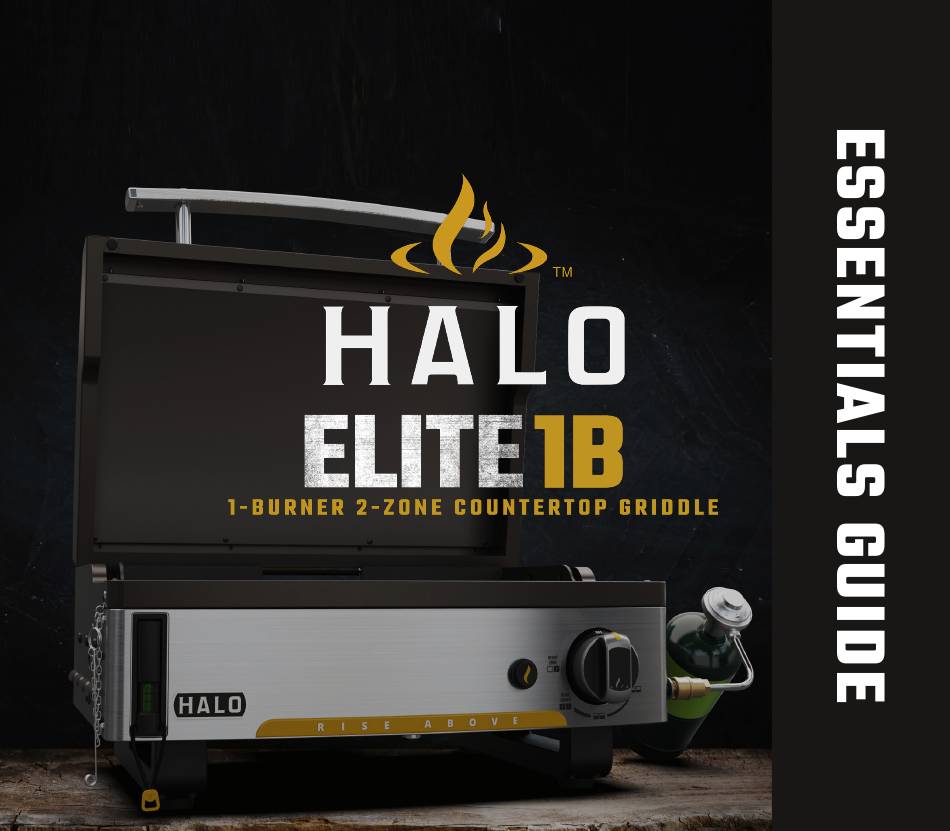

- Page 2 TABLE OF CONTENTS MEET THE ELITE 1-BURNER 2-ZONE OUTDOOR GRIDDLE FEATURES OF YOUR ELITE 1B TURN UP THE HEAT WITH DUAL COOKING ZONES...
-
Page 3: Table Of Contents
OWNERS MANUAL CSA - EN PRODUCT RECORD CONNECTING 1 LB. CYLINDER CONNECTING 20 LBS. TANK LIGHTING INSTRUCTIONS GREASE CUP POSITION SEASONING YOUR GRIDDLE CARING FOR YOUR ELITE 1B TROUBLESHOOTING ELITE 1B PARTS LIST ASSEMBLED DIMENSIONS FIVE (5) YEAR LIMITED WARRANTY... - Page 4 MEET THE Taking your outdoor cooking skills above and beyond never felt so simple. With the Elite 1B, enjoy true wall to wall cooking with the industry’s first and only dual zone, single burner outdoor griddle. Propane fueled and with features like a unique wind proof design, rear grease disposal and spatula clean off, when it comes to innovation and an elite outdoor cooking experience, we’ve got you covered.
- Page 6 FEATURES OF YOUR SEASON YOUR GRIDDLE IN 30 MINUTES Season the Elite 1B's 273 in total cooking surface within 30 minutes. EASY LIFT OFF Attach the handles to easily remove the griddle top. WALL TO WALL COOKING SURFACE No more cold zones! WIND-PROOF DESIGN N o gap wi t h o u r i nse t gri dd l e su rface.
- Page 7 QUICK WARM UP TIME Rea dy to c ook i n 10 m in u tes. GREASE MANAGEMENT SYSTEM Extra la rge c apaci ty grea se cu p i nclu ded. BUILT IN UTENSIL CLEAN OFF Cl ea n u ten sil s as you cook. PROPANE FUELED Designed to connect a 1 lb or a 20 lb adjustable...
- Page 8 WITH DUAL COOKING ZONES ZONE 1...
- Page 9 The Elite 1B Outdoor Griddle has two zones within one burner, designed to give you the benefit of precise control over your cooking surface. Independently operate each zone and control cooking temperatures for an elevated, wall to wall cooking experience — no more cold zones!
-
Page 10: Owners Manual
O W N E R S M A N U A L M O D E L N O : H Z - 1 0 0 7 - A N A S C A N F O R Product Registration Online Owner’s Guide Assembly Videos... - Page 11 Only install the type proceeding. Find a large, clean area in which of dust cap on the cylinder valve outlet that is to assemble your Halo 2-Zone Countertop Do not leave the appliance unattended. Keep provided with the cylinder valve. Other types of Griddle.
- Page 12 1192, and CSA Z240 RV Series, Recreational Vehicle Code, as applicable. • Turn off Halo 2-Zone Countertop Griddle immediately, If the regulator • Use Halo 2-Zone Countertop Griddle is not for use in or on recreational frosts,. This indicates a problem with the LP cylinder, and it should not vehicles and/or boats.
-
Page 13: Csa - En
Follow instructions below to clean and/or replace burner/or replace foods should never come into contact with raw food as this causes electrode assembly or if you have trouble igniting your Use Halo 2-Zone harmful bacteria to contaminate the cooked food. -
Page 14: Product Record
160°F/71°C and be brown in the middle with no pink juices. Beef, veal and lamb steaks, roasts and chops can be cooked to 145°F/63°C. All cuts OUR WEBSITE AT halo-pg.com. of pork should reach 160°F/71°C. NEVER partially grill meat or poultry and finish cooking later. Cook food completely to destroy harmful bacteria.. -
Page 15: Connecting 1 Lb. Cylinder
CONNECTING 1 LB. CYLINDER To perform a leak test of your gas connections, mix a 50/50 solution of soap and water and brush around regulator and other gas NOTICE: connections. If growing bubbles appear, there is a leak. Re-tighten connections. If leaks cannot be stopped do not try to repair. Call for replacement parts at 1-833-572-1688. - Page 16 DISMANTLING DISPOSABLE PROPANE CYLINDER 1. Turn control knob to OFF position and make sure all flames are extinguished then release the coupling at the quick connect body to release the insert. 2. Make sure your griddle is turned OFF and cooled down.
-
Page 17: Connecting 20 Lbs. Tank
CONNECTING 20 LBS. TANK WARNING The LP tank used with this Flat Top Griddle must meet the following requirements: • Use appliance only with LP (propane) gas and the regulator/valve assembly supplied. • Installation must conform with local codes, or in their absence with National Fuel Gas Code, NFPA 54/ANSI Z223.1. Handling and storage of LP cylinders must conform to LP Gas Code NFPA/ANSI 58. - Page 18 HOW TO SET REGULATOR SETTING • Pull back the spring-loaded coupling to release regulator cap to achieve 8.5" water column. • Pull back the spring-loaded coupling then push the regulator cap firmly and release. The regulator cap will snap in and lock in place to reset the regulator to 11" water column. LEAK TEST PROCEDURE 1.
- Page 19 9. Clean and inspect the hose before each use of the appliance. If there is evidence of abrasion, wear, cuts or leaks, the hose must be replaced prior to the appliance being put into operation. See product tag for hose & regulator information.
-
Page 20: Lighting Instructions
LIGHTING INSTRUCTIONS LIGHTING THE PIZZA OVEN Symbol Represents Burner being lit 1. Open lid during lighting. Symbol Represents Burner already lit 2. Push and turn any control knob to Press electronic igniter and hold for 3-5 Right Burner Zone on HIGH setting seconds then turn to Dual Zones on HIGH setting 3. - Page 21 MATCH LIGHTING INSTRUCTIONS 1. Open Lid 2. Make sure the control knob is in the OFF position (Push control knob down and turn clockwise to make sure that it is in the OFF position.) 3. Light burner with match lighting stick or with an 11”...
-
Page 22: Grease Cup Position
GREASE CUP POSITION POSITIONING THE GREASE CUP Make sure the lip of grease cup is positioned under the griddle drip ledge when installing the grease cup to avoid grease leakage. Check the grease cup often and clean out after each use. WARNING Make sure the griddle is cooled before remove grease cup... -
Page 23: Seasoning Your Griddle
SEASONING YOUR GRIDDLE INITIAL GRIDDLE SEASONING The simple idea behind your initial seasoning is to coat the griddle with oil and heat the oil above its smoke point to polymerize the oil and create a bond with the griddle top. You will end up with a dark coating surface that is easy to clean. -
Page 24: Caring For Your Elite 1B
■ Make certain that the Halo 2-Zone Countertop clean your spatula during cooking or cleanup. Griddle and its components are adequately cool before start cleaning. -
Page 25: Troubleshooting
TROUBLESHOOTING BURNER WILL NOT LIGHT USE THE ELECTRONIC IGNITION PO S SI B LE C AU SE: SO LUT ION: Check he regulator or needs to be replaced Faulty regulator ■ ■ Clean venturis and burner with small size round wire brush Obstructions in burner Venturis ■... -
Page 26: Elite 1B Parts List
ELITE 1B PARTS LIST... - Page 27 Bezel-Control Knob HZ-1007-15 Control Knob-Common HZ-1004-38 Igniter Switch-Common HZ-1004-35 Igniter Button-Common HZ-1004-36 Side Door HZ-1007-16 RISE ABOVE Logo HZ-1004-39 Halo-Logo Plate HZ-1004-27 Legs L/R HZ-1007-17 Foot with Adjustable Threads HZ-1007-18 Grease Cup Assembly HZ-1007-19 Match Lighting Stick HZ-1007-20 Leveler HZ-1007-21...
-
Page 28: Assembled Dimensions
ASSEMBLED DIMENSIONS 24.76 629.00 24.76 629.00 24.76 629.00... -
Page 29: Five (5) Year Limited Warranty
FIVE (5) YEAR LIMITED WARRANTY This warranty only applies to units purchased from an authorized retailer. Manufacturer warrants to the original consumer-purchaser only that this product shall be free from defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods indicated below beginning on the date of purchase. - Page 30 FIVE (5) YEAR LIMITED WARRANTY ITEMS MANUFACTURER WILL NOT PAY FOR 1. Shipping cost, standard or expedited, for warranty and replacement parts. 2. Service calls to your home. 3. Repairs when your product is used for other than normal, single-family household or residential use.
- Page 31 If you wish to obtain performance of any obligation under this limited warranty, you should write to: Halo Products Group LLC 850 West Park Rd Elizabethtown KY, 42701 Consumer returns will not be accepted unless a valid Return Authorization is first acquired. Authorized returns are clearly marked on the outside of the package with an RA number and the package is shipped freight with postage pre-paid.
- Page 32 @halop roduc tsgroup Halo Products Group LLC Ha lo Prod uct s Group 850 West Park Rd © 2021 Halo Products Group LLC Elizabethtown KY 42701 Halo and the Halo flame are registered trademarks of Halo Products Group LLC Toll free: 1-833-572-1688...
