Summary of Contents for Aroma360 ISK

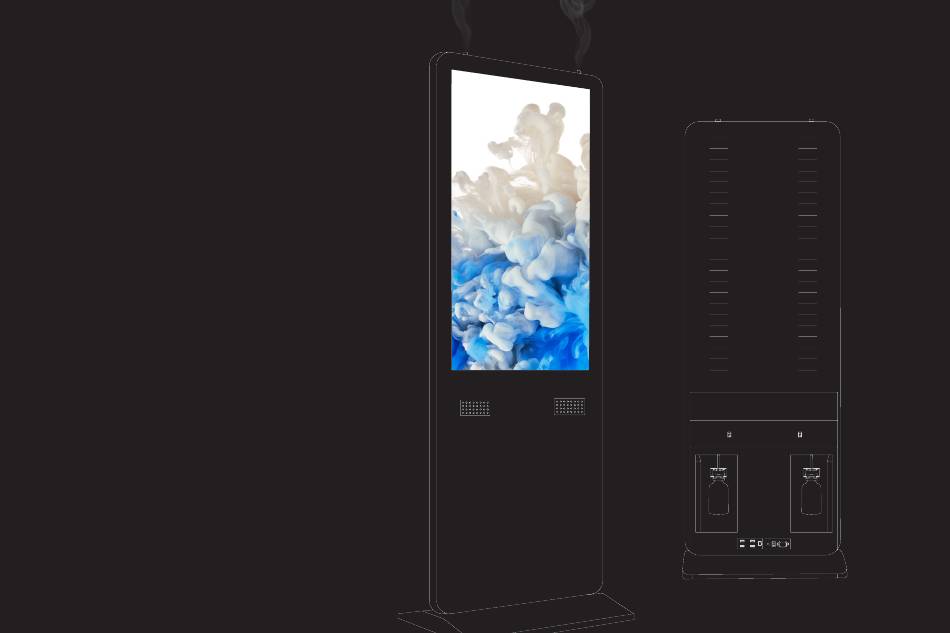

  • Page 1 I N T E R A C T I V E S C E N T I N G K I O S K INSTRUCTION MANUAL Pa g e...
  • Page 2 Welcome to the world of Aroma360 scenting! With your new Interactive Scenting Kiosk (ISK), you’ll be able to create a unique ambiance with a large digital display in a few simple steps. Through the advanced technology of Cold Air Diffusion, your sleek ISK is a convenient and practical solution to enhance any space you desire.

  • Page 3: What's Included

    WHAT’S INCLUDED: ISK Unit (1) Allen Key (1) ISK Base Stand (1) Remote (1) (batteries not included, two AAA batteries are needed) Socket Cap Screws (12) Power Cord (1) Adjustable Level Shoe (4) Key (2) Wi-Fi Antenna (1) Instruction Manual...

  • Page 4: Specifications

    4,000 square feet, the ability to digital advertise on a 43” touch screen LCD display with built-in speakers to create a lively experience. The ISK checks all the boxes and is perfect for any space such as hotel lobbies, convention centers, retail stores, and much more.

  • Page 5: Device Warranty

    DEVICE WARRANTY: The Interactive Scenting Kiosk (ISK) includes a 12-month warranty after the purchase date, and is only suitable for new machines, and not resold or second-hand products. The 12-month warranty includes repair services and replacement parts. All Aroma360 scenting oils are not included in the warranty and are sold separately. The original order number is required for the warranty process.
  • Page 6 Carefully lay the ISK on its side. Step 3 While the ISK is being held on its side by one Do not remove the foam person, the second person will need to attach bump protection on the unit.
  • Page 7 Step 5 Step 6 Once the base-stand is securely attached to the Attach the Wi-Fi Antenna to Wireless Port, unit, carefully lift the ISK to an upright position. located on the lower back of the unit. Step 7 Step 8 Plug the unit to the 100V~120V –...
  • Page 8 Step 1 Step 2 Switch the main power to “I” at the lower back Select Network & Internet and choose your panel of the unit to turn on the ISK and wait for preferred Wi-Fi Network. the unit load. Step 3 Once loading is completed, essential widgets will be displayed on screen.
  • Page 9 Step 1 Unlock the panels with the key provided. Open the panels (swivel doors). Detach the 500ml bottle from the white bracket holder. Unscrew the 500mL bottle, fill the bottle with your preferred Aroma360 fragrance oil. Step 3 Securely screw the bottle. Place the 500mL bottle back on the white bracket holder, and ensure the nozzle is pushed in its socket.
  • Page 10 Videos For YouTube: Play videos from your existing Amazon account to download and YouTube channel. install apps from Amazon App Store. Amazon Music: Turn your ISK to a music Video App: Play videos via external drive. player and play your favorite music genre via Amazon Music.
  • Page 11 ISK NAVIGATION BAR Home Back button Speaker volume down Multitask button Hide navigation control Speaker volume up Display Tips: Swipe up from the home screen to see the apps (this feature does not function, if in app). Using the square function, swipe left or right to remove the displayed apps.
  • Page 12 Step 1 Step 2 Insert the USB containing your external videos into the USB port at the back panel of the ISK. Click the Video widget. The app will automatically scan all the video files in the USB once inserted.
  • Page 13 USING BLUETOOTH CONNECTION TO CONTROL COLD AIR DIFFUSION ON THE ISK Turn ON the power button for each diffuser located on top of each door panel Open the Aroma-Link App Select “Bluetooth. ” Select the diffuser you wish to operate. The unit will ask for password to access control, the default password is “1234.
  • Page 14 USING BLUETOOTH CONNECTION TO CONTROL COLD AIR DIFFUSION ON THE ISK WORKING PERIOD FUNCTIONS: Start Time: The time of the day for the cold-air diffusion to start. End Time: The time of the day for the cold-air diffusion to end.
  • Page 15 USING WI-FI CONNECTION (NEW REGISTRY ) If you haven’t registered a new account on ISK , please follow the procedures below: Using your mobile device, download the app Aroma-Link via App Store. Apple Android Create an account for the ISK.
  • Page 16 USING WI-FI CONNECTION (NEW REGISTRY ) If you haven’t registered a new account on ISK , please follow the procedures below: Press the “WIFI/3G/4G/Cellular” button to access the dashboard 12. Press the “Add Device” located at the bottom-right corner of your screen.
  • Page 17 USING WI-FI CONNECTION TO CONTROL COLD-AIR DIFFUSION VIA ISK (E XISTING ACCOUNT ) Use this procedure if you have an existing account registered in the “Aroma Link” app on your ISK. If you don’t have an account registered yet, please go to Using Wi-Fi Connection (New registry) Open Aroma-Link App on your ISK Press the login link below and login to your account.
  • Page 18 USING WI-FI CONNECTION TO CONTROL COLD-AIR DIFFUSION VIA ISK (E XISTING ACCOUNT ) Use this procedure if you have an existing account registered in the “Aroma Link” app on your ISK. If you don’t have an account registered yet, please go to Using Wi-Fi Connection (New registry) WORKING PERIOD FUNCTIONS: Start Time: The time of the day for the cold-air diffusion to start.
  • Page 19 CONTROLLING COLD-AIR DIFFUSION (VIA MOBILE DEVICE) Select the diffuser you wish to operate. The diffuser is set to run for 10 seconds and pause for 2 minutes as a default. If you wish to change the diffusion setting, select [SET]. A calendar window will show up.
  • Page 20 CONTROLLING COLD-AIR DIFFUSION (VIA MOBILE DEVICE) If you haven’t registered a new account on ISK , please follow the procedures below: Start Time: The time of the day for the cold-air diffusion to start. Your mobile device app is a cloud-based app that lets you control your Scent Diffusion remotely.
  • Page 21 Step 5 Step 6 Do not attempt to disassemble the unit. If For optimal performance, clean the unit there are any issues with the unit, contact by running alcohol through the diffuser support@aroma360.com for 15-30 minutes every 2 months. Pag e...

  • Page 22: Troubleshooting Guide

    Check the pipette and bottle are properly installed • Check the oil level • Press the reset button at the side panel of the ISK • If it’s blinking fast blue, it’s not connected • Slow flashing blue light means it connected.
  • Page 23 • Make sure the ISK is connected to the Network • Press the reset button at the side panel of the ISK • Turn OFF the diffuser switch for 5 seconds and turn it back ON for a hard reset ISK is not connected •...
  • Page 24 W W W. A R O M A 3 6 0 . C O M S U P P O R T @ A R O M A 3 6 0 . C O M Pa g e...
