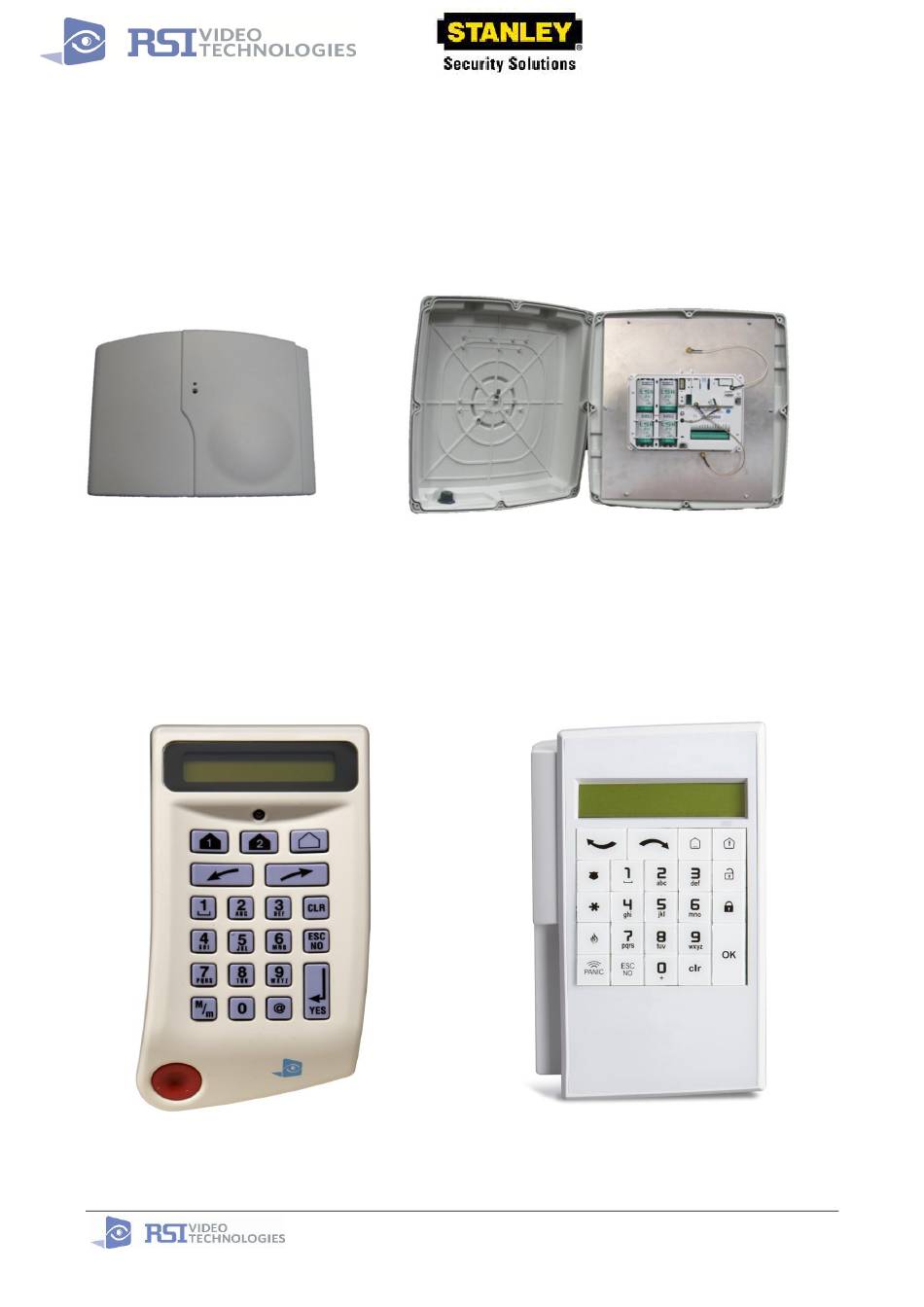

Document #2000-STXTIN
COMPLETE SETUP AND PROGRAMMING MANUAL
FOR
XT610/XTX610/XTO610 GPRS PANELS
*A Videofied CMA601 / XMB611 / XMA611 (2012) Alphanumeric Keypad or Frontel TMT2 is
required for programming and maintenance*

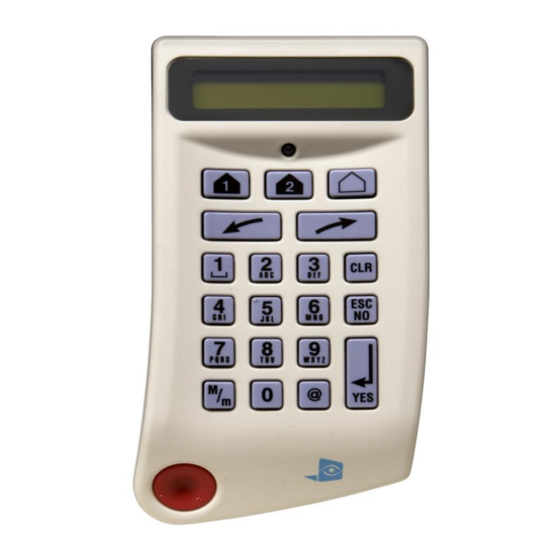

CMA601
XMB611/XMA611
1375 Willow Lake Blvd., #103
Vadnais Heights, MN 55110

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STANLEY XT610 and is the answer not in the manual?

Questions and answers

Summary of Contents for RST STANLEY XT610

  • Page 1 Document #2000-STXTIN COMPLETE SETUP AND PROGRAMMING MANUAL XT610/XTX610/XTO610 GPRS PANELS *A Videofied CMA601 / XMB611 / XMA611 (2012) Alphanumeric Keypad or Frontel TMT2 is required for programming and maintenance* CMA601 XMB611/XMA611 1375 Willow Lake Blvd., #103 Vadnais Heights, MN 55110...
  • Page 2: Table Of Contents

    2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS Table of Contents Page FCC Guidelines Basic Guidelines Introduction Initial Programming 6-15 Entering Badges and Access Codes Choosing Siren Options Testing to Central Station Disabling Monitoring Testing GPRS Level Testing Device RF Level Connecting a GPRS Antenna Power Chart...
  • Page 3: Fcc Guidelines

    2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS Regulatory Information for USA and Canada FCC Part 15.21 Changes or modifications made to this equipment not expressly approved by RSI Video Technologies may void the FCC authorization to operate this equipment. FCC Part 15.105 Class B This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 4: Basic Guidelines

    2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS Basic Setup Guidelines for Installation and Programming SETUP AND PROGRAM 1) Obtain the account number from the Central Station: Call: 877-476-4968 2) Activate the SIM card by calling your cellular provider: Call: 877-877-0911 *Note: Do step 1 and 2 the day before the install.
  • Page 5: Introduction

    2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS Introduction: Description: The XT series control panel is a Videofied wireless, battery operated hybrid alarm system. It is designed for residential, small business and commercial security applications. The XT provides integrated Video Verification over GPRS.
  • Page 6 2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS SETUP MANUAL XT SERIES GPRS PANEL *THIS SYSTEM REQUIRES A CMA601/XMB611/XMA611 or TMT INSTALLER SOFTWARE FOR PROGRAMMING* XT Initial Programming Open the Control Panel Using a #1 Phillips screwdriver, remove the 2 screws holding the cover on.
  • Page 7 2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS *The SIM card must NOT be inserted or removed while the panel is powered* Install the SIM card Slide SIM card into the slot. Make sure it is aligned correctly. Powering the Panel **THE CONTROL PANEL MUST BE CONNECTED TO AN EXTERAL POWER SUPPLY WHEN SMS FEATURE IS ACTIVE**...
  • Page 8 2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS WARNINGS: 1. DO NOT USE ALKALINE BATTERIES IF INSTALLING AN XTX/XTO GPRS BELOW 30° F, YOU MUST USE OPTION 1: PP1. 2. DO NOT INSTALL A TRANSFORMER WHEN USING OPTION 1 (LITHIUM BATTERIES).
  • Page 9 2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS XT Programming Reset the XT Panel:  Press and hold programming button ( ) for 10sec until the Indicator LED blinks twice   Press and instantly release the programming button ( The indicator LED will blink once.
  • Page 10: Initial Programming

    2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS  RADIO RANGE The Radio Range test must be run during device recording TEST ? to ensure proper pairing with the control panel. This tests the number of successful ping between the device and the control panel.
  • Page 11 2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS  DATE (Day) :   Use the to set the Day 09/06/01  DATE (Day) : 09/06/03    TIME (HOUR) : to set the Hour – The system uses a Use the 00:00 24 hour clock.
  • Page 12 2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS CODE/STATE CODE/STATE modification MODIFICATION ? These are the default transmitted events:  Device Alarm Alert Alarm Initialization Not Transmitted Panel Batteries Alarm/End  ESC/NO AC Power Alarm/End Phoneline Fault Not Transmitted TRANS.
  • Page 13 2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS GPRS PARAMETERS?  The SCSS APN code (Access Point Name) is APN CODE   A105.2WAY.NET . Press YES to enter into the parameter and use the Keypad to complete the code. Press ...
  • Page 14 2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS ARMING OPTION: Your choice will depend on how you are arming the system. From the host: Will make the XT a piggyback/xtender ARMING OPTION:  ARMING OPTION: system that arms and disarms off the latching of 9-12v on Standalone From the host the arming inputs.
  • Page 15 2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS TRANSMISSION By entering a value using the keypad, up to 600 seconds, DELAY the transmission of any event will be delayed that many  seconds. Enter the value you would like for the Transmission Delay Value: (0-600) ...
  • Page 16: Entering Badges And Access Codes

    2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS Other XT setup with CMA601/XMB611/XMA611 keypad (Standalone ONLY) Other setup (badges/codes, arming profiles, etc…) must be set with the CMA keypad Entering a Badge or Access Code for Arming/Disarming After Initial programming has been completed, you are not able to arm and disarm the system until you enter a user code or badge (the installer code cannot arm and disarm the system).
  • Page 17: Choosing Siren Options

    2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS Changing Siren Options After initial programming has been completed any sounder on the system will be enabled by default, this includes the sounder on the Keypad and Badge Reader. While there is no way to disable the sounding of the exit delay you are able to disable the intrusion sound.
  • Page 18: Testing To Central Station

    2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS How to test to the dispatch center Testing to the dispatch is done twice during installation. Once while you are programming the system and then again once the installation has been completely finished. Although both will use the same steps the initial test will be just confirmation using one device to verify the programming.
  • Page 19: Disabling Monitoring

    2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS How to Disable Monitoring Disabling monitoring can be a useful tool in many situations. Before mounting devices and moving the panel to find a good GPRS level, disabling monitoring will ensure that you will have access to programming and that unnecessary signals are not sent to the monitoring station.
  • Page 20: Testing Gprs Level

    2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS How to test GPRS for deployment of panel Before the system is mounted you will need to check the GPRS level to make sure it is adequate. Videofied Control Panels require a 3/5 or better for reliable transmission.
  • Page 21: Testing Device Rf Level

    2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS How to test RF for deployment of devices Running the RF test during the mounting of devices is key to a successful Videofied installation. This test will ensure that all devices have adequate communication with the control panel. All Videofied devices are bi-directional which allows the system to ping the device and expect a response.
  • Page 22: Connecting A Gprs Antenna

    2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS GPRS Antenna Connection ! WARNING ! Use caution before removing antenna connection. A damaged antenna connector is NOT covered under warranty. Using needle nose pliers, be sure to only grab the connector and pull directly up XT series Power Chart 22 |...
  • Page 23: Arming Input Wiring Diagram

    2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS Arming Input Wiring Diagram When in the ‘Arm From Host’ mode the Videofied system will only arm and disarm when 9-12v is supplied and sustained. When both arming inputs are supplied voltage at the same time the Videofied Keypad display will show ‘SYSTEM ARMED.
  • Page 24: Programmable Input Configuration

    2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS General Programmable Input Configuration 24 | P a g e 1375 Willow Lake Blvd., #103 Vadnais Heights, MN 55110...
  • Page 25 2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS 25 | P a g e 1375 Willow Lake Blvd., #103 Vadnais Heights, MN 55110...
  • Page 26 2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS 26 | P a g e 1375 Willow Lake Blvd., #103 Vadnais Heights, MN 55110...
  • Page 27: Programmable Output Configuration

    2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS 27 | P a g e 1375 Willow Lake Blvd., #103 Vadnais Heights, MN 55110...
  • Page 28 2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS 28 | P a g e 1375 Willow Lake Blvd., #103 Vadnais Heights, MN 55110...
  • Page 29 2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS 29 | P a g e 1375 Willow Lake Blvd., #103 Vadnais Heights, MN 55110...
  • Page 30: Configuring Scheduling

    2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS 30 | P a g e 1375 Willow Lake Blvd., #103 Vadnais Heights, MN 55110...
  • Page 31 2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS 31 | P a g e 1375 Willow Lake Blvd., #103 Vadnais Heights, MN 55110...
  • Page 32 2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS 32 | P a g e 1375 Willow Lake Blvd., #103 Vadnais Heights, MN 55110...
  • Page 33: Enabling External Rf Antenna

    2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS How to enable the External RF Antenna The XTO 600/610 control panels have built in High Gain RF and GPRS antennas. The GPRS external comes pre-activated and hooked up, while the RF antenna is hooked up but needs to be activated in Configuration after you have completed initial programming.
  • Page 34: Mounting Xt/Xtx

    2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS How to mount the XT600i/610 and XTX600i/610 How to Mount the Control Panel? Fix the back casing on the wall   with 3 screws ()  How to Mount the XTO600/610 Included Mounting Hardware: Case and Mounting Mounting Brackets...
  • Page 35 2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS 2. Place the cover on the base. 1. When closing the cover be sure to line up the two BOTTOM stickers face to face. 2. Be Careful not to slide the cover on.
  • Page 36: Troubleshooting

    2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS Troubleshooting Monitoring Station is not getting ANY video but is getting signals: Good communication between the MotionViewers and the Control Panel is key to getting successful video to the monitoring station. During mounting of any device on your Videofied system you must run the Radio Range/Device Locating test to ensure that the mounting location is with-in range of the Control Panel.
  • Page 37: Central Station Not Getting Any Signals

    2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS Monitoring Station is not getting any signals: Communication between the Control Panel and the Monitoring Station is over the GPRS side of the GSM cellular network.  You will want to check your GPRS level to see if there is an error/level is too low. You must have a 3/5 or better for reliable transmission to the Monitoring Station.
  • Page 38: Unable To Record Device Or Getting 'Pairing Failure' Error

    2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS Unable to record device or getting ‘Pairing Failure’ error This usually occurs when the device still has a pairing key from a previous system or setup. To perform a pairing key override: 1.
  • Page 39: After Initial Programming Flow Chart

    2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS XT -SERIES ‘AFTER INITIAL PROGRAMMING’ FLOW CHART End of Initial Programming Badges / Access Programmable Event Log DISARMED LVL Access Level Configuration Maintenance Codes Features Enter A Badge/ Select Last Events Code Access Level Configuration...
  • Page 40 2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS Configuration General Alarm Modes Responding Party Areas and Configuration Parameters Programmable List Devices Monitor Station Monitoring Site Identification Fully Armed Devices Parameters Not Supported in North American Monitoring? Market Add A New Phone Number Enabled...
  • Page 41: Addendum

    2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS Addendum 1. LSH20 Control Panel Batteries: 2. LS14500 Peripheral Batteries: Excludes SE601 and SE651 3. Lithium Battery Storage: 41 | P a g e 1375 Willow Lake Blvd., #103 Vadnais Heights, MN 55110...
  • Page 42 2011/11/10 Ed 1.5 Setup and Programming manual for XT series GPRS 4. Finding Manufacture Week and Year: The Manufacture week and year can be found in the serial number of the device/control panel. The second sets of 4 numbers in the serial number are WWYY. ####0411######## - This device was manufactured in the 4 week of 2011.
