Summary of Contents for WALLYS DR40 9 Series

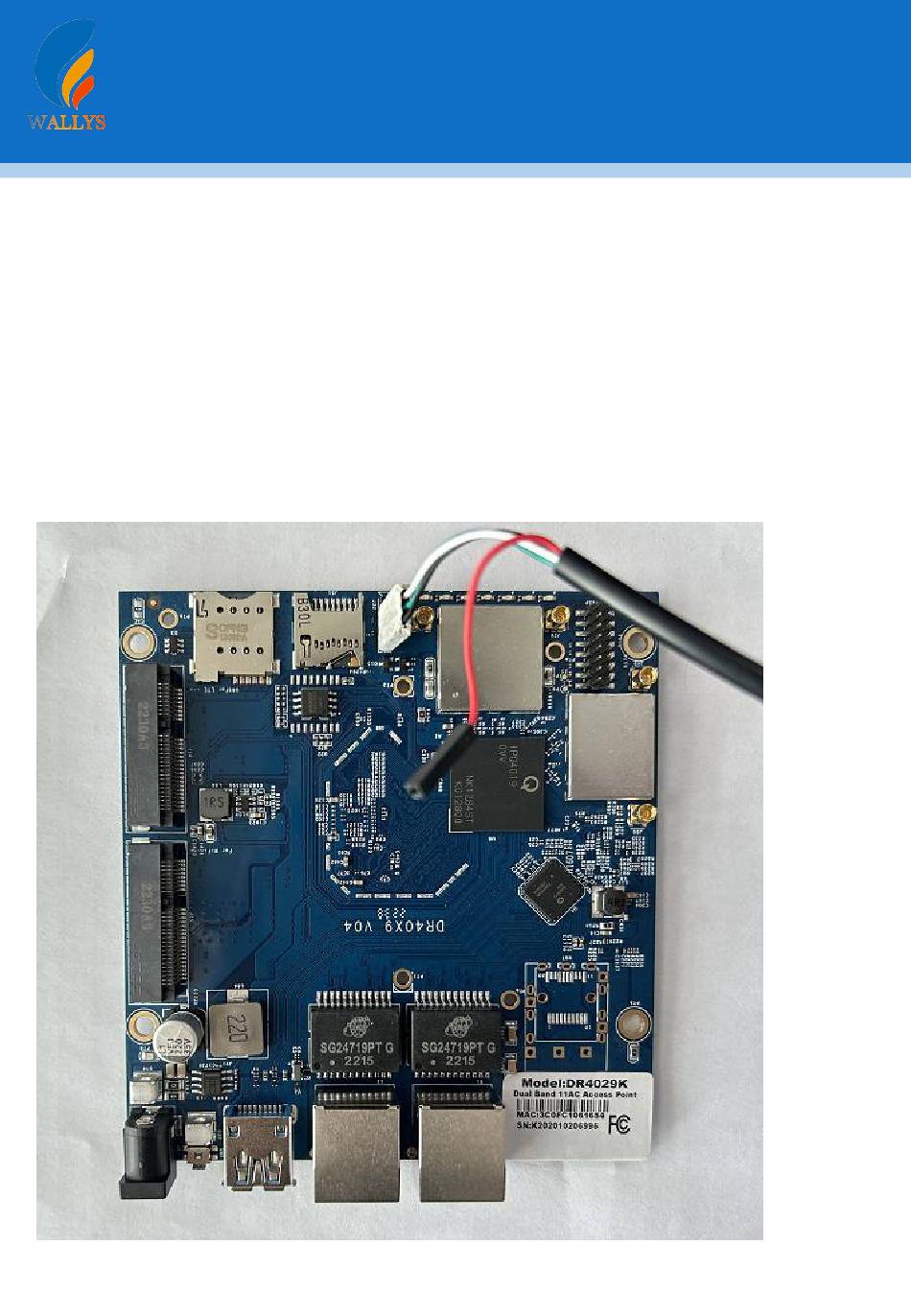

- Page 1 Wallys | User Manual | DR40X9 Logging in with serial Step1: Use SERIAL to connect locahost That is show how to use the Uart for DR40X9 www.wallystech.com...
- Page 2 Wallys | User Manual | DR40X9 Step2: When you see“Hit any key to stop autoboot“,please click“Enter”in your keyboard. www.wallystech.com...
- Page 3 Wallys | User Manual | DR40X9 Writing command Step1: Write the following command If you want to load the firmware as below, write the command as follows tftpboot 0x84000000 nornand-ipq40xx-single-2168- 202104231204.img&&imgaddr=0x84000000 &&source$imgaddr:script Please note that please replace nornand-ipq40xx-single-2168- 202104231204 with your firmware name.
- Page 4 Wallys | User Manual | DR40X9 www.wallystech.com...
- Page 5 Wallys | User Manual | DR6018-S Step2: It’s done when you see as below picture shows. www.wallystech.com...
- Page 6 Wallys | User Manual | DR40X9 IPQ40xx UI setting Step1: Input the IP：192.168.1.1 and login； Step2: Input the user name：root；password：asdf1234， then press the button“Login”， www.wallystech.com...
-
Page 7: Network Setting
Wallys | User Manual | DR40X9 IPQ40xx UI setting Step3: network setting IP Setting:setting IP in the path“network->Interfaces->LAN- >IPV4 address” DHCP setting:DHCP and other protocol setting in the path network->Interfaces->LAN->protocol” www.wallystech.com... -
Page 8: Wireless Setting
Wallys | User Manual | DR40X9 IPQ40xx UI setting Step4: wireless setting 1.login the path network->Interfaces->WIFI,then choose one wifi,we select the red marked as example,click the button‘Edit’ www.wallystech.com... - Page 9 Wallys | User Manual | DR40X9 IPQ40xx UI setting Step4: wireless setting 2.The detail information show in the picture as below: Channel:for channe lselect; 3.Transmit Power:signal chain power setting;ESSID:forID 4.Mode:it support 4 mode AP,AP(WDS),client,client(WDS) Wireless Security:for Encryption setting www.wallystech.com...
- Page 10 Wallys | User Manual | DR40X9 IPQ40xx UI setting Step4: wireless setting 5.In advance setting you can select which chain do you need,which BW do you need and so on. 6.In the end,you need click the button“Save&Apply”, and wait for 2 minutes,then you can enjoyit.
- Page 11 Wallys | User Manual | DR40X9 IPQ40xx UI setting Step5: Backup archive Login System->Backup/Flash Firmware;Then click the button” Generate archive”;Then download the archive. www.wallystech.com...
- Page 12 Wallys | User Manual | DR40X9 IPQ40xx UI setting Step6: Link up If 2 devices are link up,please check the information in the “Associated Stations” toc performance. www.wallystech.com...
