Summary of Contents for Dongtuo KC-88

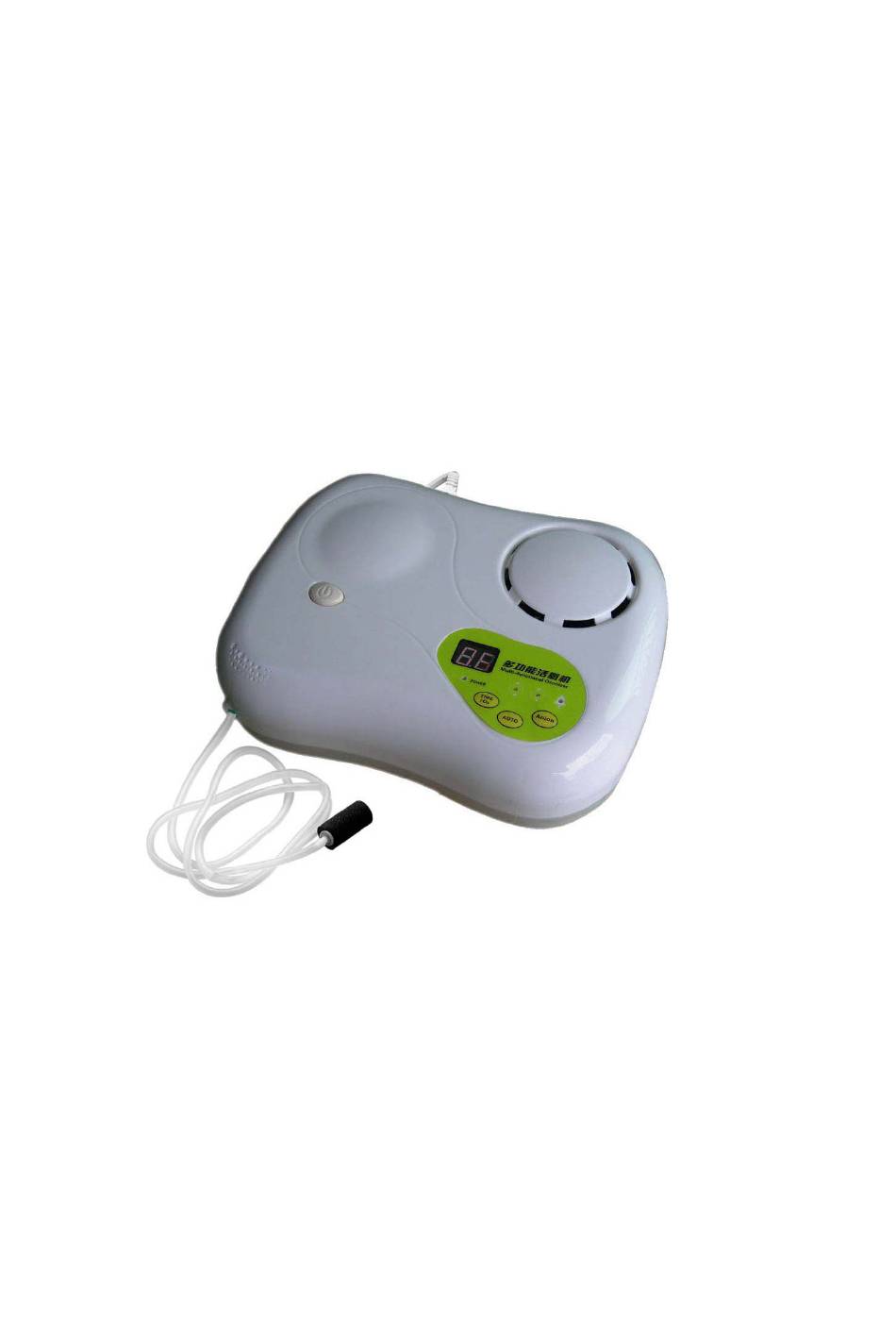

- Page 1 Multifunctional ozone & anion generator Model：KC-88...
-
Page 2: Table Of Contents
Catalog 1． Security Advice ---------------------------------------------------------------- 1~2 2． Operation Cautions----------------------------------------------------------- 2~5 3． Technical parameter---------------------------------------------------------- 6 4． Packing accessories---------------------------------------------------------- 6 5． Name of parts & specification---------------------------------------------- 7 6． Operation instruction--------------------------------------------------------- 8~10 7． Failure repair ------------------------------------------------------------------ 10~11 8． Service terms ------------------------------------------------------------------ 12 9． Warranty ------------------------------------------------------------------------ 13... -
Page 3: 1． Security Advice
1. Security Advice Warning sign: Remind the users, this product has the high voltage. Caution: Remind the users, notice to maintain the product correctly. 1.1 Power supply: 220 V ~240V, 50HZ/60HZ. 1.2 If do not use the product for a long time, please takes off the power plug from the jack, and cut off the power supply completely. -
Page 4: 2． Operation Cautions
easily, otherwise it will hurt the kids or the ozone generator will get failure. 1.10 Do not place the machine close to TV, Computer or any other else magnetic force electrical equipments, otherwise electrical equipments will be influenced by the ozone generators. (Should be have 1 meter distance) 1.11 This kind of machine has no function of increase the oxygen concentration in the air or eliminate carbon monoxide. - Page 5 2.4 Please proper place the ozone generator to avoid accident from the kids’ the wrong operation. 2.5 Please keep the ozone hose clean; never press the ozone output hose. 2.6 When use ozone for sterilization & Deodorant; the eyes or noise never touch ozone output directly, otherwise you will feel uncomfortable.
- Page 6 air that ozone concentration is over 0.1ppm for a long time. ③ The ozone’s Half-Life in air(Normal temperature) is 30 mins. ④ The ozone’s Half-Life in water (Normal temperature) is 20 mins. 2.12 It is normal that the ozone hose become white or yellow after a long using.
-
Page 7: 3． Technical Parameter
3. Technical parameter Name: multifunctional ozone & anion generator Model: KC-8 Voltage: 220V~240V Frequency: 50HZ/60HZ Wattage：15W Ozone output: < 600mg/hr Anion output (test it from the output 15CM distance): 4000 thousand / Anion created : Carbon Fiber Control panel button: power on/off button ; touch button; LED indicator Ozone working timer: 0~30 mins Anion working timer: 4 h, 8h, 12 h or even long Automatically: The ozone &... -
Page 8: 5． Name Of Parts & Specification
B. ozone hose : 2 C. Diffuser stone: 3 5. Name of parts & specification Background of the product... -
Page 9: 6． Operation Instruction
6. Operation instruction 6.1 Anion air purifier operation step: 6.1.1 Put the plug into jack, the machine is electrified and power indicator is lighted. The machine is being designated state. 6.1.2 Press the power ON/OFF button, the anion air purifying start working continuously, the anion indicator is lighted;... - Page 10 anion stop working. 6.2.5 If you want to stop the ozone generator working, just press the power ON/OFF button or the anion working switch button (the anion generator start working). 6.2.6 If do not use the product for a long time, please takes off the power plug from the jack, and cut off the power supply completely.
-
Page 11: 7． Failure Repair
working state is active). The ozone & anion automatically switch alternation working period will be 4h, 8h, and 12h. 6.3.5 If do not use the product for a long time, please takes off the power plug from the jack, and cut off the power supply completely. 7. - Page 12 7.3 When normally operate the machine, if the power indicator is not lighted. Please the power cord is completely not damaged. Or the plug & the jack have a good connection or not. If the jack becomes flexible, just change it. Otherwise call the service department for reparation. 7.4 There is much dust existed in the casing or around of the machine.
