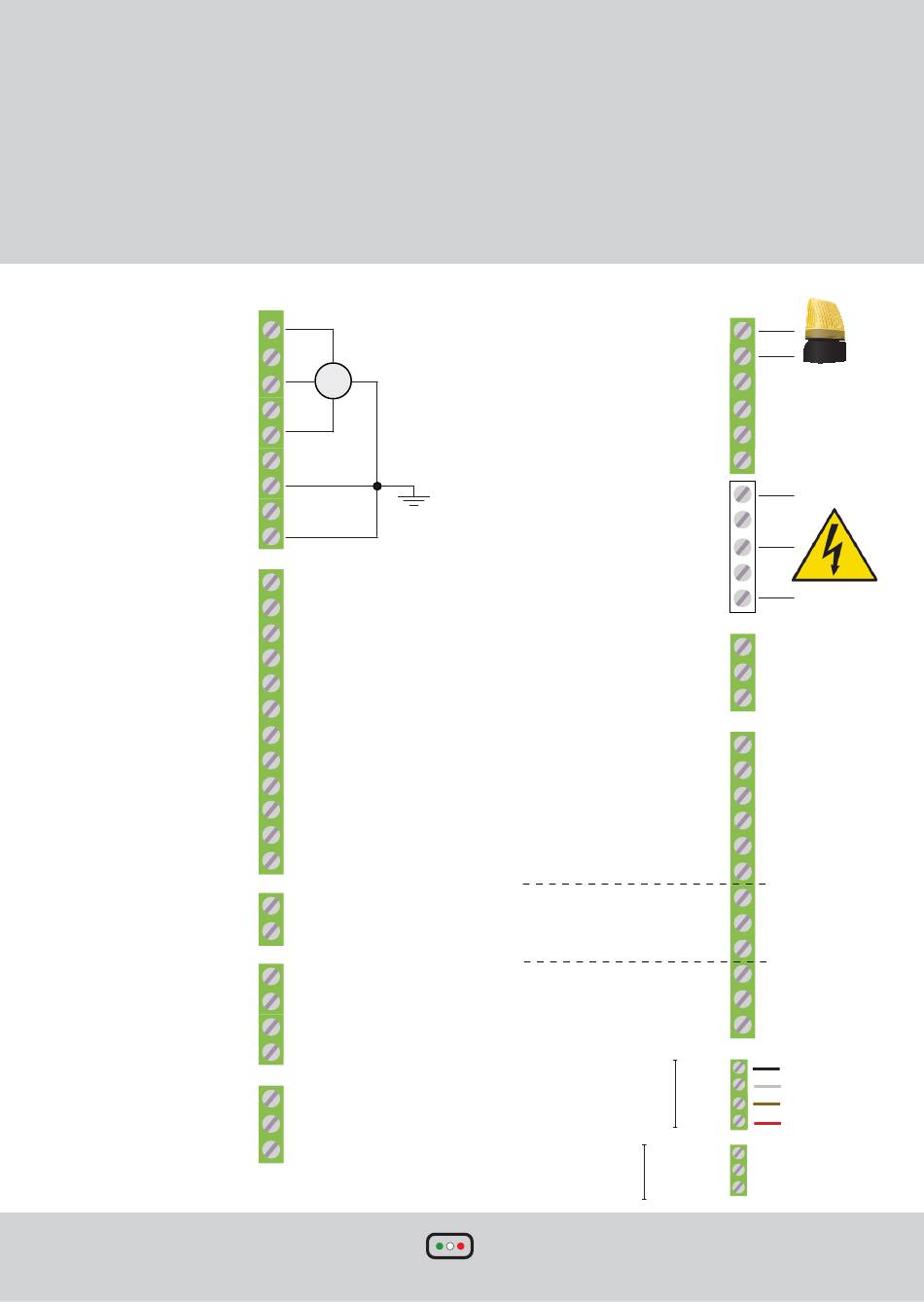

Technical Manual START-S19XL TECHNICAL MANUAL U / MOT com Signal light -27- 400Vac Three Phase motor or 230Vac Signal light -28- Single-phase COM Brake -29- V / MOT open 230Vac -30- Negative Brake Positive Brake -31- W / MOT close Brake 110Vdc -29B- Ground...
Page 2
START-S19K SYMBOL INDEX The special messages indicated below, may appear throughout the 1. INTRODUCTION technical manual to draw attention to information that clarifi es or SAFETY PRECAUTIONS simplifi es a procedure. FIELD OF APPLICATION TYPE OF INSTALLATION TECHNICAL FEATURES The addition of this graphic symbol to a “Danger” or 2.
Technical Manual INTRODUCTION SAFETY PRECAUTIONS Using the unit improperly and performing repairs or modifications personally will void the warranty. The producer declines any responsibility for damages due to inappropriate use of the product and due to any use other than the use the product was designed for.
Technical Manual CONNECTION OF THE POWER SUPPLY The are three possibilities to power the control unit: THREE-PHASE 400 Vac THREE-PHASE 230 Vac SINGLE-PHASE 230 Vac 35 36 37 35 36 37 35 36 37 The voltage line must be protected from a thermal-cutoff-switch or from a 5A fuse. A circuit-breaker is recommended but not necessary if not available in the installation CONNECTION OF THE MOTOR Three-phase motor...
Page 6
START-S19K CONNECTION OF A 24V LIGHT FOR OPEN OR MOVING GATE 38 39 40 44 45 46 47 48 49 If you plan to use the photocells test, or a 24V light, this connection cannot be used. CONNECTION OF THE LSC AND LSC You can see the connection of both limit switches, in this control unit they can 9 10 11 12 13 14 15 16 17 be connected separatelly.
Page 7
Technical Manual CONNECTION OF STOP DEVICES Connection of the STOP control 9 10 11 12 13 14 15 16 17 BUTTON: it stops temporary the control unit until a new command. SWITCH: the automation stops until a new reset The connection of safety devices can be done with every button Or a NC contact.
Page 8
START-S19K 2.12 CONNECTION OF THE PHOTOCELLS (ONLY CLOSE) 24 VAC Without TEST The photocell receiver contact 9 10 11 12 13 14 15 16 17 41 42 43 44 45 46 47 48 49 must be: - dry (insulated from power sup- 24 Vac ply voltages) - type N.C.
Page 9
Technical Manual 2.13 CONNECTION OF THE SECURITY OR ANTI-FOLD UP In case the control units is installed in rapid-rise-doors is possible to connect photobeam for unfolding the curtain. In case the intervention of safeties, the doors stops and reverse the cycle of 1.5sec. The connection of more safety de- 41 42 43 44 45 46 47 48 49 9 10 11 12 13 14 15 16 17...
START-S19K USE AND FUNCTIONS OF THE CONTROL PANEL START-S19XL has a display for a simple and fast programming. The menu has been designed for a clear and fast set up of the working time and the logic of the control unit. You can set up the control unit only when the door is closed. SETTINGS AND PARAMETERS ACCESS TO THE FUNCTIONS Press P1 when the gate is closed...
Page 11
Technical Manual EXAMPLE HOW TO USE THE MENU AND INFORMATION It is possible to display some information regarding the condition and the correct operating system of the control panel for example the manoeuvres counter, the resistance value in the input SAFETY EDGE 2 (terminal 14). SYMBOLS Access to the MENU...
Page 12
START-S19K SET UP A PASSWORD FOR PROGRAMMING To save all changes it is possible to select a password of 4 numbers. To activate this function make as follow: • PASSWORD ACTIVATION: Press P1, P2 and P3 in the function S32 and then confirm with P1 2nd press P1 confirm In the function S if you press P1, you can choose the group function: first select P2, now you can go to the...
Technical Manual ACTIVATE THE SINGLE OUTPUTS START-S19XL can open and close separately and the outputs for lamps and test. This is useful in case you want to check the single outputs. P2 - 1st press Access to the functions P2 - 2nd press SYMBOLS P2 - 3td press Press and...
Page 14
START-S19K r O8 Output for DOWN INTERLOCK r O9 Activate 230Vac BRAKE RESISTANCE VALUE r 1O Output SAF. EDGE 2 (term. 14) MANOEUVRE COUNTER r 11 In tens (Point indicate the thousands) r 12 Activate INSIDE ELECTRONIC BRAKE -14-...
Page 15
Technical Manual FUNCTIONS AND ADJUSTMENT LOGIC OF FUNCTIONS RAPID REVERSING MOTOR S O1 Ech command START reverse: open-close Automatic reclosing COLLECTIVE USE START command can open or recharge the pause time Automatic reclosing BISTABLE EACH START follows the logic open-stop-close-stop-open... No automatic reclosing BISTALBE WITH RECLOSING AFTER THE PAUSE Each START follows the logic...
START-S19K FUNCTIONS AND ADJUSTMENT In the following pictures we specify the T functions: T 01 T 09 T 02 T 11 t = 0 s DEFAULT DESCRIPTION - seconds - T 01 Set up the fully opening time of the door/gate step da 0,1 s T 02 Set up the opening time of partial opening step da 0,1 s...
Page 17
Technical Manual SET UP OF SPEED AND ACCELERATION Here are reported the parameters for SPEED, ACCELERATION and CONSUPTIONS: Setup Description Set up of the SOFT START. At 0 the function is not activated L 01 From 1 to 10 will increase the speed of the starting point L 02 Not used L 03...
Page 18
START-S19K MEMORIZATION OF THE ENCODER KOSTAL Once you terminate the connections: S 41 Set S 41 to 1 for activeted the Kostal encoder (2000 version) S 13 S 14 Deactivate all LS inputs with parameters S13, S14. Bring all at 0. r O3 With R03 and R04 check the direction of rotation of the motor and positionate the r O4...
Technical Manual RESTORE OF FACTORY DEFAULT SETTINGS The control panel reset to the Standard values, and it can remind the parameters programmed from the user. RESTORE FACTORY SETTINGS Checking those paramenter of the parameters, yuo can look the set up during the RESET of the control unit. Select the paragraph S18 as shown.
START-S19K SAVE AND CHECK OF THE PARAMETERS START-S19 has 2 memory slots saving all manually set up and you can check it again. See how to check the set up with functions S23, S24, S25, S26. Once all parameters are set up, it is possible to change. Thanks of the 2 memory slots, it is possible to save and check 2 differents set up.
Page 21
Technical Manual INSTALLATION GROUP S DESCRIPTION S 01 Logic of the control unit from 1 to 8 1 - Rapid reversing 2 - Collective use 3 - BISTABLE 4 - Bistable with automatic reclosing 5 - Rapid Reversing + dead’s man 6 - Collective use + dead’s man 7 - Bistable + dead’s man 8 - Bistable with automatic reclosing+ dead’s man...
Page 22
START-S19K DESCRIPTION DEFAULT S 27 Charge standard settings 1 S 28 Charge standard settings 2 S 29 Charge standard settings 3 S 30 Charge standard settings 4 S 31 Charge standard settings 5 Activate the password to enter in the menu. S 32 Inser the code and let the time goes S 33 Deactivate the password to enter in the menu...
Page 23
Technical Manual GROUP T DESCRIPTION T 01 Time of position LSO T 02 Time of stop position of the PARTIAL OPENING T 03 Pause time for START and OPEN Command T 04 Pause Time for PARTIAL OPENING T 05 PRE-LIGHTING time when open T 06 PRE-LIGHTING time when close T 07...
Page 24
(according to EC Directive 2006/42, Attachment II, part 1, ses. A) ..........The undersigned Ernestino Bandera, Administrator ..........DECLARES THAT: ..........Company: EB TECHNOLOGY SRL ..........Address: Corso Sempione 172/5 21052 Busto Arsizio VA Italy ..........Product’s name: START-S19XL Control unit for 1 single-and-three ..........
