Summary of Contents for AROSTOP 30 M

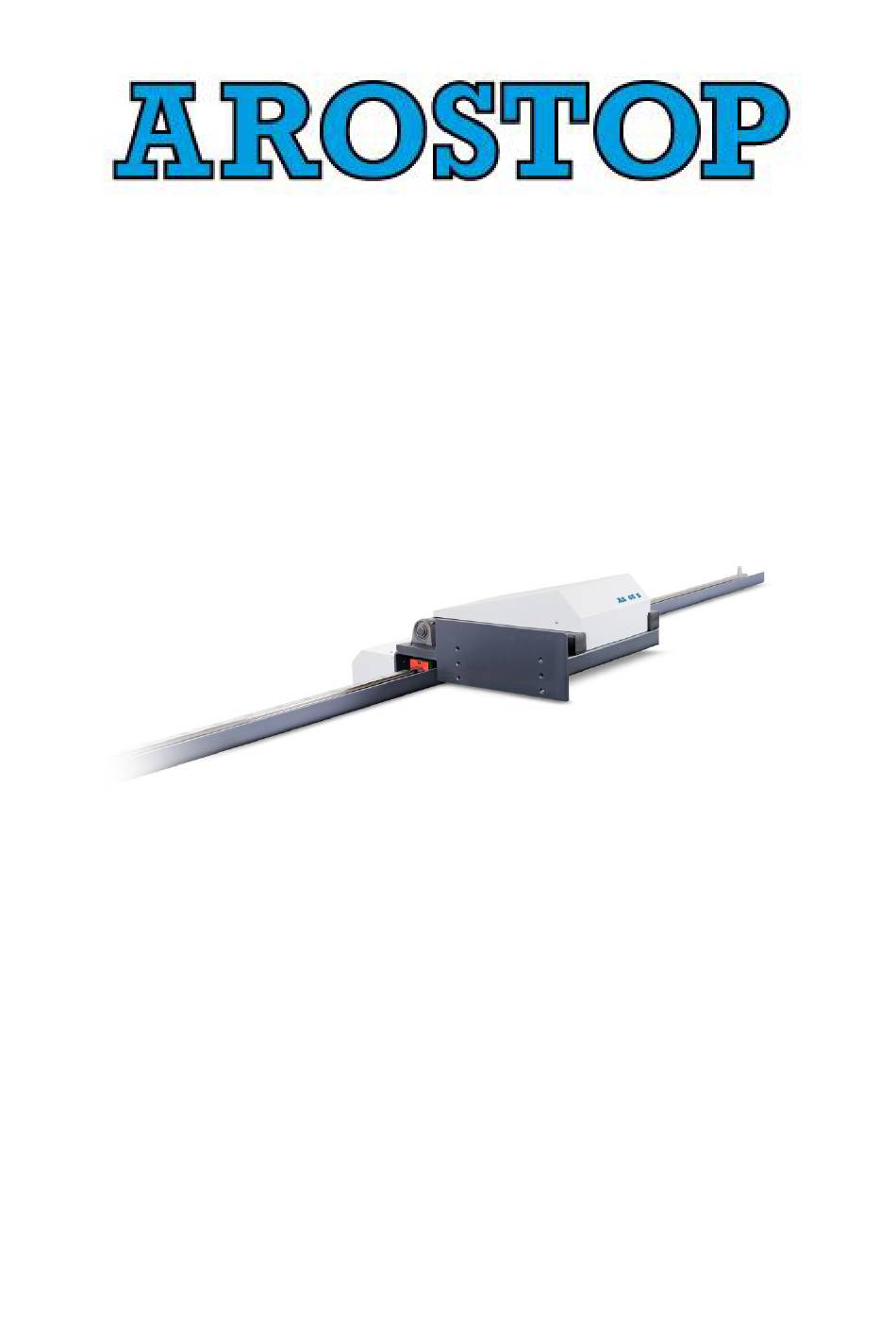

- Page 1 Length measuring system Arostop 30/65 M User manual/Parts list Version 2022-01...
-
Page 2: Table Of Contents
Arostop 30M / 65M – User manual Inhoud Introduction ............................. 4 CE-Marking ..........................4 Warranty ..........................4 Disclaimers ..........................4 Standard machine and accessories ..................4 Not belonging to the machine ....................4 Using the manual ........................4 Safety ............................... 5 Rules for general safety ...................... - Page 3 Arostop 30M / 65M – User manual 6.2 Storage ............................18 6.3 Repair and maintenance ......................18 6.4 Maintenance schedule ........................ 19 6.5 Cleaning ............................19 6.6 Repairs ............................19 6.7 Replacing parts ..........................19 6.8 Parts list ............................20 6.8 Decommission ..........................
-
Page 4: Introduction
Arostop 30M / 65M – User manual 1. Introduction Thank you for choosing an Arostop system. We are happy to have you in our long list of satisfied customers. 1.1 CE-Marking This machine is designed and build with the requirement of the machinery directive 2006/42/CE. -
Page 5: Safety
Arostop 30M / 65M – User manual 2. Safety Read this chapter carefully, as it lists important information concerning safety. This machine is designed so it can be used and maintained safely. This applies to application, conditions and requirements as described in this manual. Reading this manual and following the instructions given is mandatory for anyone working with the machine. -
Page 6: Prohibited Use
Arostop 30M / 65M – User manual 16. Strictly comply with all warning labels and decals on the machine. Never remove any of the labels. Replace worn or damaged labels immediately. 17. Always disconnect and shut off the power supply when performing maintenance work on the machine. -
Page 7: General
3. General 3.1 About the machine The length measuring machines Arostop AS30 m and Arostop AS65 M are machines to position material to the right length. It consists of a steel angle, equipped with a rack-and –pinion gear, guide and a stopper or clamp. The total length of the machine is on customer specification. The system is controlled with a digital readout. -
Page 8: Installation
Arostop 30M / 65M – User manual 3.2 Installation 3.2.1 Mechanical Mechanical installation should always be carried out by qualified professionals. 1. Fix the system to a stable conveyor; 2. Level the stopper arm on 5 mm horizontally above the conveyor;... -
Page 9: Parameter Calibration
Arostop 30M / 65M – User manual 3.2.2 Parameter calibration See chapter 4.5. 3.2.3 Counter direction Counter direction can be implemented with the switch. 3.3 First use The machine must be thoroughly checked before first use, after repairs or long-term storage. -
Page 10: Operation
Steel angle profile with rack-and-pinion gear, guide and a stopper. A measuring unit is mounted around the steel angle profile, and is powered by a motor. The whole system is controlled by an Arostop controller. Clamp Stopper Rail... -
Page 11: Operating Instructions
Arostop 30M / 65M – User manual 4.5 Operating instructions Control keys The operation of the device is divided into the parameter level (see section 4.5.3), the operator level (see section 4.5.5) and the initialization level. All operating parameters can be put in through the Parameter level (see section 4.5.3.6). -
Page 12: Key-Overview
Arostop 30M / 65M – User manual 4.5.2 Key-overview The function of the keys in the parameter level is shown on the button in de dark box at the bottom left. The function at the operating level is shown in the bright field size: 4.5.3 Parameter level... -
Page 13: Initialization Level
Arostop 30M / 65M – User manual All parameters will be retentively stored in the internal flash memory when leaving the parameter level. 4.5.3.6 Parameter list 4.5.4 Initialization level Resetting the parameter and calibration 4.5.4.1 Calibration The calibration is already factory-made and must not run again normally. - Page 14 Arostop 30M / 65M – User manual Version 2022-1...
-
Page 15: Function At The Operator Level
Arostop 30M / 65M – User manual 1. Switch off the device (remove battery or plug) Press and hold the key. 2. While pressing the key, turn the device on again. 3. The sensor calibration is initiated and ‘CAL 0’ is displayed. -
Page 16: Adjustment Of Work
Arostop 30M / 65M – User manual 4.5.5.4 Activation offset measurements Press the key once. This key enables/disables each of the three adjustable offset dimensions (only available in absolute mode). In each case an offset is added to the display value. -
Page 17: Risks
Arostop 30M / 65M – User manual 5. Risks Read this chapter carefully! Never place any body parts into or under any of the machine’s moving parts. Never put hands between the stopper and the material. Never leave the machine running unattended. -
Page 18: Other
Arostop 30M / 65M – User manual 6. Other 6.1 Transport Immediately after receiving the machine, make a general check of the machine. In NOTE case of any visible damage, inform the transporter and the manufacturer. The system is transported in a solid wooden crate. The crate can be refunded upon return. -
Page 19: Maintenance Schedule
Arostop 30M / 65M – User manual 6.4 Maintenance schedule Daily Ensure the work area is tidy. Remove any off-cuts from the machine. Ensure the rail is dust and dirt free. Monthly Check all anchorages. Lubricate the nipple with grease. -
Page 20: Parts List
Arostop 30M / 65M – User manual 6.8 Parts list Stopper Digital read out Steel angle Encoder Rack Bearing Bracket Rail Guide Wagon Connector C-wagon Motor plate Shaft Gear 6.8 Decommission When the machine is decommissioned, the waste management rules in force at the place and time of decommissioning must be observed. -
Page 21: Identification On The Machine
Arostop 30M / 65M – User manual 7. Identification on the machine The following identification marker is placed on the machine: 8. Machine specifications Machine: Arostop length measuring system Type: 30M / 65M Dimension C-Construction: 420x250x145 Weight steel angle, rail and rack: ca. -
Page 22: Connection Requirements
Arostop 30M / 65M – User manual 8.1 Connection requirements 8.1.1 Electric Battery voltage 1,5 V 8.1.2 Physical conditions Ambient operating temperature +5 to +40 ºC Transport temperature +5 to +50 ºC Rel. humidity 30% to 70%, not condensing Lighting normal ambient lighting ...
