Part List
Wooden Board
Wooden Strip
Wooden Board
Wooden Strip
Wooden Strip
Tealight Holder
Thumbtack
1

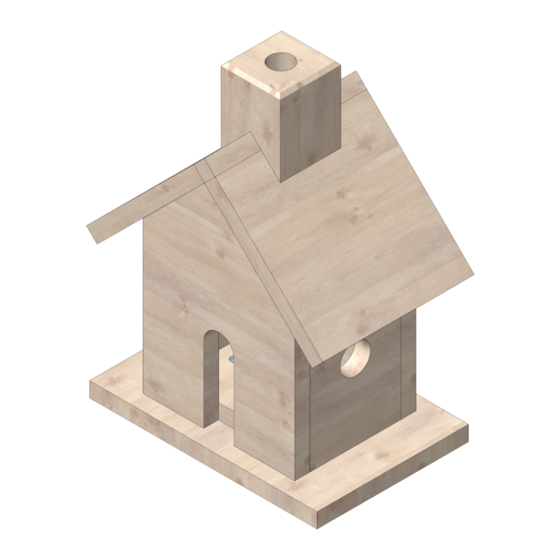

Incense Smoker -
Little Wooden House
Finished projects of OPITEC handicraft kits are not play toy articles in the same sense as general
commercially available ones, but rather are intended as teaching and learning material suppor-
ting educational objectives. The content of this construction kit may only be built and used by
children and adolescents under the guidance and supervision of qualified adults. Not suitable
for children under 36 months. Risk of suffocation!
Quantity
3
1
2
1
1
1
2
118.473
Tools Required:
Sandpaper
Pencil and
Crayons
Locking Clamp
Please Note!
Size (mm)
150x100x10
Base Plate/ Front and Backside
300x60x10
100x100x10
75x10x10
150x40x20
ø15
ø20
Wood Glue +
Drill Bit
All Purpose
Glue
Fret Saw
Mitre Box
Designation
Side Strips and Candleholder
Roof
Gable
Chimney
Holder for Incense Cone
Fixing of Tealight Holder
Ruler
Engineer´s File
Part-No.
1
2
3
4
5
6
7
Advertisement
Summary of Contents for Opitec Incense Smoker

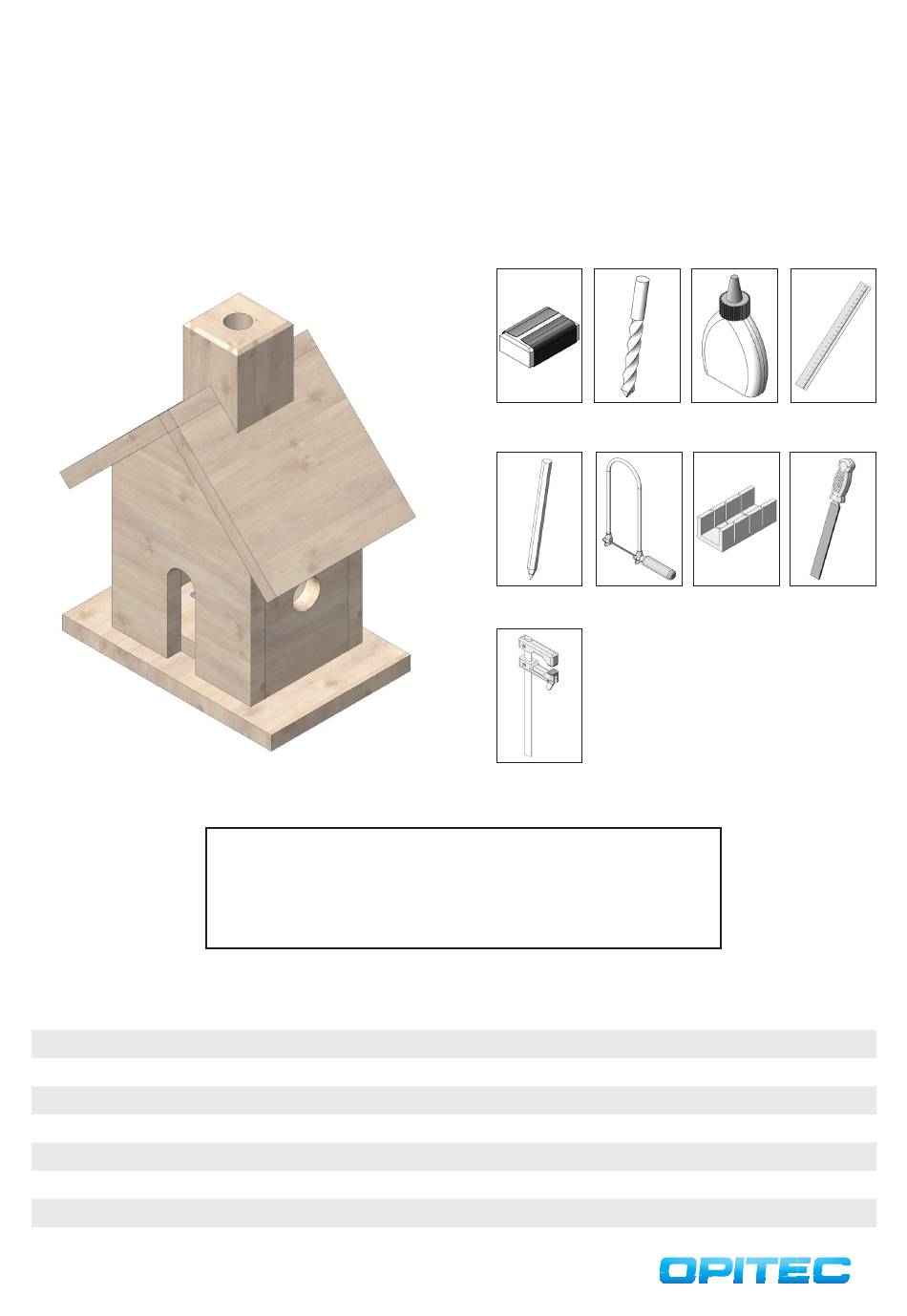

- Page 1 Locking Clamp Please Note! Finished projects of OPITEC handicraft kits are not play toy articles in the same sense as general commercially available ones, but rather are intended as teaching and learning material suppor- ting educational objectives. The content of this construction kit may only be built and used by children and adolescents under the guidance and supervision of qualified adults.
- Page 2 Building Instruction 118.473 Incense Smoker - Little Wooden House ø20 ø20 Transfer the template (page 5) for the walls of the house (1a + 1b) to Mark the cut edges on the wooden strip (2) according to sizes (templa- two wooden boards (1). Mark and drill the holes with the ø 20 mm drill te page 4) and drill the two holes with the ø...
- Page 3 Building Instruction 118.473 Incense Smoker - Little Wooden House Glue the two roof parts symmetrically to the house walls with the two Glue the two strips (4) to one of the roof parts as shown. Allow the notches facing downwards (please refer to drawing!).
- Page 4 Building Instruction 118.473 Incense Smoker - Little Wooden House Attach the tealight holder (6) at the center of part 2c using the two Place an incense cone at the center of the tealight holder, light it and thumbtacks (7). set up the little house. Finished!
- Page 5 Building Instruction 118.473 Incense Smoker - Little Wooden House Template Front and Backside M 1:1...
- Page 7 Building Instruction 118.473 Incense Smoker - Little Wooden House Template Chimney and Gable M 1:1...
