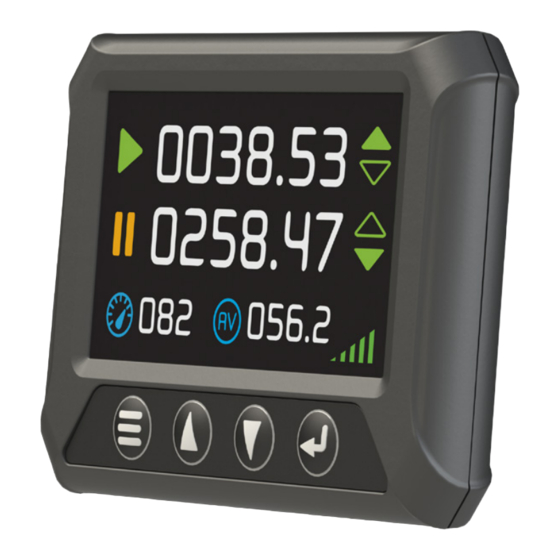

GPS Trip Meter - Active
HMGT3000
GPS TRIP METER - ACTIVE
The GPS Trip Meter - ACTIVE is used to measure distance accurately with GPS and
Glonass.
It is easy to operate with a full-colour touchscreen and can display 2 independant trips
simultaneously.
Ideal for Councils and Rally Drivers.
THE KIT CONTAINS:
1.4.3" Display screen
2. Power and reset switch
3. Magnetic mount GPS Antenna
4.
Ram mount suction systems

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HMGT3000 and is the answer not in the manual?

Questions and answers

Related Manuals for GSR Laser Tools HMGT3000

Summary of Contents for GSR Laser Tools HMGT3000

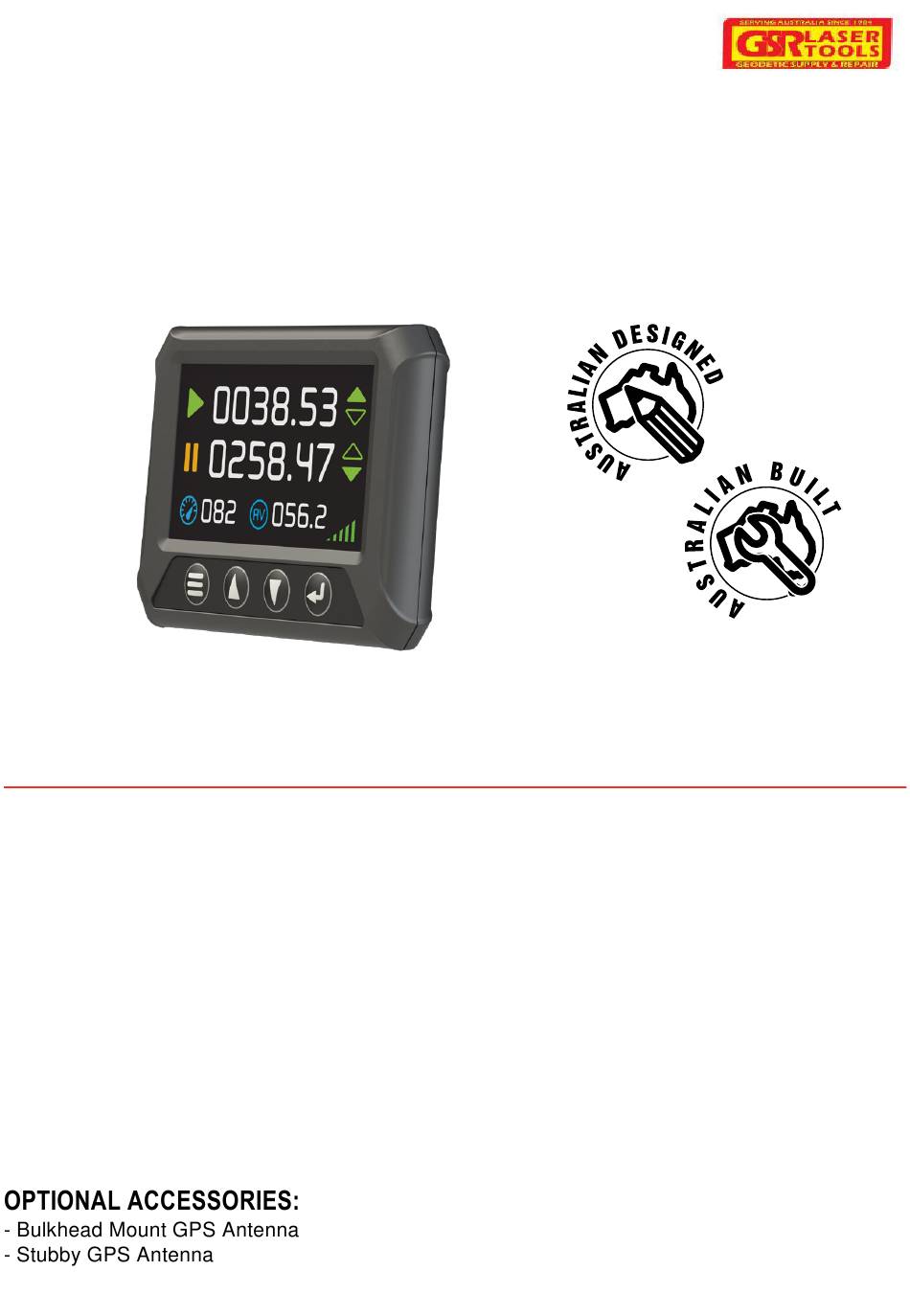

  • Page 1 GPS Trip Meter - Active HMGT3000 GPS TRIP METER - ACTIVE The GPS Trip Meter - ACTIVE is used to measure distance accurately with GPS and Glonass. It is easy to operate with a full-colour touchscreen and can display 2 independant trips simultaneously.

  • Page 2: Technical Specifications

    TECHNICAL SPECIFICATIONS: PART NUMBER HMGT3000 MOUNTING SYSTEM RAM MOUNT SUCTION SYSTEM INPUT VOLTAGE 4.4VDC - 32VDC USB POWER COMPLIANT POWER CONSUMPTION 1.4W; 120MA AT 12V DIMENSIONS (DISPLAY UNIT) 130MM(WIDTH) X 94MM(HEIGHT) X 21MM(DEPTH) MAGNETIC MOUNT GPS ANTENNA 40MM(WIDTH) X 15MM(HEIGHT) X 49MM(LENGTH) ANTENNA CABLE LENGTH POWER &...

  • Page 3: Installation Instructions

    INSTALLATION INSTRUCTIONS: 1. Mount the GPS antenna on the dashboard or the sun visor as shown in the below image. For best results the antenna must have an unobstructed view of the sky. In vehicles where the windscreen is vertical the antenna can be placed on the roof using the magnetic mount.

  • Page 4: Keypad Operation

    OPERATION: KEYPAD OPERATION Press to change Press a trip to enter Press to change between run and an initial value between up and pause mode down count Press the menu Press the up and The enter button has the button to enter down buttons to set same function the menu...

  • Page 5: Navigating The Menu

    OPERATION: NAVIGATING THE MENU To access the main menu, press the menu key on the bottom left of the unit. The user can navigate using the keypad or the touchscreen. Keypad Up and down buttons are used to scroll through menu items or increase & decrease values. The enter button is used to confrm or select an option, and the menu button is used to go back one level or cancel.

  • Page 6: External Switch

    OPERATION: EXTERNAL SWITCH: This menu allows configuration external switch. External Switch Enabled Selecting “No” this option prevents external switch from triggering anything, regardless what Trip Functions selected below. Trip Function Trip Function Trip Function allows user what happens each trip when external switch...

  • Page 7: Password Submenu

    Displays data for selected trip (distance, average speed, max. speed and time measured). Pressing up and down buttons switches the selected trip displayed. GSR Laser Tools Unit 7 / 7 Prindiville Drive - Wangara WA 6065 Ph: 08 9409 4058...
