Summary of Contents for CleanLogix SLX-PF

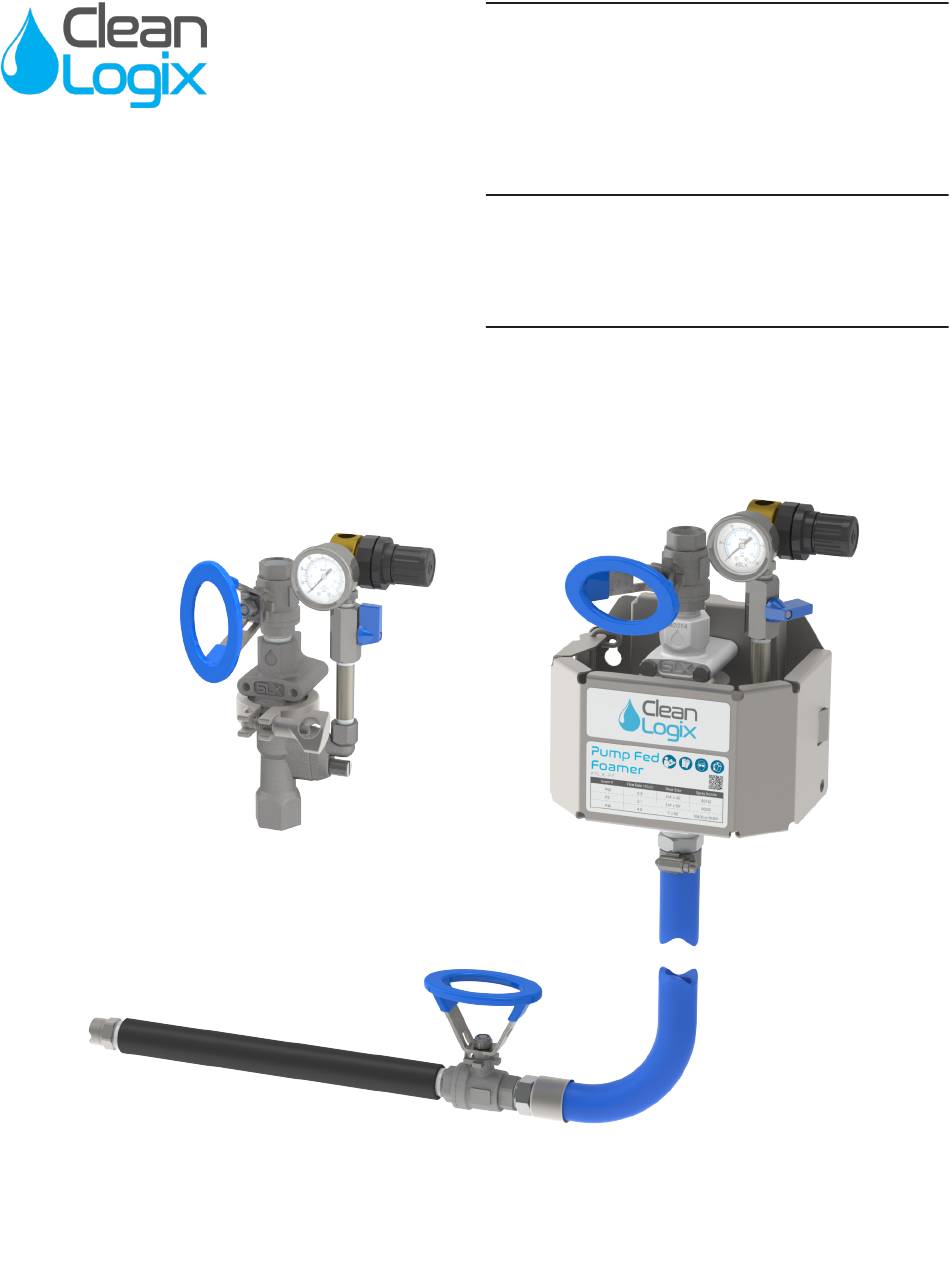

- Page 1 USER MANUAL MODEL: SLX-PF PUMP FED FOAMER - SINGLE STATION English (Original Instructions) Updated: 05/16/22...
-
Page 2: Table Of Contents
PROTECT THE ENVIRONMENT Please dispose of packaging materials, old machine components, and hazardous fluids in an environmentally safe way according to local waste disposal regulations. Always remember to recycle. SLX-PF Pump Fed Foamer User Manual Page 2 of 13 Updated: 05/16/22... -
Page 3: System Requirements
Always test prior to normal operation to ensure facility requirements are met for cleaning More Information procedures. Please contact Clean Logix at: (616)-438-9200 or sales@clean-logix.com SLX-PF Pump Fed Foamer User Manual Page 3 of 13 Updated: 05/16/22... -
Page 4: Installation
OPTIONAL STAINLESS STEEL UPGRADE AVAILABLE Notes: • Air filter recommended. • Backflow prevention required - consult local codes. • System may vary depending on model and optional upgrades. SLX-PF Pump Fed Foamer User Manual Page 4 of 13 Updated: 05/16/22... -
Page 5: Operation
Fig. 5.2: Spray wand with open valve. counter-clockwise). NOTE: Always keep air pressure BELOW pump pressure! 8. Check foam quality per facility standards. Fig. 5.3: Air pressure adjustment for foam quality. SLX-PF Pump Fed Foamer User Manual Page 5 of 13 Updated: 05/16/22... - Page 6 11. Open spray wand ball valve and let foam pressure exhaust completely. 12. Rinse hose. 13. Store hose depressurized, with the ball valve open and coiled properly coiled to prevent kinks or damage. SLX-PF Pump Fed Foamer User Manual Page 6 of 13 Updated: 05/16/22...
-
Page 7: General Use
A screwdriver can be used to pry the insert out if necessary [Fig. 7.3] 6. The insert can be cleaned using warm water or descaling acid compatible with PVC. Fig. 7.3: Pump Fed insert removal using screwdriver SLX-PF Pump Fed Foamer User Manual Page 7 of 13 Updated: 05/16/22... - Page 8 7. To reinsert, orient the check valve with the arrow pointing towards the foamer body and press into place. 8. Reattach the elbow and tighten the thumb screw until secure. Fig. 8.3: SLX Check Valve (correct orientation) SLX-PF Pump Fed Foamer User Manual Page 8 of 13 Updated: 05/16/22...
-
Page 9: Maintenance
• Replace discharge hose (and wand if necessary) till secure. • Replace insert, check valve, regulator, and gauge More Information Please contact Clean Logix at: (616)-438-9200 or sales@clean-logix.com SLX-PF Pump Fed Foamer User Manual Page 9 of 13 Updated: 05/16/22... -
Page 10: Troubleshooting
Incorrect discharge hose, wand, and/or nozzle size. Verify size and replace if necessary with correct size and length (see system specifications based on insert size) For Technical Support: SLX-PF Pump Fed Foamer User Manual Page 10 of 13 Updated: 05/16/22... - Page 11 Air is backing up into pump supply line Cause Solution Inlet ball valve left on when not in use Turn off ball valve For Technical Support: SLX-PF Pump Fed Foamer User Manual Page 11 of 13 Updated: 05/16/22...
-
Page 12: Parts Call Out
DATE CREATED: More Information FINISH 2/23/2022 LAST SAVED: WEIGHT (LB.) NOTE: DEBURR AND BREAK Purchase Replacement Parts: 8.294 SHARP EDGES! Please contact Clean Logix at: (616)-438-9200 or sales@clean-logix.com SLX-PF Pump Fed Foamer User Manual Page 12 of 13 Updated: 05/16/22... - Page 13 GAUGE, PRESSURE, 1-1/2", 0-150psi, 1/8" NPT, SS P2464 REGULATOR, AIR, 1/4" NPT, COMPACT P2467 VALVE, BALL, MANUAL, 1/4" NPT FEMALE X 1/4" NPT FEMALE, 316SS P2484 O-RING, SLX BODY, VITON, BROWN SLX-PF Pump Fed Foamer User Manual Page 13 of 13 Updated: 05/16/22...
