Summary of Contents for Denver LDD-2260

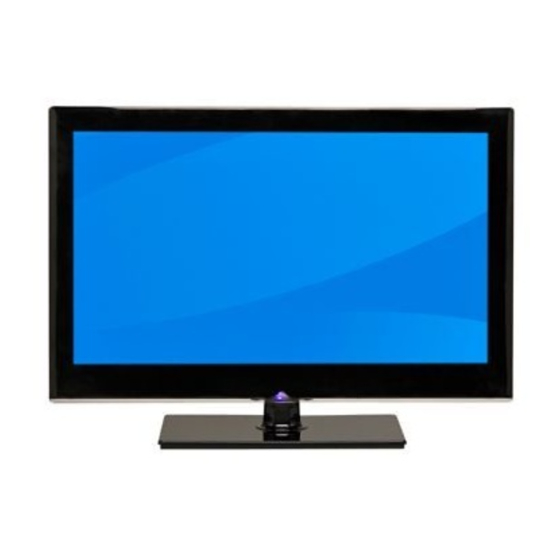

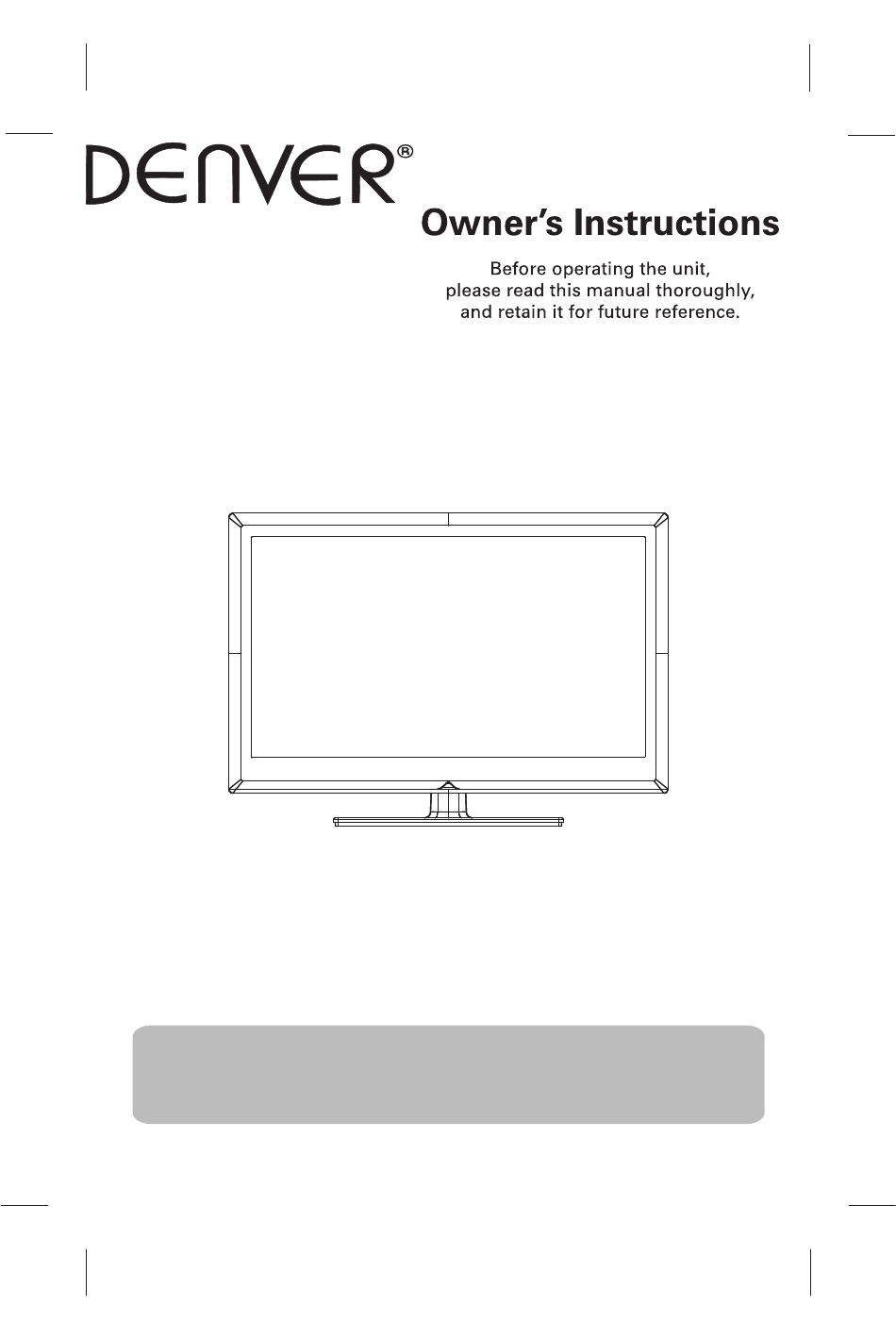

- Page 1 LDD-2260 21.6” TFT LED TV Operating Instructions...
-
Page 2: Table Of Contents
Table of contents Safety ................3 General safety instructions ..........3 Preparations for use ........... 3 Package contents ............3 Installation ..............4 Connecting random equipment ........4 Connecting to the mains ..........5 Functions ..............5 TV/DVD Combi ............5 Remote control............... 6 Operation ..............7 Quick start .............. -
Page 3: Safety
General safety instructions WARNING Do not put force on the appliance. The appliance can fall and can cause serious injury. CAUTION Do not spill any liquid on the appliance. WARNING Do not insert any objects in the ventilation holes. CAUTION Do not block the ventilation holes. -
Page 4: Installation
Connecting random equipment The appliance includes various options for permanent connection of random equipment. Suitable cables can be purchased at your reseller. Audio connections (input) These connections allow you to receive audio signal from a connected VCR or amplifier. ● L/R AUDIO: Connect a suitable cable to the L/R channels of the AUDIO connection. -
Page 5: Connecting To The Mains
Connecting to the mains ● Connect the adaptor plug on the adaptor cable to the DC-12V connection. ● Connect the mains plug to a wall socket. Functions LED TV/DVD Combi... -
Page 6: Remote Control
Remote control General functions 15 Digit buttons (0-10+) 16 Q.VIEW button 17 MUTE button 18 VOL - button 19 ASPECT button 20 PROG - button 21 I/II button 22 VOL + button 23 MENU button 24 PROG + button 25 SOURCE button 26 SWAP button 27 SLEEP button 28 DISPLAY button... -
Page 7: Operation
DVD functions 39 OPEN/CLOSE button 40 NEXT button 41 PREV button 42 REPEAT button 43 SLOW button 44 ANGLE button 45 DVD menu button 46 Arrow buttons 47 ENTER button 48 DVD setup button 49 GO TO button 50 DISPLAY button 51 AUDIO button 52 SUBTITLE button 53 PROGRAM button... - Page 8 ● To select the source mode (TV/AV/SCART/YPBPR/PC/HDMI/DVD): • Press the SOURCE button (25). • Press the PROG +/- button (24/20) to select the mode. • Press the VOL +/- button (22) to enter the mode. ● To adjust the volume, press the VOL + button (22) or the VOL - button (18). ●...
-
Page 9: Tv Setup Menu Operation
TV setup menu operation To change the initial settings The following actions have to be carried out with the remote control: ● Press the MENU button (23). ● Press the VOL +/- button (22/18) to select a menu. ● Press the PROG +/- button (24/20) to enter the selected menu. -
Page 10: Tv Functions
FUNCTION ● In the FUNCTION menu you may change the function set up of preference that include SLEEP TIMER,ASPECT,TT LANGUAGE, BLUE SCREEN,SYSTEM LOCK and FTI. ● SLEEP TIMER:to select timer ● ASPECT: to select the mode you want. ● TT LANGUAGE: to select language ●... -
Page 11: Dvd Functions
● Press the volume buttons to select a desired channel, and use the arrow button down to highlight the next entry. ● To confirm the selection and start the program swap, move the highlight to "SAVE" and press the volume button. Teletext functions ●... - Page 12 ● To repeat a chapter (DVD) or one or all tracks (CD): • Press the REPEAT button (42) once to repeat the current chapter or track. • Press the button once again to repeat the current title. • Press the button once again to repeat all chapters or tracks. •...
-
Page 13: Dvd Setup Menu Operation
Using the PROGRAM function ● Press the PROGRAM button (53) to enter the PROGRAM function. ● Press the digit buttons to select a desired track, and use the arrow button down to highlight the next entry. ● To confirm the selection and start the program, move the highlight to "START"... - Page 14 ● In the SCREEN SAVER section, press the arrow buttons to switch the screen saver ON or OFF. Audio setup page DOWNMIX ● Select LT/RT to mix 5.1-channel audio into left channel and right channel. ● Select STEREO to mix 5.1 channel audio into signal stereo. This function is only available for 5.1-channel discs with Dolby AC-3 encoding.
-
Page 15: Pc Monitor Settings
DEFAULT ● Restore all default settings of the appliance, except the settings for the menu items PARENTAL and PASSWORD. Password setup page PASSWORD MODE ● Switch this function ON or OFF. PASSWORD ● Enter the current password in the first box. ●... -
Page 16: Technical Data
Technical data Parameter Value Voltage 100 ~ 240 V / 50 ~ 60 Hz Power consumption 50 W Standby power consumption Max power output 2 x 3 W (RMS) Headphones output impedance 32 Ω Dimensions (W x H x D) without foot 530 x 400 x 75 mm with foot... - Page 18 基本操作 ALL RIGHTS RESERVED,COPYRIGHT DENVER ELECTRONICS A/S www.denver-electronics.com...
