Campania Charleston FT- 257 Manual

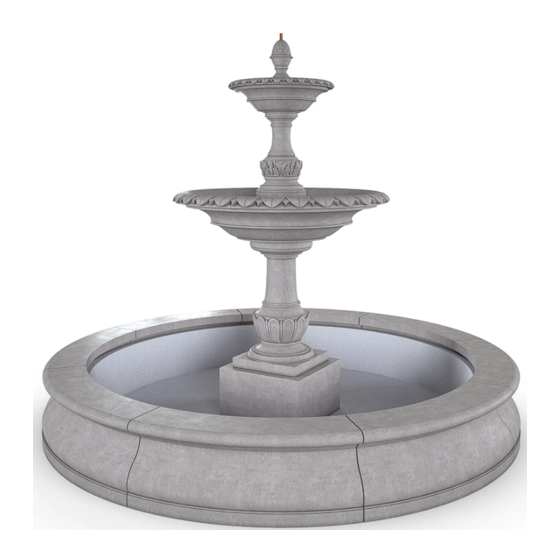

FT- 257 Charleston in Basin Fountain

COMPONENTS AND PARTS LIST

FT-256A
5"dia x 13"H
10 Lbs
FT-256B
22.25"dia x 6.25" H
60 Lbs
FT-256C
10.75"dia x 24.75"H
72 Lbs
FT-256D
5"L x 1.5"W x 5"H
4 Lbs
FT-256F
15.75"W x 28.5"H
217 Lbs
FT-239J
20" x 12" H
242 Lbs
(17 pieces)
PK800 Pump (2)
#10 Rubber Stopper with large hole (1)
Plumber's putty (2)
Approx. 2" length of ¾" clear vinyl tubing (2)**
Approx. 2" length of 5/8" clear vinyl tubing (2)**
Approx. 96" length of ½" black non-kink tubing (1)**
Approx. 84" length of ½" black non-kink tubing (1)
10" length of 1½" PVC pipe to be used as stand pipe (1)
FT-256E
Rubber bands (1)
46.5"dia x 10"H
Hose clamps (4)
308 Lbs
Wedges (10)
#7 Drain stopper with wing nut tightener (1)
Basin plug (1)
Note – Hose clamps may be used for flow restrictor
FT-239L
8.25"L x 1.75"W x 6.5" H
FGB-2020
72" x 12"H
260 Lbs
This fountain uses
cover FTNCOV-MED
but it does not cover
the basin
NOTE: Component photos are not to scale

Pump Kit Parts List

**Tubing will be preassembled
Tools you will need
Level
Tape measure
8 Lbs
Revised July 15, 2014
Fountain holds
approximately 240
gallons of water
FT-124K (8)
38"L x 9"W x 15" H
282 Lbs
