MADI Terminal

Setup and Operations Guide

Table of Contents

Need help?

Do you have a question about the MADI and is the answer not in the manual?

Questions and answers

Summary of Contents for UTAH SCIENTIFIC MADI

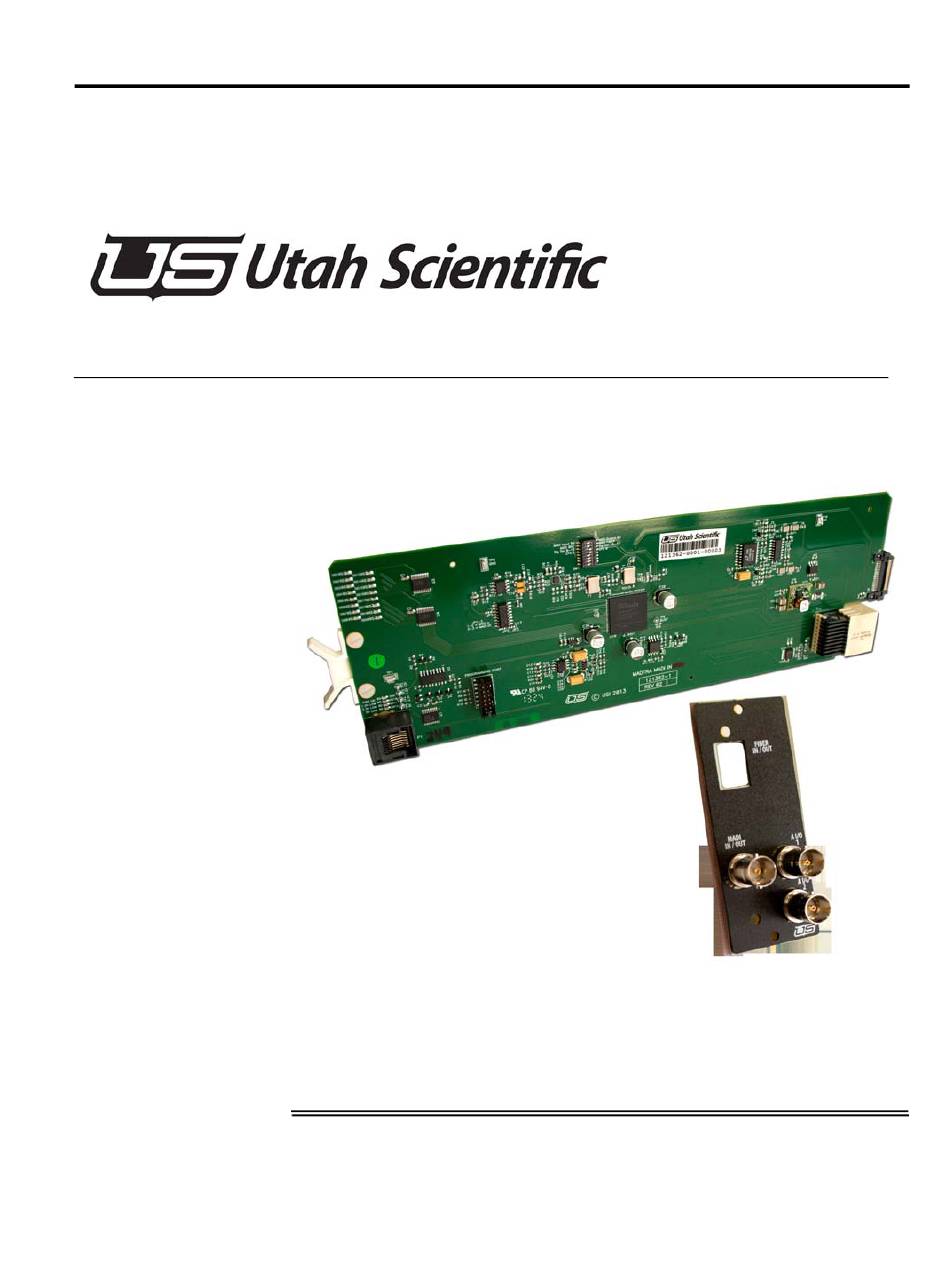

Page 1 MADI Terminal Setup and Operations Guide...
Page 2 Information contained in this guide is subject to change without notice or obligation. While every effort has been made to ensure that the information is accurate as of the publication date, Utah Scientific, Inc. assumes no liability for errors or omissions. In addition, Utah Scientific, Inc. assumes no responsibility for damages resulting from the use of this guide.
Page 3 Following the provisions of the Directive(s) of the Council of the European Union: EMC Directive 89/336/EED • Low Voltage Electrical Directive 72/23/EEC • Utah Scientific, Inc. hereby declares that the product specified above conforms to the above Directive(s) and Standard(s). Setup and Operations Guide...
Page 4 Route power cords and other cables so they won’t be damaged. • The AC receptacle (socket) should be located near the equipment and be easily • accessible. Disconnect power before cleaning. Do not use any liquid or aerosol cleaner - • use only a damp cloth. MADI Terminal...
Page 5 Dangerous voltages exist at several points in this product. To avoid personal • injury, do not touch exposed conductors and components while power is on. Do not insert anything into either of the systems two-power supply cavities with power connected. Do not wear hand jewelry or watches when troubleshooting high current cir- •...
Page 6 Company Information Utah Scientific, Incorporated 4750 Wiley Post Way, Suite 150 Salt Lake City, Utah 84116-2878 U.S.A. Telephone: +1 (801) 575-8801 • FAX: +1 (801) 537-3098 • Technical Services (voice): +1 (800) 447-7204 • Technical Services (FAX): +1 (801) 537-3069 •...
Page 7 Warranty Policies Hardware Warranty Utah Scientific, Inc. warrants to the original purchaser that the Utah Scientific hardware is free from defects in materials and workmanship and will perform substantially in accordance with the accompanying written materials under normal use and service for a period of ten (10) years from the date of shipment.
Page 8 No liability for consequential damages. To the maximum extent permitted by applicable law, in no event shall Utah Scientific or its suppliers be liable for any damages whatsoever (including without limitation, damages for loss of business profits, business interruption, loss...
Page 9: Table Of Contents
System Setup Information ................1-3 Unbalanced AES ................... 1-3 Balanced AES ..................1-4 Analog Audio ..................1-5 MADI Configuration ..................1-6 MADI Terminal System Boards ..............1-7 AES Audio Input (121360-1) ..............1-7 Controls and Indicators ..............1-7 ADC Audio Input (121371-1) ..............
Page 10 Table of Contents...
Page 11: Madi Terminal
This unit is capable of reporting signal information and errors via an Ethernet port or serial port. The chassis is made up of up to two power supplies, a controller board and two MADI bays. The system usually arrives with a single power supply unless a redundant one has been ordered.
Page 12 The audio signals that make up the MADI streams will come from or be delivered to the input and output connectors as AES or analog signals. The MADI Output board receives 32 AES pairs that are individually analyzed and synchronized to the digital audio reference (DARS) and are processed into a MADI Stream that is available at the BNC and Fiber outputs.
Page 13: System Setup Information
Unbalanced AES Inputs and Outputs will have 10 signals per input or output board making up 30 of the 32 pairs used in a MADI stream. The last two signals come from or are delivered to two BNCs located on the MADI board rear panel. In this configuration (unbalanced inputs) the SW1 switch #4 should be toward the CFG B silkscreen (“ON”...
Page 14: Balanced Aes
Balanced AES Inputs and Outputs will have 10 signals at the first board and 11 signals on the next two boards (10+11+11=32) making up 32 of the 32 pairs used in a MADI stream. The last two signals come from the last two I/O boards. In the balanced inputs configuration, the SW1 switch #4 should be toward the CFG A silkscreen (“OFF”...
Page 15: Analog Audio
Analog audio Inputs and Outputs will have 10 signals at the first board and 11 signals on the next two boards (10+11+11=32) making up 32 of the 32 pairs used in a MADI stream. The last two signals come from the last two I/O boards. In the balanced inputs configuration, the SW1 switch #4 should be toward the CFG A silkscreen (“OFF”...
Page 16: Madi Configuration
MADI Configuration The MADI I/O boards have some configuration options that are setup with the dipswitch SW1 found near the middle top half of the board. These should be preconfigured at the factory before shipment. Table 1-1. MADI Input Bd...
Page 17: Madi Terminal System Boards
AES Audio Input (121360-1) The AES Audio Input board receives up to 11 AES signals that are passed to the MADI Output board. The number of signals passed is determined by the slot the board is installed in and the type of rear panel interface used in the system.
Page 18 (this will be set at the factory before shipping). AES Audio Output (121361-1) The AES Audio Output board receives up to 11 AES signals from the MADI Output board and individually drives them to the system rear panel connectors. The number of signals passed is determined by the slot the board is installed in and the type of rear panel interface used in the system.
Page 19: Adc Audio Input (121371-1)
4. FPGA OK -> FPGA prom load indicator (yellow). This is illuminated when FPGA device is loaded correctly. 5. COMMS -> Communications indicator (yellow). This is illuminated when the Frame Controller MADI Terminal...
Page 20: Dac Audio Output (121372-1)
DAC Audio Output (121372-1) The DAC Audio output board receives up to 11 AES3 signals that are passed to the MADI Output board. These signals are individually distributed to the digital to analog converter outputs and after conversion to analog audio are then driven to the system rear panel connectors.
Page 21 5% tolerance. This board will drive high impedance loads (e.g. 100k ohm). In instances when a 600 ohm load needs to be driven, the factory can make a gain adjustment to this board to provide the appropriate level. MADI Terminal 1-11...
Page 22: Madi Input (121362-1)
Controls include SW1 and P1. SW1 is an eight pin dipswitch that utilizes switch 1 to determine if the MADI board is configured as an input or output. Switch 2 indicates the MADI input interface as fiber or unbalanced BNC. Switch 3 indicates the group of 16 signal detect LEDs as pairs 1-16 or 17-32.
Page 23: Madi Output (121362-2)
The MADI Output Board is a transmitter for a Multichannel Audio Digital Interface (MADI/AES10). The MADI transmitter supports 64 channels of 48 kHz digital audio. The 32 AES3 signals are inserted into a MADI stream and output to the 75-Ohm BNC and the Fiber port located on the MADI rear panel.
Page 24 DS1-8, 13-20 (SIGDET1-16) -> Signal detection LEDs (green). This is illuminated when a valid digital audio signal is detected on the associated receiver input. Note:The ADC inputs to the MADI output board provide a ‘no audio’ AES signal when the audio level is low or not connected that will illuminate the signal detect LEDs.
Page 25: Balanced Digital Audio/Analog Audio (Pinout Connections)
IOC 5, 15, 25 + IOA 6, 16, 26 - IOB 6, 16, 26 IOC 6, 16, 26 + IOA 7, 17, 27 - IOB 7, 17, 27 IOC 7, 17, 27 + IOA 8, 18, 28 MADI Terminal 1-15...
Page 26 - IOB 9, 19, 29 IOC 9, 19, 29 + IOA N/A, 30, 31 - IOB N/A, 30, 31 IOC N/A, 30, 31 Pair 11 (above, yellow shading) indicates wired in the I/O slot 2 & 3 only. 1-16 MADI Terminal...
Page 27: Controller (121364-1)
There are two types of LED indicators present on the front edge on this card PWR OK -> Power supply indicator (green). This is illuminated when the local power supplies are within tolerance. 3.3V and +5V/-5V -> Power supply fail indicators (red). Illuminated when local voltages fall out of 5% tolerance. MADI Terminal 1-17...
Page 28 “Ref OK” and “Loop Lock”. These LEDs will be illuminated when a digital audio reference (DARS) is connected to the rear panel. The DARS signal type is AES3, generated from the plant signal generator from which all other audio signals are locked. Figure 1-13. 121364-1 Controls and Indicators 1-18 MADI Terminal...
Page 29: Fiber Interface - (Optional)
SP2T - Transmitter module FIGURE 1-1. The SP2R is the receiver module, and is a part of the MADI Input card assembly. The SP2T is the transmitter module, and is part of the MADI output card assembly. These modules are removed and replaced by moving the swinging bale (at the end) out of, and back in to the locked position.
Page 30: Sfp Use
Differential pair input signal from a DA, these LEDs will never be let. Figure 1-14. 121234-1 Rear Panel Layout (basic configuration) Note that the SFP Ports are either input or output depending upon the type of MADI • card and the type of SFP module installed.
Page 31 Frequency Response: +/- .25dB (20 Hz to 20 KHz) Input Impedance: 200K Output Source Impedance: <50 ohms Common mode rejection: 70 dB (50/60 Hz) MADI/AES10 I/O Impedance: 75 ohms Up to: - 32 pairs of 24 bit, 48 KHz audio Specifications...
Page 32 (All supplies are UL-listed and IEC950 ap¬proved) Input: 100-240 VAC, 50-60 Hz Max Consumption: (power supply capacity) 100 W Physical EIA 19” rack space requirements: 2RU (3.5” / 90mm) All units are 14” deep Environmental Operating Temperature Range: 0-45° C Relative Humidity: 0-90% (Non-condensing) MADI Terminal...
Page 33 Specifications...
Page 34 MADI Terminal...
Page 35 JP2-JP12 1-8 Balanced Digital Audio/Analog Audio pinout connections 1-15 BNC 1-2 Loop Lock 1-18 CFG A 1-4, 1-5, 1-6 MADI I/O 1-6 CFG B silkscreen 1-3 MADI Input 1-12 COMMS 1-9 MADI Output 1-13 Communications indicator 1-9 MADI Translator 1-1...
Page 36 PWR OK 1-7, 1-8, 1-9, 1-11, 1-12, 1-14, 1-17 Ref OK 1-18 Signal detection LEDs 1-7, 1-9, 1-11, 1-14 Specification Detail 1-19 Specifications UT4-528 MADI Input with TDM Board 1-20 SW1 1-5, 1-6 SW1 switch 1-3 Sync detection LEDs 1-7 Timebase module 1-1 Unbalanced AES 1-3 V, 1.2V, 3.3V and +-12V 1-11...
