USER MANUAL
6-1620310
v. 2 25/05/2020
ENGLISH

Advertisement

loading
Need help?

Need help?

Do you have a question about the AllDomus My AMT box and is the answer not in the manual?

Questions and answers

Summary of Contents for Allmatic AllDomus My AMT box

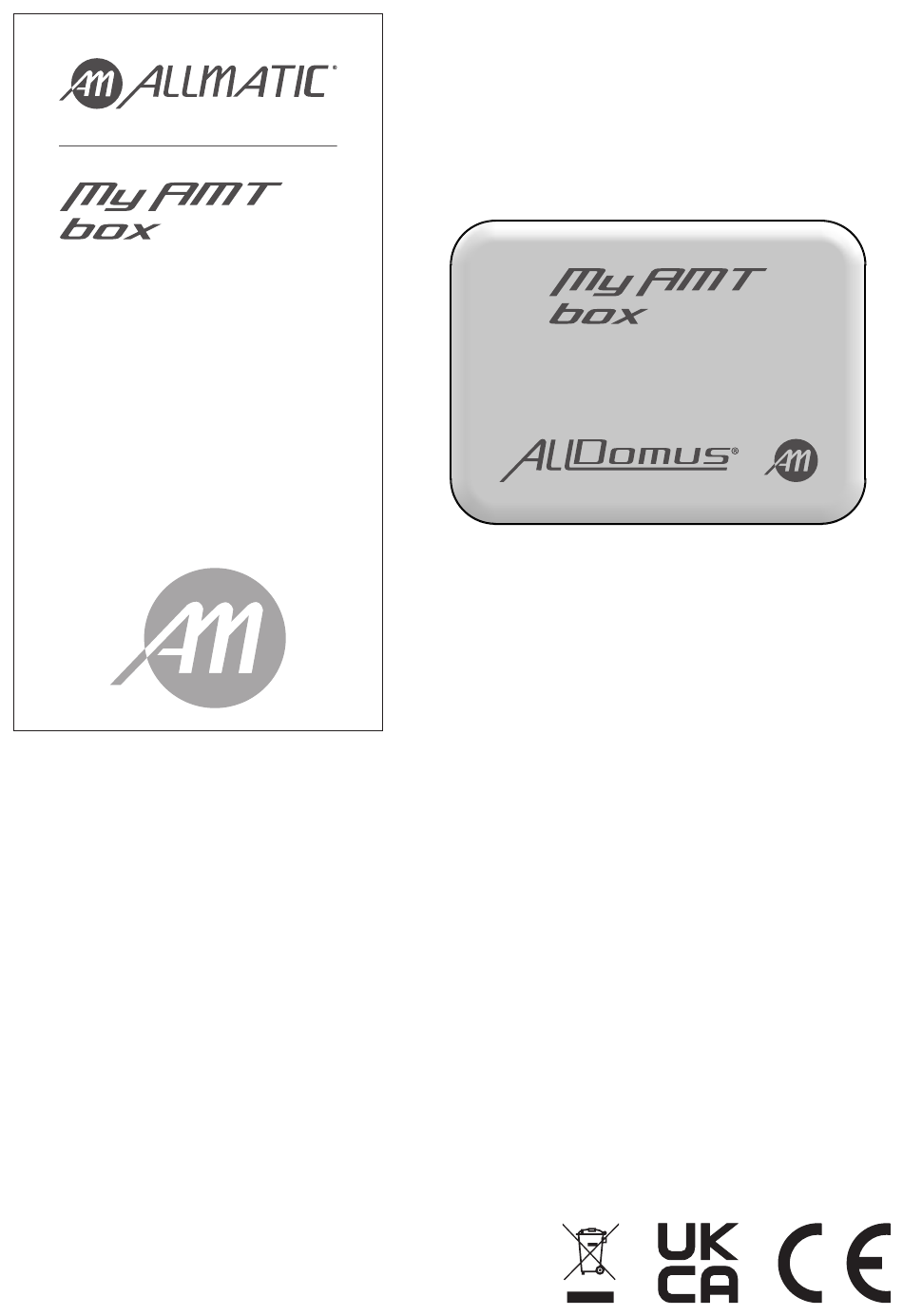

  • Page 1 USER MANUAL 6-1620310 v. 2 25/05/2020 ENGLISH...
  • Page 2 Activation of cloud service for remote access to the system (via internet) Menu structure. Cloud system management (remote) Activation of system updates service Myamtbox network configurations Configuring myamtbox as a network client Network example with connected Client devices Using the Allmatic Domo App 2 / 36 6-1620310 - rev.2 - 25/05/2020...
  • Page 3 INTEGRATED CONTROL SYSTEM FOR AUTOMATION SYSTEMS AND AUXILIARIES Only system able to control: gate automations, garage automations, automations for private parking (chain barrier, barrier, etc...), automations for awnings, blinds or generic Allmatic radio receivers for the activation of other devices FUNCTIONALITY OF THE SYSTEM •...

  • Page 4: System Composition

    • Allmatic standard automation (Allmatic radio code) COMPATIBILITY AND MAIN FEATURES • Standard Allmatic mono-directional radio communication Rolling Code 433.92MHz • Max 250 transmitters (devices e.g. 50 gates, 50 curtains, ...) mono-directional recordable • Ability to control multiple devices (gates, curtains, lights) using a single device (smartphone, tablet...) •...
  • Page 5 MYAMTBOX. STRUCTURE OF THE DEVICE Power input. WARNING! Use only power supply supplied by Allmatic Reset button. Holding down the reset button for 10 seconds, the system returns to the factory configuration (Access Point), and restores the factory password “administrator”.
  • Page 6 MYAMTBOX CONNECTIONS (MORE DETAILS PAG. 26-27) The Alldomus system can be used in different ways, the possible configurations and links are shown below: - Access Point (factory) mode (see points 1, 2), direct access to the wi-fi network generated by MYAMTBOX - Client mode with internet connection (see point 3), MYAMTBOX is a network client, in this case it is therefore necessary to contact MYAMTBOX via the network itself by configuring the network’s own router, MYAMTBOX will be connected to the Internet using the navigation data provided by your router (home, office, ...).

  • Page 7: Recommended Configuration

    Router in use (home, office, company, ...), keep handy the instructions of the Router with related access data (label Router) HOW TO CONNECT MYAMTBOX ON INTERNET: Configuration Router in use (not provided by Allmatic but common Router home, office, company,...) Through the web browser of a connected device, such as smartphone or PC, enter the IP address bar of the router.
  • Page 8 FIRST ACCESS VIA DOWNLOADABLE ALLMATIC APP FROM GOOGLE PLAY OR APP STORE FIRST POWER ON. HOW TO ACCESS MYAMTBOX DEVICE VIA DEDICATED APP (4) (APP AVAILABLE ON GOOGLE PLAY OR APP STORE*). ATTENTION! THE FACTORY DEVICE IS IN ACCESS POINT MODE. INTERNET WILL NOT BE AVAILABLE...
  • Page 9 FIRST WEB ACCESS BROWSER (GOOGLE CHROME, EXPLORER, SAFARI, ...) FIRST POWER ON. HOW TO ACCESS MYAMTBOX VIA A WEB PAGE (BROWSER). ATTENTION! THE FACTORY DEVICE IS IN ACCESS POINT MODE. INTERNET WILL NOT BE AVAILABLE ATTENZIONE! The device code (SEE MYAMTBOX LABEL AND DETAILS P. 3) is a 4-character code that unambiguously identifies the device, and is especially important during the first boot.
  • Page 10 HOW TO ADD AND MANAGE AUTOMATION (MODIFICATION, DELETION) 4.1 CREATING A NEW AUTOMATION FROM A PRE-CONFIGURAT AUTOMATION AVAILABLE In the example below, the creation of a new Rolling Code transmitter created for the command of a roller shutter 1. Click on the button “Automation Management” 2.
  • Page 11 4.2 CREATING A NEW GENERIC AUTOMATION THAT CAN BE FULLY CUSTOMISED In the following example, the creation of a new Rolling Code transmitter, compatible with an Allmatic receiver or control panel 1. Click on the button “Automation Management” 2. Enter the Password (factory first access “administrator”)
  • Page 12 New device configured with 4 standard functions. In the The keys and their configured functions correspond to those of example, the newly created swing gate, with icons related to a standard Allmatic transmitter, for example the model FOR4 the various selected commands. The icons chosen are respectively: 1.
  • Page 13 SAVING THE NEW DEVICE Click on the save icon Add a description to the newly created device (MAX 15 characters) click on the “Save” button SETTING THE TYPE OF TRANSMISSION RELATED TO THE DEVICE CREATED Select the type of transmitter (Tx) you want to create virually BIROL (TECH3 PLUS, B.RO4WN, B.RO OVER, ...) AUTOMATION OF GATES, RECEIVER COMMUNICATION (Rx)
  • Page 14 SETTING THE TRANSMISSION DURATION. The functionality allows to increase the duration of the transmission in the presence of environmental radio disturbances, thus making it more effective. The standard transmission time is 0.5 seconds (factory setting). You can change the transmission duration from 500ms (0.5 The transmission is indicated by a dynamic icon that will last seconds) to 4000ms (4 seconds).
  • Page 15 LEARNING OF THE VIRTUAL DEVICE CREATED ON MYAMTBOX ON THE CONTROL UNIT/ RECEIVER IN USE. For each virtual device created on MYAMTBOX it is possible to associate up to 8 different keys and related functionalities (equivalent to 8 different keys of the same transmitter) ATTENTION! PLEASE REFER TO THE CONTROL UNIT INSTRUCTIONS (EX.
  • Page 16 HOW TO DELETE A DEVICE 1. Click on the button “Automation Management” 2. Enter the password (factory first access “administrator”) 3. Select “Delete device” 4. Select the device you want to delete 5. Confirm by clicking the “YES” button ATTENTION! BEFORE REMOVING A DEVICE FROM THE ALLDOMUS VIRTUAL SYSTEM (MYAMTBOX), MAKE SURE THAT IT HAS BEEN REMOVED AND DISSOCIATED FROM ANY REAL DEVICE (CONTROL UNIT, RECEIVER) TO WHICH IT WAS LEARNED.
  • Page 17 HOW TO MODIFY A DEVICE 1. Click on the button “Automation Management” 2. Enter the password (factory first access “administrator”) 3. Select “Change device” 4. Select the device you want to change 5. Confirm by clicking the “YES” button 6. Once all the necessary changes have been made, confirm the new configuration with the “Save”...
  • Page 18 LOCAL SYSTEM MANAGEMENT (WEB BROWSER INTERFACE). STRUCTURE OF THE MENU. AREA MENU CLOUD Local access password configuration and user personal data (p. 19) Activation and registration of the cloud service to access and control the system remotely (p. 20-22) Area of system updates (p. 23-25) Device management: addition, modification, deletion (pp.
  • Page 19 HOW TO CHANGE DEFAULT PASSWORD AND USER DATA NOTE THE NEW PASSWORD IF CHANGED 2. Enter the password 1. Access the user data area (factory first access “administrator”) 3. Fill in the required fields (Name, Name) and enter the new password twice, then press “configure”. ATTENTION! MAX password 30 characters, no restrictions (uppercase, lowercase, numbers or special characters) ATTENTION! WRITE DOWN THE NEW PASSWORD ONCE RESET, AS IT WILL BE NECESSARY TO USE IT FOR ACCESSING THE SYSTEM AND ALL CONFIGURATION PAGES (EXCEPT CLOUD AREA FOR REMOTE...
  • Page 20 HOW TO ACTIVATE AND MANAGE THE CLOUD SERVICE (TO USE THE SYSTEM REMOTELY OVER THE INTERNET) Attention! Internet connection required. IT IS RECOMMENDED TO ACTIVATE THE CLOUD SERVICE TO USE ALL THE FEATURES OF MYAMTBOX 2. Enter password 1. Access the Cloud management area (factory first access “administrator”) 3.
  • Page 21 5. The system automatically generates the new personal code. 6. Click on the Cloud icon (cloud shape) to access and control This code is required for access to the Cloud, as are required your system remotely Name and Password previously set (point 3) WARNING! Internet connection required 7.
  • Page 22 MENU STRUCTURE. CLOUD AREA ATTENTION! INTERNET CONNECTION REQUIRED (MYAMTBOX CLIENT OF A NETWORK E.G. HOME WI-FI) https://www.allmaticmobile.com Total and immediate deactivation of the Cloud system for security or emergency reasons, it will no longer be possible to access the system remotely until new registration page under construction page under construction Main menu to control devices remotely...
  • Page 23 HOW TO ENABLE THE UPDATE SERVICE Attention! Internet connection required. The availability of an update is indicated by the presence of the symbol shown in the figure below 2. Enter password to login 1. Click on the updates icon from the main menu (factory first access “administrator”) 3.
  • Page 24 5. Read and accept the terms of the service 6. This notification will appear, the same indicates that in a few moments the email will be delivered with the confirmation of the registration to the area updates. 8. After registration this message will appear, clicking on ok 7.
  • Page 25 After registration, you can download MYAMTBOX firmware updates 1. Download the update package (when available) by pressing 2. Press “Run setup” to start the update. The system will “Download updates”. The download will start automatically, reboot. Exit the system and log back in after a few minutes. wait a few minutes.
  • Page 26 MYAMTBOX NETWORK CONFIGURATIONS As mentioned above, the Alldomus system can be used in different ways. - Access Point (see 5.1, 5.2) (DEFAULT), in this case you need to access directly through its network (Wi-Fi “allmaticdomo-xxxx 1 ”) - Clients with internet connection availability (see 5.3), MYAMTBOX in this case becomes a client of another network, it is therefore necessary to contact him through this same network (eg Wi-Fi CASA).
  • Page 27 IP address (LAN cable): WARNING! the IP address is automatically assigned to MYAMTBOX by the router, only if the router in use has an active DHCP server. WARNING! If the router does not have a DHPC server that can assign an IP address to MYAMTBOX, it is NOT POSSIBLE TO CONNECT TO THE ROUTER VIA LAN CABLE.
  • Page 28 HOW TO CONFIGURE MYAMTBOX CLIENT OF A HOME NETWORK (e.g. Wi-Fi HOME, Wi-Fi OFFICE...) 2. Enter the password 1. Access the network settings (factory first access “administrator”) 3. Press Wi-Fi Configuration and set “Connect to Wi-Fi” 4. ( ) Click on “Wi-Fi configuration” and set “Connect to Wi-Fi”;...
  • Page 29 8. Press “Configure” at the end of the settings 7. Static. You can set a static IP address, the same must be in the same IP class of the network released by the router, in example 172.20.0.91. Other examples and cases: - The router issues addresses in class 172.20.0.X: In the MYAMTBOX it is necessary to set the static IP in the range 172.20.0.1 - 172.20.0.254...
  • Page 30 EXAMPLE OF HOME NETWORK (WI-FI AT HOME) WITH VARIOUS CONNECTED CLIENTS Esempio di sistema Router DHCP (WI-FI CASA) con vari dispositivi CLIENT, CLIENT 1 tra cui MYAMTBOX smartphone CLIENT 2 myamtbox CLIENT 3 smart tv CLIENT 4 You can also contact the device configured as a Client with connection via LAN CABLE at the default fixed IP address: 192.168.10.1 30 / 36 6-1620310 - rev.2 - 25/05/2020...
  • Page 31 Web Browser, it has a slightly different interface, however the access modes and credentials remain unchanged Thanks to the Allmatic Domo App, it is possible to control multiple myamtbox gateways from a single control panel (e.g. one in the home, one in the office, one in a second home, etc.).
  • Page 32 Local access Cloud access (www.allmaticmobile.com) If device configured access point: PERSONAL CODE Local system address (by default) USERNAME 192.168.20.1 PASSWORD Password: administrator (by default at first access) See page 20, Cloud service activation and management If the device configured in Client: Once you have entered the data, click on “Login”...
  • Page 33 8. Add a new user 9. Click on Account settings Click on “User” button to access the control panel You can rename “Myamtbox”, e.g. “Office” 10. Click on “Add account”, WARNING! The data for access to 11. Add new user name, example “Home” and confirm by the new gateway (myamtbox) will be the same as in point 3 clicking “OK”...
  • Page 34 13. When this window appears, it means that the user has confirm by clicking on the “Save” button been added and the new Gateway is ready to be used with the Allmatic Domo App 14. Returning to the general panel will be available both Gateways inserted, in the example:...

  • Page 35: Warranty

    DISPOSING OF THE PRODUCT This product is an integral part of automation, and therefore must be disposed of together with it. As with installation operations, even at the end of the life of this product, dismantling operations must be carried out by qualified personnel. This product consists of various types of materials: some can be recycled, others must be disposed of.
  • Page 36 ALLMATIC S.r.l 32026 Borgo Valbelluna - Belluno – Italy Via dell’Artigiano, n°1 – Z.A. Tel. 0437 751175 – 751163 r.a. Fax 0437 751065 www.allmatic.com - E-mail: info@allmatic.com...
