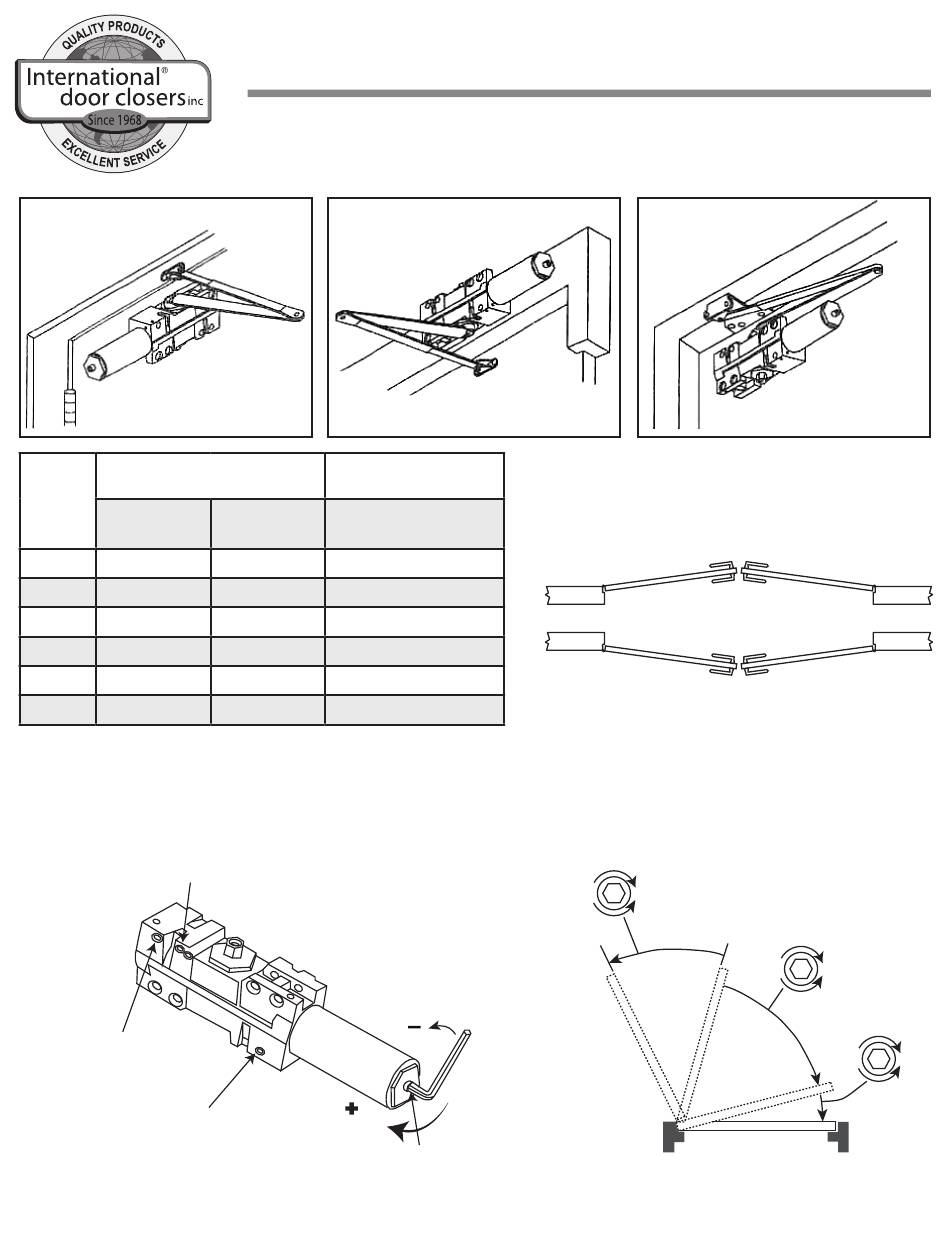

International Door Closers 44CI Series Installation Instructions

Standard Mount
(Pull Side)
Right Hand Door - RH
Left Hand Reverse - LHR
MAXIMUM DOOR WIDTH
DOOR
CLOSER
EXTERIOR
SIZE
(SWING OUT)
1 28"(0.71m)
2 32"(0.81m)
3 36"(0.91m)
4 42"(1.07m)
5 48"(1.22m)
6 54"(1.37m)
C.W. = CLOCKWISE
C.C. W = COUNTER CLOCKWISE
PLEASE NOTE: TURNS REQUIRED ARE APPROXIMATE BECAUSE OF
VARIOUS DOOR CONDITIONS AND LOCATIONS. YOU MAY HAVE TO
FURTHER ADJUST SPRING TENSION TO SUIT YOUR REQUIREMENTS.
CLOSING SPEED
CONTROL SCREW
LATCHING SPEED
CONTROL SCREW
BACKCHECK
SCREW
International Door Closers, Inc.
COPYRIGHT 2023 INTERNATIONAL DOOR CLOSERS, INC
INSTALLATION
INSTRUCTIONS
IT IS IMPORTANT TO CAREFULLY FOLLOW ALL INSTALLATION AND
MOUNTING INSTRUCTIONS WHEN INSTALLING ANY DOOR CLOSER.
Top Jamb Mount
(Push Side)
FULL TURNS OF POWER
ADJUSTMENT SCREW
lNTERIOR 44CI
32"(0.81m) 7 C.C.W
36"(0.91m) 4 C.C.W
42"(1.07m) 0(PRESET)
48"(1.22m) 5 C.W
54"(1.22m) 10 C.W
58"(1.47m) 15 C.W
C.C.W
C.W.
SPRING POWER
ADJUSTMENT SCREW
Right Hand Door - RH
Left Hand Reverse - LHR
US STANDARDIZATION PROCEDURE
LEFT HAND
LEFT HAND
REVERSE BEVEL
Back Check
West: 800-544-4422 • East: 800-225-6737
(Page 1 of 4)
44CI Series
Parallel Mount
(Push Side)
Right Hand Door - RH
Left Hand Reverse - LHR
DOOR HANDING
INSIDE
OUT SIDE
INSIDE
OUT SIDE
DOOR HANDS DETERMINED
FROM OUTSIDE
CONTROL RANGE
Increase
Decrease
Closing
1
2
www.intldoorclosers.com
RIGHT HAND
RIGHT HAND
REVERSE BEVEL
Slow
Fast
Latching
Slow
Fast
3
