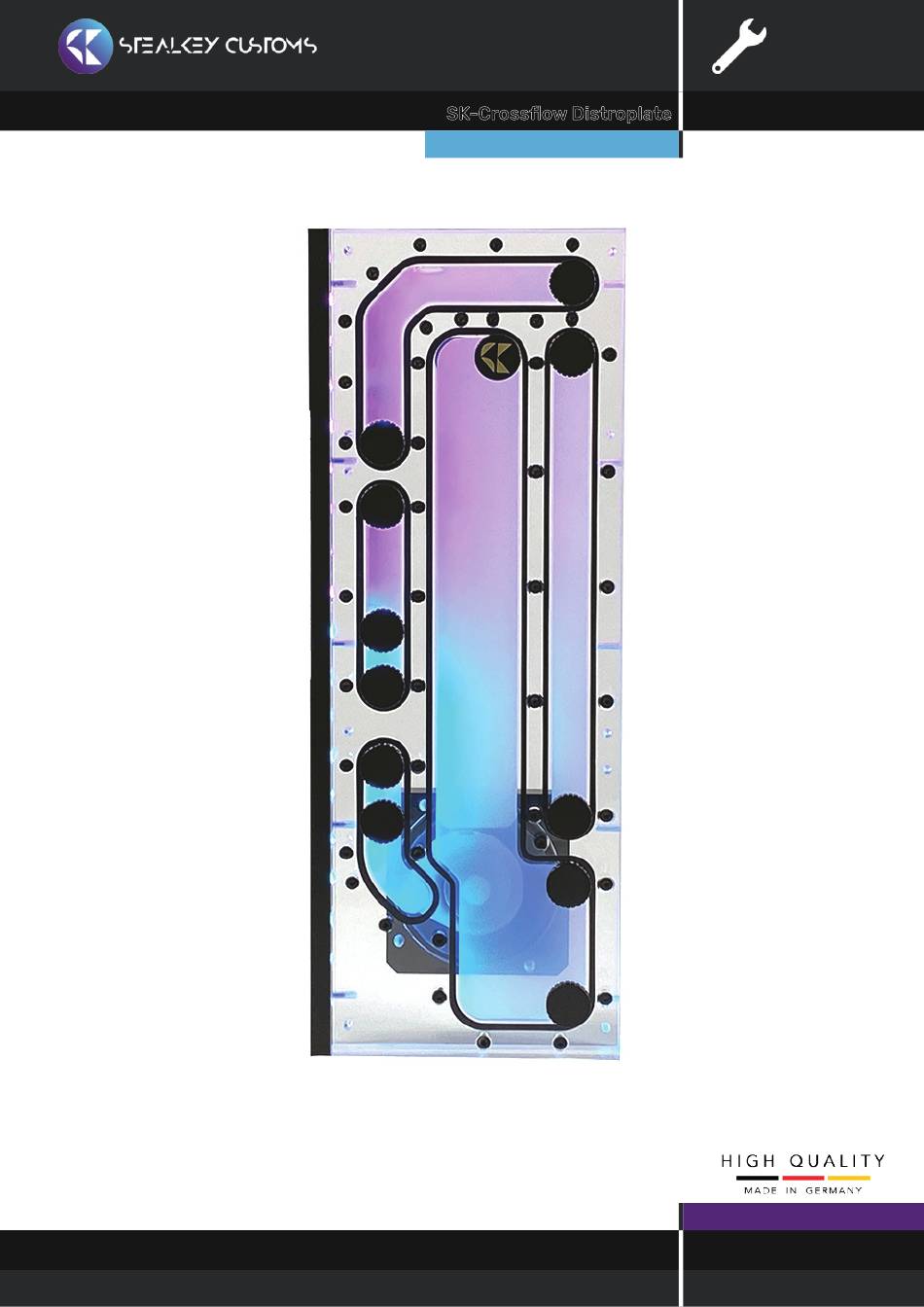

- Page 1 SK-Crossflow Distroplate Montageanleitung Assembly Instructions PNr.: SW10032 EAN: 4260754980010...
- Page 2 SK-Crossflow Distroplate Montageanleitung Assembly Instructions PREPARATION - PLANNING THE WATER CIRCUIT Take a look at the connection overview and plan your water circuit accordingly. The CPU and GPU are connected in parallel. Be sure to use the correct inputs and outputs for the CPU and GPU.
- Page 3 Stealkey Customs cooling products. Do not disas- semble the water block. Doing so will void the warranty. Turn off your system and discharge your body's static charge before proceeding with the installation.
- Page 4 SK-Crossflow Distroplate Montageanleitung Assembly Instructions INSTALLING THE DISTROPLATE Install the distroplate on the radiator grille. Use the 8 M3 screws provided (10 mounting holes, not all need to be used). Do not overtighten the screws (3-5 N/m maximum). 8x M3...
- Page 5 SK-Crossflow Distroplate Montageanleitung Assembly Instructions INSTALLING THE DISTROPLATE When installing the Crossflow in front of a radiator/fan, spacers must be installed to ensure sufficient space for the D5/DDC pump. picture 1 picture 2 Spacer ensures sufficient space (approx. 58mm) between distroplate and fan (on picture 2 only D5 pump adapter is shown).
- Page 6 SK-Crossflow Distroplate Montageanleitung Assembly Instructions CONNECTING THE D-RGB CABLE Connect the D-RGB cable to a compatible motherboard. INSTALLING THE CONNECTIONS Mount the connections with G1/4 thread and close the remaining connections with sealing plugs. Always perform a leak test before applying power to the system compo- nents (max.
- Page 7 SK-Crossflow Distroplate Montageanleitung Assembly Instructions DISTROPLATE DIMENSIONS The dimensions are in mm. 49.3 20.5 20.5 49.3...
