Printed Matter No.9839 0882 01

Publication Date 2018-03-12

Issue No. 01

STpad

Read all safety warnings and instructions

Failure to follow the safety warnings and instructions may result in

electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference

8059095700

WARNING

STpad

Data collector

Operation Manual

Table of Contents

Need help?

Do you have a question about the STpad and is the answer not in the manual?

Questions and answers

Summary of Contents for Atlas Copco STpad

Page 1 STpad Printed Matter No.9839 0882 01 Data collector Publication Date 2018-03-12 Issue No. 01 Operation Manual STpad 8059095700 WARNING Read all safety warnings and instructions Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury.

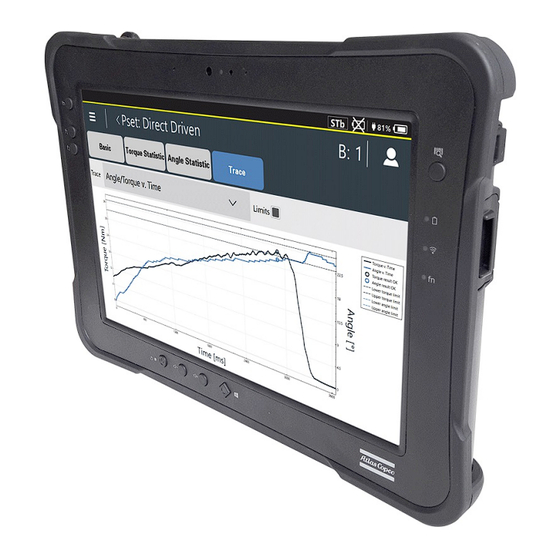

Page 3 General Information The STpad is a rugged device equipped with 802.11, Bluetooth and GNSS for wireless data communica- tions. The STpad is a rugged 10.1” tablet computer capable of 1920 x 1200 resolution. The STpad sup- ports the following operating systems: ■...
Page 4: Operation Overview
Bottom view For more information, see “Bottom View”. See also 2 Side view [6] 2 Front view [5] 2 Rear view [7] 2 Bottom view [6] © Atlas Copco Industrial Technique AB - 9839 0882 01...
Page 5: Front View
Green: On Fully charged Amber: On Charging Amber: Blinking Low power < 15% Not charging / no battery Blue: On FN function switch on Blue: Off FN function switch off © Atlas Copco Industrial Technique AB - 9839 0882 01...
Page 6: Bottom View
Kensington lock Lock the STpad to a stationary ob- ject for security. Pass-through Dual pass-through for WLAN, GNSS and WWAN. Side view Side view: left view Side view: right view © Atlas Copco Industrial Technique AB - 9839 0882 01...
Page 7: Rear View
Barcode reader For installing a barcode reader. (Optional) Embedded fan for cooling. Securing holes Secure the bumpers and the D- rings for the handstrap and shoul- der strap. © Atlas Copco Industrial Technique AB - 9839 0882 01...
Page 8: Touch Screen Features
Digitizer holder Place digitizer here. Identifying the Digitizer You can use the digitizer to control your STpad as with a mouse or keyboard. The digitizer is not waterproof. Take care not to soak it or dip it in water. Click button Dimensions The following image lists the device dimensions without add-ons (mm/inches).
Page 9 After tapping, the mouse icon highlights the right button of the icon in red. The next touch screen tap is treated as a right click. The mouse icon returns to the left button highlighted in red so subsequent taps are treated as left clicks. © Atlas Copco Industrial Technique AB - 9839 0882 01...
Page 10: Getting Started
STpad Getting started Introduction This section provides an outline of the steps necessary to setup a new STpad. A detailed guide follows the listed items, see as follows. For additional technical assistance, contact your local Atlas Copco Customer Center. It is recommended to install or remove accessories on a clean, well-lit work surface. To protect your- self and the device from electrostatic discharge, wear anti-static wrist straps or place the device on an anti-static mat.
Page 11: Powering On The Device
Insert the DC-IN cover correctly to prevent internal damage to the device. Powering On the device Power on the STpad only after connecting all the peripherals and cabling. ■ Press and hold the power button until the screen lights. The device runs through the start-up se- quence and powers up.
Page 12: Installing The Micro Sim Card
Check with your network or cellular service provider for availability and cost rates. Power off the STpad (for more information, see “Powering Off the Device”). Open the left I/O compartment cover (for more information, see “Opening I/O compartment cover”).
Page 13: Installing The Microsd Card
The micro SD card has a beveled edge. Align the micro SD card with the slot making sure that the beveled edge of the micro SD card and the related slot match each other. © Atlas Copco Industrial Technique AB - 9839 0882 01...
Page 14: Removing The Microsd Card
Close the left I/O compartment cover (for more information, see “Closing I/O compartment cover”). See also 2 Opening I/O compartment cover [16] 2 Closing I/O compartment cover [17] Using the digitizer Below are the information when using a digitizer: © Atlas Copco Industrial Technique AB - 9839 0882 01...
Page 15: Removing The Protective Film From The Display
Removing the protective film from the display The front display of the STpad is protected during transport by a transparent film. This film should remain on the front display during assembly to avoid damage to the front display surface. Remove the film only once the assembly work has been completed.
Page 16: Operation
Left I/O compartment cover Right view: Locating the I/O compartment cover Right I/O compartment cover Unlock the latch (only available for the left I/O compartment cover). Pull out the I/O compartment cover. © Atlas Copco Industrial Technique AB - 9839 0882 01...
Page 17 Flip the I/O compartment cover and install. Lock the latch (only available for the left I/O compartment cover). Insert the I/O compartment cover correctly to prevent internal damage to the device. © Atlas Copco Industrial Technique AB - 9839 0882 01...
Page 18 Connecting USB cabling The STpad has one USB port for connecting USB devices (for instance digital camera, scanner, printer, modem, and mouse). The USB ports support USB 2.0 or USB 3.0 devices. Open the left I/O compartment cover (for more information, see “Opening I/O compartment cover”).
Page 19 Align the RS-232 cable with the port in the device and connect it. Turn the locking screws on the cable to secure it to the device. See also 2 Opening I/O compartment cover [16] © Atlas Copco Industrial Technique AB - 9839 0882 01...
Page 20 STpad Handstrap, Carrying Handle and Shoulder Strap The STpad is equipped with a handstrap, a carrying handle and a shoulder strap for convenience and choice. Select the necessary accessory according to customer needs. Install the handstrap either with shoulder strap or carrying handle. However, the handle and shoulder strap cannot be installed together due to space constraints.
Page 21: Removing The Handstrap
Connect the handstrap on the D-rings. When the handstrap is installed, the digitizer can be placed under the strap. Removing the Handstrap Unlock the handstrap from the D-rings. Remove the D-rings. © Atlas Copco Industrial Technique AB - 9839 0882 01...
Page 22 Press in the clips to release them from the metal loop. Remove the clips. Metal loop Connecting the Shoulder Strap ■ Attach the clips to the metal loop on the bumper. © Atlas Copco Industrial Technique AB - 9839 0882 01...
Page 23: Installing The Battery
Make sure that the power switch is switched to ON before installing the standard/external battery (see the paragraph “First time use” for more information). Put the device display side down on a clean work surface. © Atlas Copco Industrial Technique AB - 9839 0882 01...
Page 24: Removing The Battery
Make sure that the latch is securely locked to prevent the battery from falling. Removing the battery Put the device display side down on a clean work surface. Put the battery. Locking switch 2 Release button 3 Battery © Atlas Copco Industrial Technique AB - 9839 0882 01...
Page 25: Connecting To A Wireless Network
Look at the Network icon located at the right side of the taskbar. If the icon displays an X in a red circle, the STpad is not within range of a wireless network. Move to a different spot until the Wi-Fi icon changes status indicating availability to a wireless network.
Page 26: Basic Maintenance
The housing of the STpad is best cleaned with a damp cloth. ■ Use compressed air, a high-pressure cleaner or vacuum cleaner may damage the surface. ■ Use a high-pressure cleaner, the additional risk of water entering the STpad may damage the elec- tronics or touch screen. Touch-screen ■...
Page 27: Basic Troubleshooting
Use the troubleshooting tables in this section to fix problems with the Wi-Fi connection, 802.1x security, or general problems with operating the STpad. When sending the STpad for service, it is recommended to save the STpad data and configuration. RuggON is responsible only for ensuring that the hardware matches the original configuration when repairing or replacing the STpad.
Page 28 Original instructions Atlas Copco Industrial © Copyright 2018, Atlas Copco Industrial Technique AB. All rights reserved. Any Technique AB unauthorized use or copying of the contents or part thereof is prohibited. This SE-10523 STOCKHOLM applies in particular to trademarks, model denominations, part numbers and drawings.
