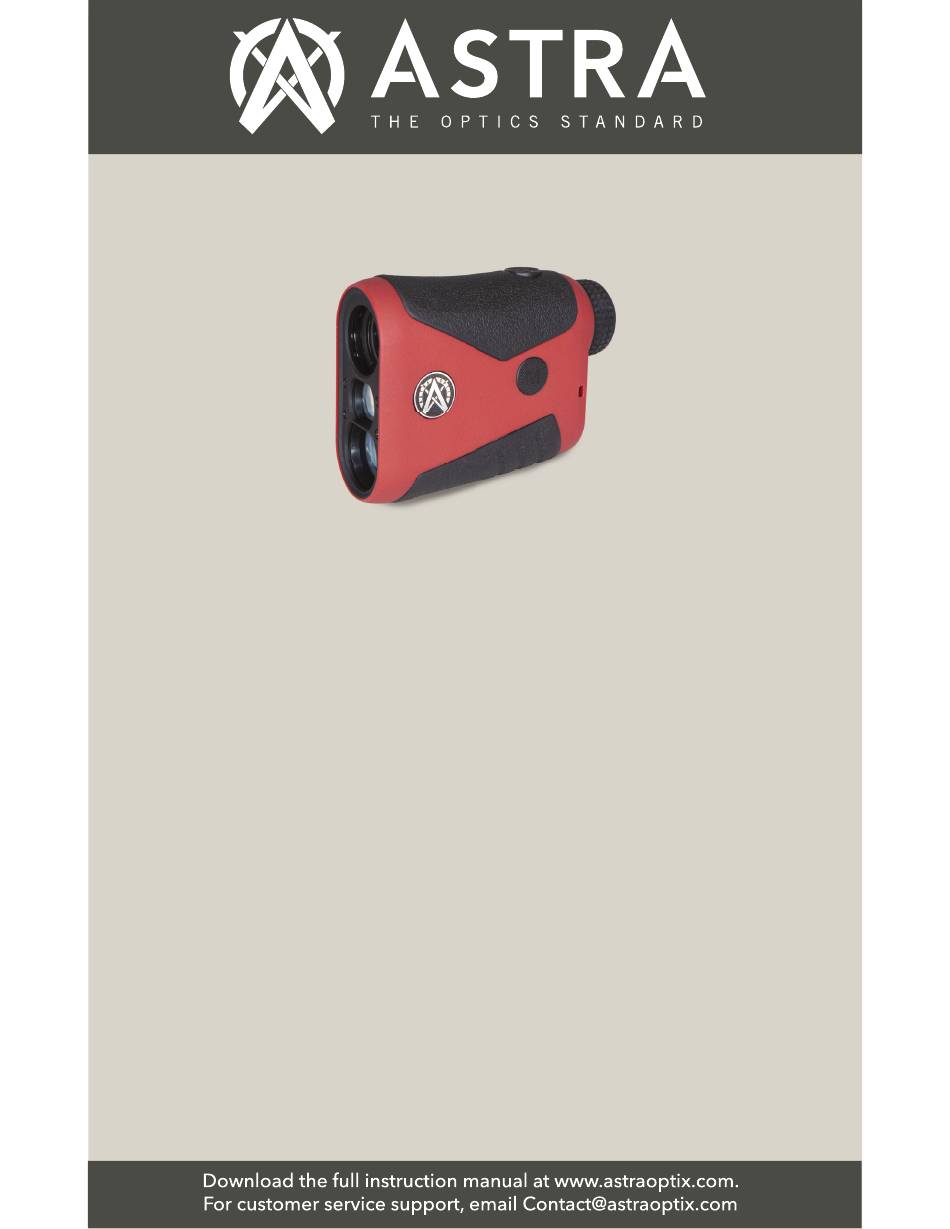

PRO X-1 Golf Laser Rangefinder
Quick Start Guide
Specifications & Features
Magnification
Objective Lens Diameter
Close Focus
Eye Relief
Exit Pupil
Field of View
Water-Resistance Rating
Lens Coating
Housing Material
Dimensions
Total Wt. (including battery)
Laser Type
Display Type
Range Response Time
Battery Type
Battery Life
Laser Range (Reflective)
Laser Range (Tree)
Laser Range (Flag)
Laser Range (Pin Lock Feature)
Range Accuracy (Distance & Angle)
Slope Feature
Pin Lock with Vibration Pulse
Voice Mode
Operational Temperature Range
6 Power
21 mm
6 yards
15 mm
3.5 mm
31.50 ft. at 100 yds.
IPX4 (Water-Resistant)
Fully Multi-Coated
Composite with Rubber Armoring
4"x 1.44"x 3.11"
4.25 oz.
905 nm Class 1 Eye-Safe
Red Reflective OLED
0.1 seconds
CR-2 3-volt Lithium
Approximately 10,000 Readings
6-1,760 yds.
6-1,000 yds.
6-450 yds.
6-250 yds.
+/- 1 Yard & +/- 1°
Yes
Yes
Yes
14°F to 120°F
Advertisement
Related Manuals for Astra PRO X-1
Summary of Contents for Astra PRO X-1
- Page 1 PRO X-1 Golf Laser Rangefinder Quick Start Guide Specifications & Features Magnification 6 Power Objective Lens Diameter 21 mm Close Focus 6 yards Eye Relief 15 mm Exit Pupil 3.5 mm Field of View 31.50 ft. at 100 yds. Water-Resistance Rating...
-
Page 2: What's In The Box
What's in the Box? ◆ Adjustable Neck-Style Lanyard ◆ 6x21mm Laser Rangefinder ◆ Hard Premium Carry Case ◆ Astra Optix™ Decal Sticker ◆ Astra Optix™ Warranty Card ◆ Microfiber Lens Cleaning Cloth ◆ Quick Start Guide ◆ CR-2 3-volt Lithium Battery... - Page 3 Your Rangefinder at a Glance Power (Range) Eyepiece Rubber Button Diopter Grip (Top) Focus Objective Lens (21 mm) Class 1 (905 nm) Eye-Safe Laser Lens Laser Receiving Mode Mode Lens Rubber Button Battery Lanyard Grip Cover Attachment (Bottom) Red Reflective OLED Line of Sight (LOS) Aiming...
-
Page 4: Quick Start
Quick Start 1. Remove plastic insert to connect 3. Adjusting the Red OLED Display battery: Open the battery cover and Brightness: This rangefinder features remove the plastic insert from the top 5 different display brightness intensity of the battery. levels. Hold the Mode Button to adjust the display brightness setting. - Page 5 Quick Start 4. Measuring Distance: Aim the Aiming 5. Change between Slope-On and Reticle on the object you want to range Slope-Off Mode: Simply double click and press the Power Button to display the Mode Button. the distance. Your unit factory default Double click the setting is the Slope-off Mode.
- Page 6 Quick Start 6. Use Pin Lock with Vibration Pulse: 7. Turn On / Off Voice Mode: Voice Our Pin Lock feature provides Mode provides an audio description visual and vibration feedback so you of the ranging distance of your desired can be confident in the distance to the target.
- Page 7 Power (Range) Button down for a few seconds until the rangefinder locates the flagstick. ◆ Under ideal conditions, your Astra Optix™ Pro X-1 Laser Rangefinder can measure the distance of reflective objects out to 1,760 yds. It can also measure a tree out to 1,000 yds.
-
Page 8: Register Your Product
We are here to help! Don't hesitate to reach out to us if you have any questions or concerns about your product. On behalf of the Astra Optix family, we want to thank you for your purchase and support. For customer service support, email Contact@astraoptix.com...
