EDGEVIS VIDEO ROUTER HARDWARE INSTALLATION

Section 1- Basic operations of the unit

The EdgeVis Video Router includes features to support real-time video
streaming, internal edge-based recording, advanced analytics based
alarms and wireless communications. This section covers operations and
connectivity for supported operating modes.

Device Connectors

All of the EdgeVis Video Router connectors are easily accessed, see below for details.
4 5
8
ISSUED: 29 NOVEMBER 2022
1 2 3
7
6

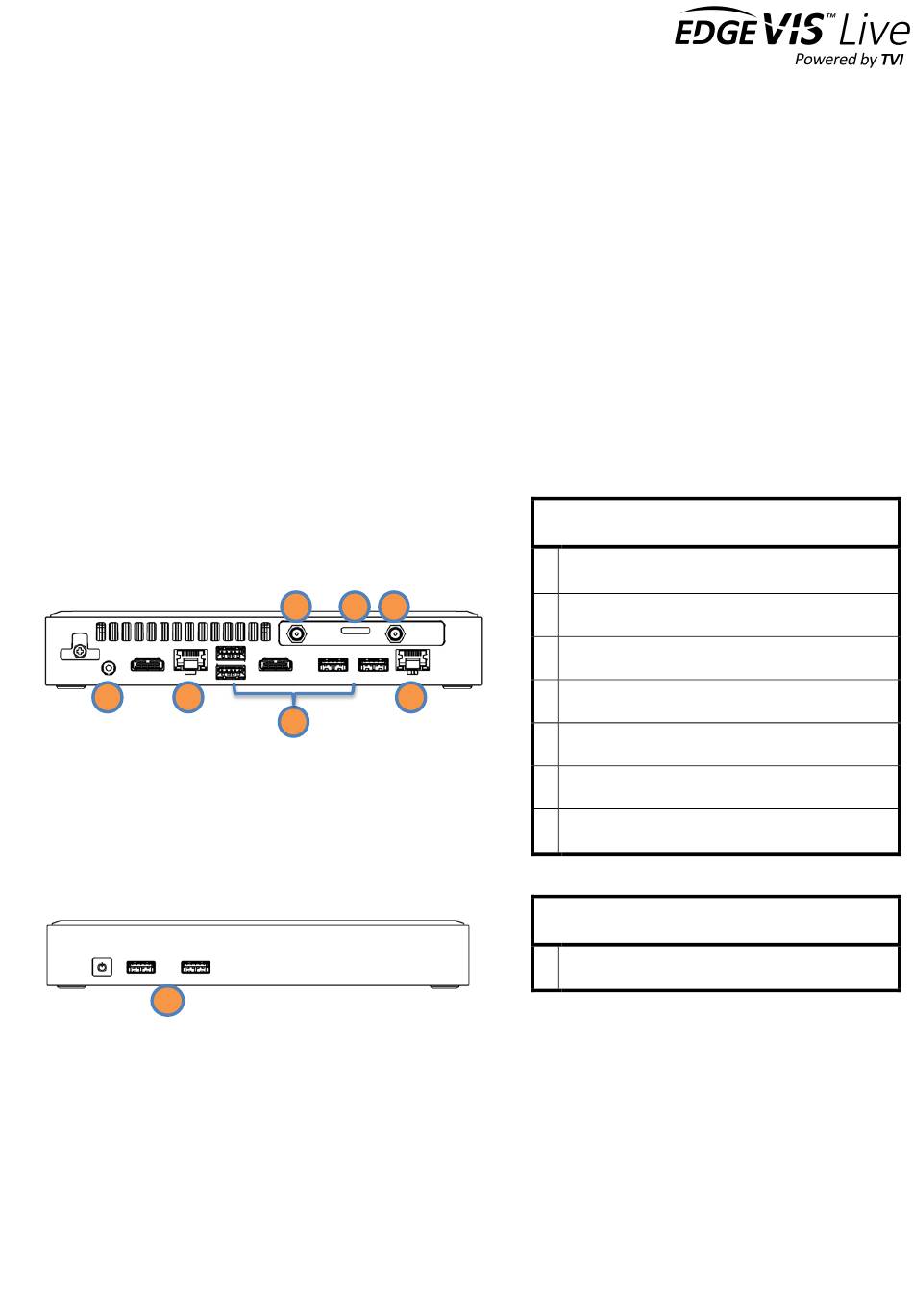

Rear Face Connector Layout
Primary Cellular RF Connector
1
SIM Card Connector
2
3 Diversity Cellular RF Connector
DC Power
4
LAN1 Ethernet Port
5
6 USB Ports
7 LAN2 Ethernet Port
Front Face Connector Layout
USB Ports
8
PAGE 5
