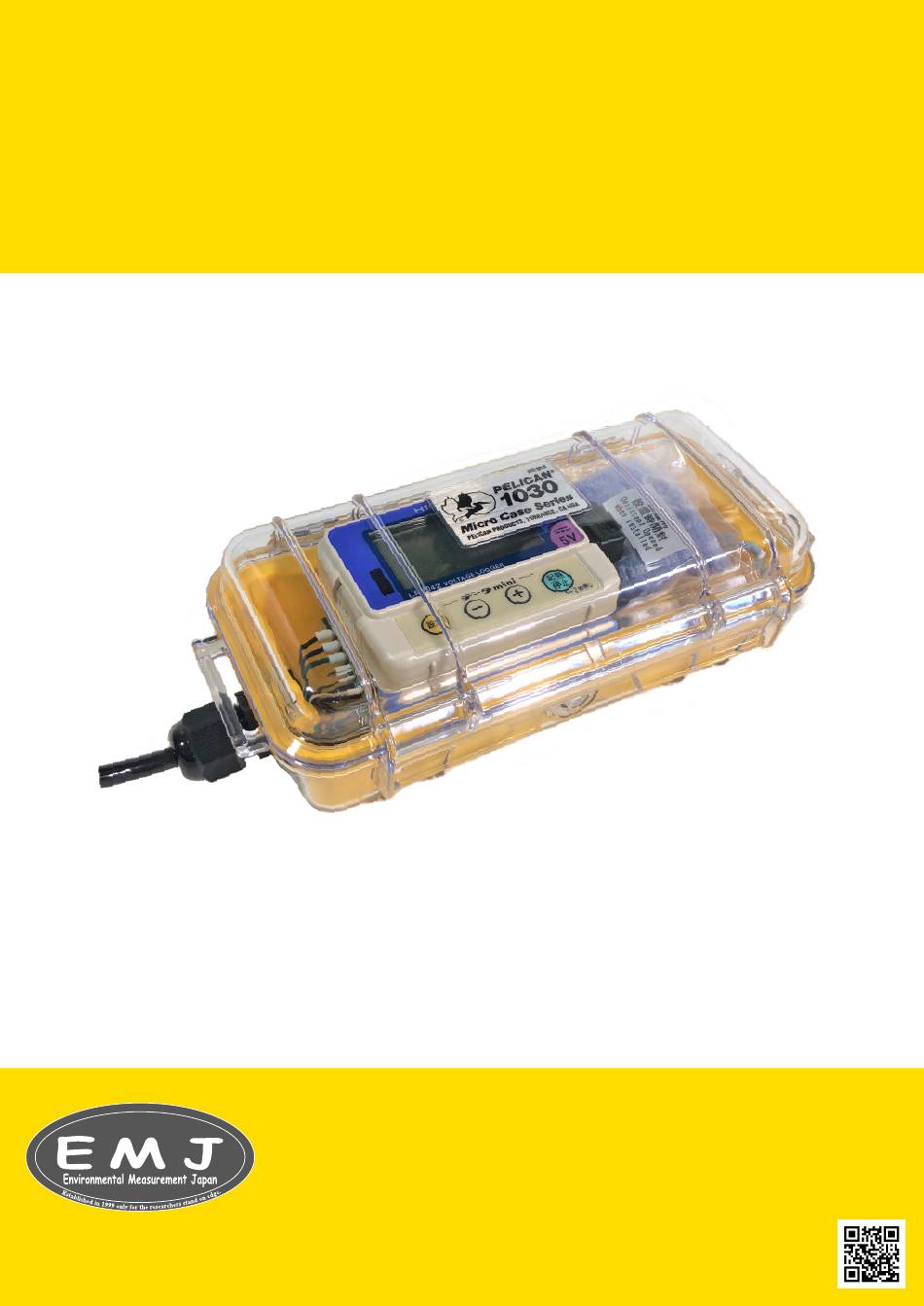

MIJ-12
The Water Proof Logger Manual
Environmental Measurement Japan, CO., LTD.
2-52-42 Takamidai, Fukuoka-city Higashiku, Fukuoka 811-0215, Japan
TEL +81-92-608-6412
FAX +81-92-985-7844

Advertisement

loading
Need help?

Need help?

Do you have a question about the MIJ-12 and is the answer not in the manual?

Questions and answers

Summary of Contents for Environmental MIJ-12

  • Page 1 MIJ-12 The Water Proof Logger Manual Environmental Measurement Japan, CO., LTD. 2-52-42 Takamidai, Fukuoka-city Higashiku, Fukuoka 811-0215, Japan TEL +81-92-608-6412 FAX +81-92-985-7844...
  • Page 2 MIJ-12 The Water Proof Logger Manual Unpacking MIJ-12 is shipped fully assembled. Make sure that all of the following items are included. ・IP68 Case ・LR5041 or 5042 Datalogger ・LR9802 cable ・Silica Gel Bag ・PR-01(Preheat Power Supply Board;if your sensor need preheat function) ・Communication Adapter LR5091 or 5092(Only if you do not have one)

  • Page 3: Par Sensor

    There is a red sticker on the board of [5Vと12V] MIJ-12 Preheat Less Version: How to wire Sensor and Logger I will explain how to wire the MIJ-12 preheatless. No PR-01 base is required as it does not require preheating.

  • Page 4: Troubleshooting

    Caution Please note the following when using the MIJ-12 in the field. ・Open the zipper of the included silica gel and reinsert it into the MIJ-12. ・Tighten the cover of MIJ-12 tightly. Trouble Shooting No data available 1:PR-01 not working? ・Are the battery polarities correct? (Battery polarity +,- may be inserted in the opposite direction by mistake.)
  • Page 5 1.Plug the communication adapter LR5091 or LR5092 into your PC USB port. 2.The LR5000 Utility screen will appear on your PC. Please change various settings arbitrarily in the recording method tab.(The factory setting is recommended.) Environmental Measurement Japan, CO., LTD. 2-52-42 Takamidai, Fukuoka-city Higashiku, Fukuoka 811-0215, Japan TEL +81-92-608-6412...
  • Page 6 Setting:Logger LR5042 or LR5041 3.Click the measurement method tab to set preheat ON/OFF. If you use the MIJ-12 preheat version, set the preheat option. (We recommend 1 second.) Note: Please set preheat to OFF when using the MIJ-12 preheatless version.
  • Page 7 5.000v 1391 DATA 記録 記録 ー ー 確定 確定 停止 停止 Please refer to the HIOKI official page or the attached manual for details Environmental Measurement Japan, CO., LTD. 2-52-42 Takamidai, Fukuoka-city Higashiku, Fukuoka 811-0215, Japan TEL +81-92-608-6412 FAX +81-92-985-7844...
