- Page 1 Time Tailor Live GPI Control TT GPI Control Page Time Tailor Live Addendum: GPI Control ©2007 Editware, Inc. Editware Copyright 2007...

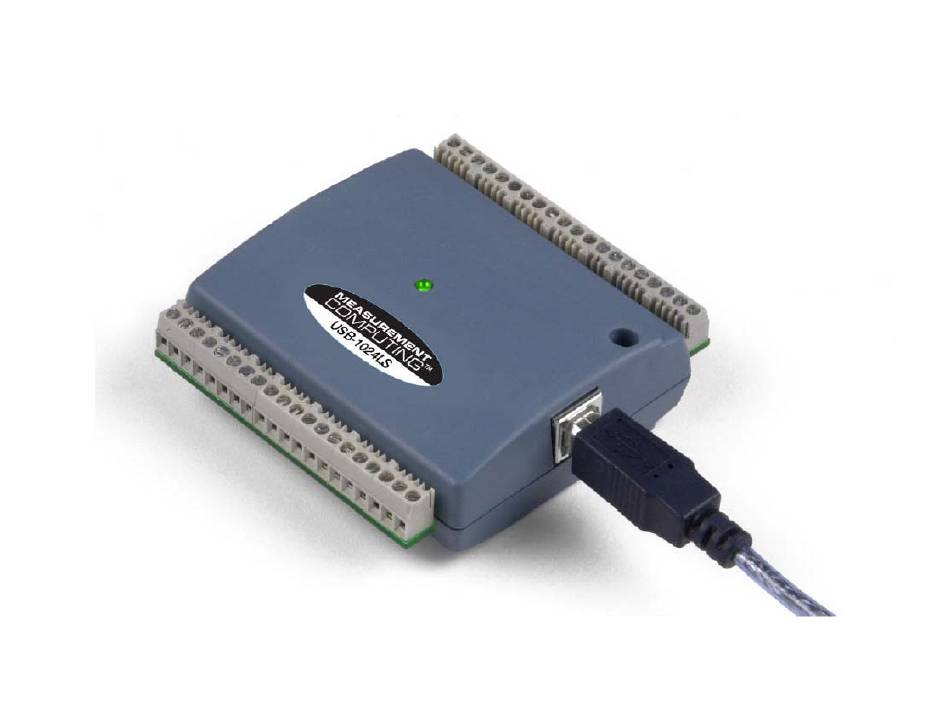

- Page 2 See the Time Tailor Live tutorial for instructions on how to set up Time Tailor tasks. Overview: 1. The external GPI control function requires that the Measurement Computing USB-1024LS and supporting software drivers be installed and enabled on the Fastrack.
- Page 3 Fastrack’s predefined Time Tailor job associated with that port. Any of the GND pins 9, 12, 15, 17, 19, 31 and 40 can be used. Pin 30, +5V is not used in the Time Tailor application. Editware Copyright 2007...
- Page 4 Time Tailor Live GPI Control TT GPI Control Page USB-1024LS Setup and Test Press [GPI] to bring up the GPI dialog. (Just above red Record key) [Click] on USB GPI to bring up the USB GPI settings and test dialog. Editware Copyright 2007...
- Page 5 The delay time can be used to allow an operator to cue VTRs if necessary. A DELAY CHANGE WILL NOT TAKE EFFECT UNTIL YOU PRESS THE SAVE BUTTON AND RESTART FASTRACK. Editware Copyright 2007...
- Page 6 Time Tailor Live GPI Control TT GPI Control Page Setting GPI number on Time Tailor Live job [Click] on GPI drop-down menu to select desired GPI number - A0 through A7. Editware Copyright 2007...
- Page 7 Settings and Test dialog. If a GPI trigger is detected during the countdown, the job associated with the new trigger replaces the currently loaded job and the countdown starts over. [Click] on CANCEL AUTO START to cancel the countdown. The job stays loaded in case it is desired to start it manually. Editware Copyright 2007...
- Page 8 GPI number, the first one in the list with that GPI number will be run when that GPI signal is detected. When a job is triggered by a GPI input, the Start Date and Time are automatically updated with the time the job is run. Editware Copyright 2007...
- Page 9 Timeline starts. Events on the tracks participating in the Time Tailor job move to the left until the job is completed. The Status window at the screen lower left displays relevant information as the job is automatically set up and started. Editware Copyright 2007...
