Thermaltake H200 Internal USB Hub Manual

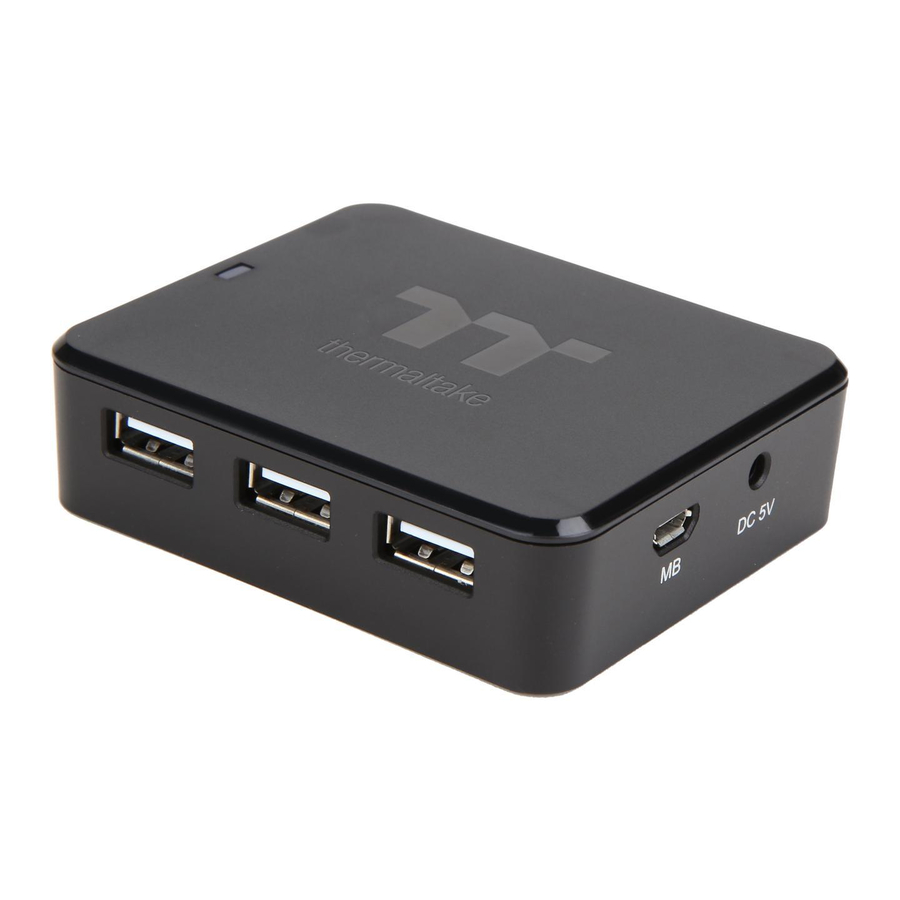

Overview

Overview

Installation Steps

  1. Attach the H200 Internal USB Hub to any steel surface in your case using the embedded magnets. (※ Please keep a safty distance between magnets and all objects that can be damaged by magnetism.)
    Installation - Step 1
  2. Ensure your PC is powered off and connect the hub to your power supply using SATA-to-DC Power Adapter.
    Installation - Step 2
  1. Firmly connect the Micro USB Data Cable to the hub and connect the other end to your motherboard's Internal USB 2.0 9-Pin Header.
    Installation - Step 3
  1. Connect USB devices to the Internal USB 2.0 9-Pin Headers or USB 2.0 Type-A Ports on the hub.
    Installation - Step 4

If the power supply is still unable to function properly after following the above instruction, please contact your local store or Tt branch office for after sales service. You may also refer to Thermaltake's website for more technical support: thermaltake.com
