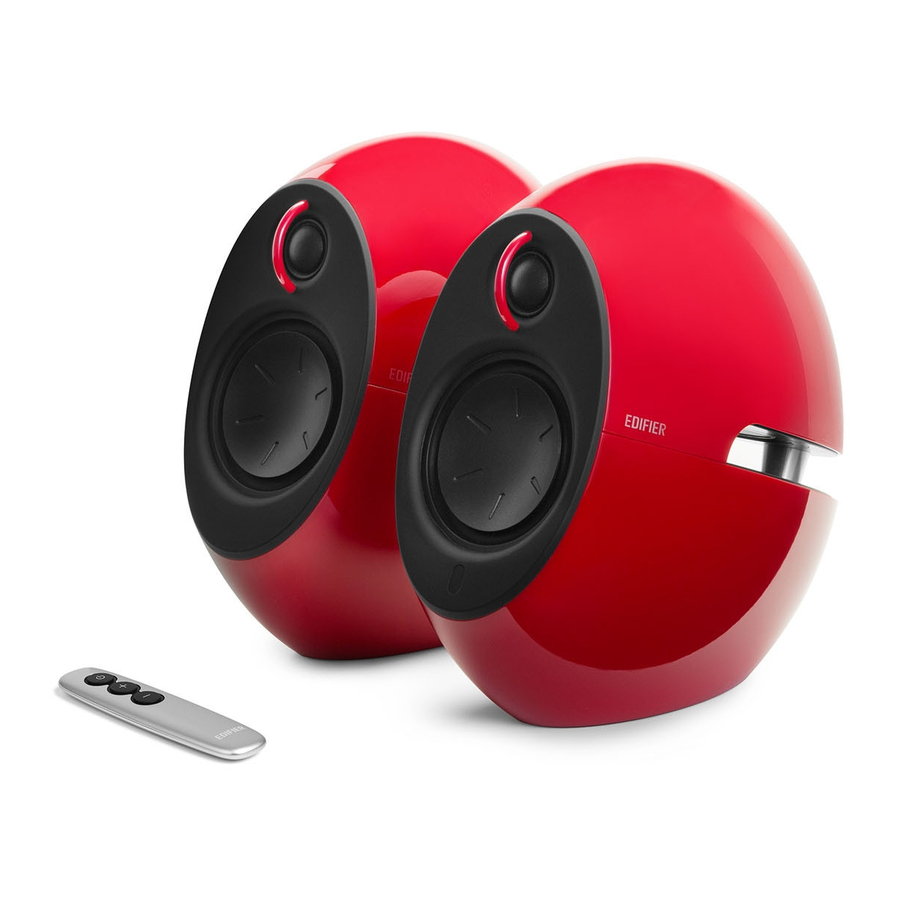

EDIFIER E25HD Powered Speaker System Manual

Important safety instructions

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

EDIFIER strives to provide the best in audio performance and style. All of our speakers are designed and manufactured with the utmost quality and dedication, while leaving a small environmental foot print. Please Visit our website www.Edifier.com for more information. Please read this manual carefully to obtain the best from your new Edifier audio system.

The lightning flash with arrowhead inside the triangle, is intended to alert the user to the presence of un-insulated dangerous voltage within the product's enclosure that may be of a sufficient magnitude to constitute a risk of electric shock to persons.

To prevent the risk of electric shock, do not remove cover (or back). No user-serviceable Parts inside. Refer servicing to qualified Service personnel only.

The exclamation point inside the triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Please leave enough space around the speakers to keep good ventilation (the distance should be above 5cm). Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider tha n the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your sa fety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified bythe manufacturer.
12. Unplug this apparatus during lightning storms or when unused for long periods of time.
13. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus ha s been exposed to rain or moisture, does not operate normally, or has been dropped.
14. The MAINS plug is used as the disconnect device, the disconnect device shall remain readily operable.
15. The Maximum ambient temperature is 45°C

Use only with the cart, stand, tripod, bracket, or table specified by rhe manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

WARNING
DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD
(The remote control supplied with ) This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children, if the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of body, seek immediate medical attention.

Unpack the box

Box contents

Illustrations

1. Standby/ON (Touch and hold "" for approximately 2 seconds)
2. Volume up
3. Volume down
4. LED indicator (green: AUX mode; red: Optical mode; blue: Bluetooth mode.)
5. Optical/AUX input cable
6. Power adapter input
7. Speaker cable output
8. Speaker cable input

1. Connecting the speakers


2. Connecting the speakers to your audio device.


3. If you have Optical output from your TV, DVD etc., connect to optical output from your device.


4. Connect to power outlet


Button function and adjustments

Turn ON speakers/Standby speakers
or
Touch / Press & hold the "" for approximately 2 seconds

When speakers are ON, change input source
Touch the "" once
The LED indicator changes color:
Red: Optical input
Green: AUX input
Blue: Bluetooth mode

Mute function

Touch all " at the same time

Volume up/down
or
Touch / press the ".

Bluetooth operations

Connect a new Bluetooth enabled audio device:

1. Set your device (mobile phone, tablet, MP3/MP4 player etc.,) to search and select "EDIFIER E25HD ".
2. Pair your device with "EDIFIER E25HD ". When the connection is made, the input indicator will change to blue.
3. Play the audio on your paired device and adjust the volume to a desired level.

Bluetooth playback functions:

Additional information

Installing the battery for the Remote Control:

Insert a coin into the slot and rotate counter-clockwise to open the battery compartment, install the new CR 2025 battery (+ electrode upturned) and rotate the cover clockwise to close the compartment.

Note:

1. Only the standard PCM audio signals of sampling clock (44.1/48KHz) are adaptable in optical mode.
2. Bluetooth connectivity and compatibility may vary depending on your device the software version it uses.
3. To enjoy the full Bluetooth functions of this product, please ensure your mobile device has A2DP & AVRCP profile.
4. PIN code for connection is "0000" if needed.

Troubleshooting

• Switch the EDIFIER E25HD off then on and reconnect to thw audio source.
• Ensure Bluetooth function is enabled on your Bluetooth devices.
• Move the devices closer and retry the connection.
• Try another Bluetooth device for connection.
• Check the power cord connection and make sure the wall outlet is on.
• Switch the system off then on and reconnect to the audio source.
• Confirm that the system is ON and not in STBY mode.
• Check the master volume and confirm that it is turned up.
• Check for proper connections of the audio input cable.

For warranty information regarding your new purchase please visit www.edifier.com

If you have any further questions or concerns regarding EDIFIER Products anywhere in the world. please visit our website at: www.edifier.com, or email EDIFIER Support for further assistance at: main@edifier.com.
To contact us by phone : 1-877-EDIFIER (334-3437) in US and Canada; for South America: Please visit www.edifier.com (English) or www.edifierla.com (Spanish/Portuguese) for detailed local contact information.
