ACME BH406 - Bluetooth Earphones Manual

Technical specifications

Type: in-ear, Bluetooth
Frequency response: 20–20,000 Hz
Driver size: 8 mm
Bluetooth version: v4.2 + EDR
Working distance: up to 10 m
Power supply: micro USB, 5 V DC
Microphone: built-in
Battery: Li-poly, 400 mAh (1.48 Wh)
Earphone charging time: up to 30 minutes
Portable charger charging time: up to 2 hours
Standby time: about 100 hours
Playback time: up to 2 hours (4 hours more from a portable charger)

Listening at a high volume for a long time may damage your hearing.

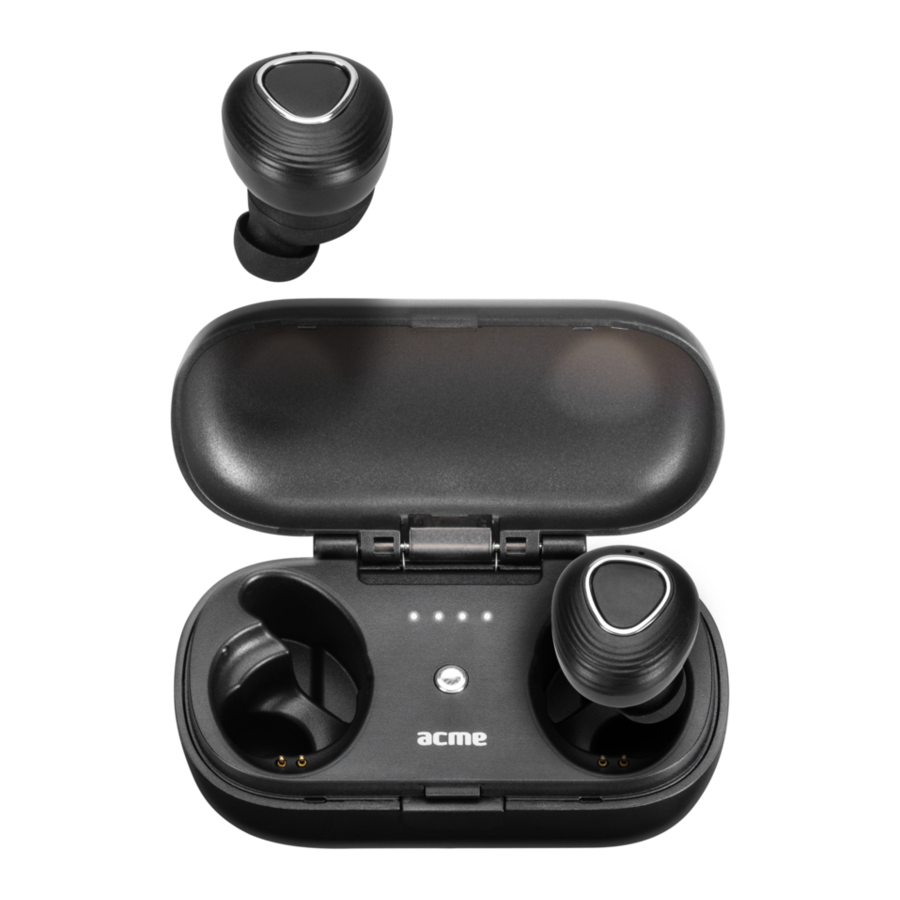

Product overview

1. Earphones
2. Charging case
3. Battery-level check button
4. Charging case battery-level indicator
5. Power (multifunction) button
6. Micro USB charging port

Before you start using the earphones, you must charge the battery and pair the earphones with a compatible device.

Charging the earphones and charging case

The BH406 charging case has an internal, rechargeable battery that must be fully charged before being used for the first time. It takes about 2 hours to fully charge the battery for the first time. If you do not use the device for a long period of time, please charge it once every 2 months to avoid damage to the battery.

• Put the earphones in the charging case and close the cover to charge. During charging, the indicators will show a steady red colour. When the battery is fully charged, the red light will turn off.

• You can charge the charging case by using the wall charger, car charger or micro USB charging cable. When the charging case is fully charged, all four LED lights will turn solid white.
• Battery status of the charging case: click on this button on the charging case and you will see the battery status, as indicated by the four white LEDs. The LEDs will turn off automatically after 4 seconds.


	LED light	Battery level
	1	0~25%
	1.2	25~50%
	1.2.3	50~75%
	1.2.3.4	75~100%

Fully charged earphone batteries have the power for up to 2 hours of talk time (4 hours more from a portable charger). When the batteries are running out of power, the red indicator light will start to flash every 20 seconds on both earphones. This indicates that the earphones need to be charged as soon as possible.

Pairing of the BH406 and Bluetooth devices

First pairing method

• The earphone must be powered off before you begin to initiate pairing. The left earphone is the main one.
• Main earphone pairing: press and hold the power (multifunction) button for 7 seconds. A fast-blinking red/white LED will indicate that the earphone is ready to pair.
• Turn on the Bluetooth function on your device, select BH406 from the list, and pair the earphone. If asked for the PIN code, please enter "0000" to pair and connect the earphone to your Bluetooth device.
• Right earphone (secondary) pairing: press and hold the power (multifunction) button for 3 seconds until the white indicator light flashes 3 times with the prompt of "power on".
• A voice prompt will be heard from both earphones saying that the left and right channels are successfully connected.

If pairing is successful, the earphones will enter an idle mode and the white light will flash once every 7 seconds. If no Bluetooth connection is made within 10 minutes, the earphones will turn off automatically.

Second pairing method

(TWS (True Wireless stereo) connection of earphones)

When both earphones are in an off state, press and hold the power (multifunction) button of both for 7 seconds until the white and red lights flash alternately. They will now be connected together.

• After successful connection, the white and red lights of the left (main) earphone will flash alternately, meaning that the earphones are now in Bluetooth pairing state.
• Turn on the Bluetooth function on your device, select BH406 from the list and pair the earphones. If asked for the PIN code, please enter "0000" to pair and connect the earphones to your Bluetooth device.
• A voice prompt will be heard from both earphones, saying that the left and right channels are successfully connected.

Tips for TWS pairing

TWS pairing is a technical term for using the Bluetooth product. Make two Bluetooth enable devices to be in wireless connection. The left and right channel earphones will be automatically distinguished. The left earphone is the main one and can be paired and connected with a Bluetooth mobile phone. After making a TWS connection, you can play and pause music through both earphones, but only the left (main) earphone has a call function. When the TWS earphones are in an on state, press and hold the power (multifunction) button of one earphone (left or right) for 3 seconds to power them both off. However, when they are in an off state, you need to separately power them on at the same time to reconnect them.

Basic use

Switching the earphones ON or OFF

To switch ON when both earphones are in an OFF state, press and hold the power (multifunction) button for 3 seconds for both earphones at the same time until the white indicator light flashes 3 times with a voice prompt of "power ON".

To switch OFF when both earphones are in ON state, press and hold the power (multifunction) button of one earphone (left or right) for 3 seconds to power off both earphones until the red indicator light flashes 3 times with a voice prompt of "power OFF".

Automatic reconnection

When both earphones are in an OFF state, switch them on at the same time and they will reconnect automatically. And the left (main) earphone will reconnect to the paired mobile phone automatically.

Answer a call

When there is an incoming call, press the power (multifunction) button on the left (main) earphone.

While making phone calls, only the left (main) unit produces sound.

End a call

To end the call, press the power (multifunction) button on the left (main) earphone.

Redial the last dialled phone number

When the BH406 is in idle mode, you can double-click the power (multifunction) button on the left (main) earphone to redial the last dialled number.

Play/Pause

Short press power (multifunction) button to play or pause a movie/music.

Wearing the earphones

To properly wear the earphones:

• Identify the left and right earphones. Look above the earbuds for the L or R.

• Place the earphone in your ear canal. The top of the EarWing should fit tightly into the ridge of the ear.


LED indications

Troubleshooting

Care and maintenance

• Don't use abrasive cleaning solvents to clean the headset.
• Do not expose the headset to extremely high or low temperature as this will shorten the life of electronic devices, destroy the battery or distort certain plastic parts.
• Don't dispose of the headset in a fire as it will result in an explosion.
• Don't expose the headset to contact with sharp objects as this will cause scratches and damage.
• Don't let the headset fall down onto the floor. The internal circuit might get damaged.

Waste electrical and electronic equipment (WEEE) symbol

The use of the WEEE symbol indicates that this product may not be treated as household waste. By ensuring this product is disposed of correctly, you will help protect the environment. For more detailed information about the recycling of this product, please contact your local authority, your household waste disposal service provider or the shop where you purchased the product.
