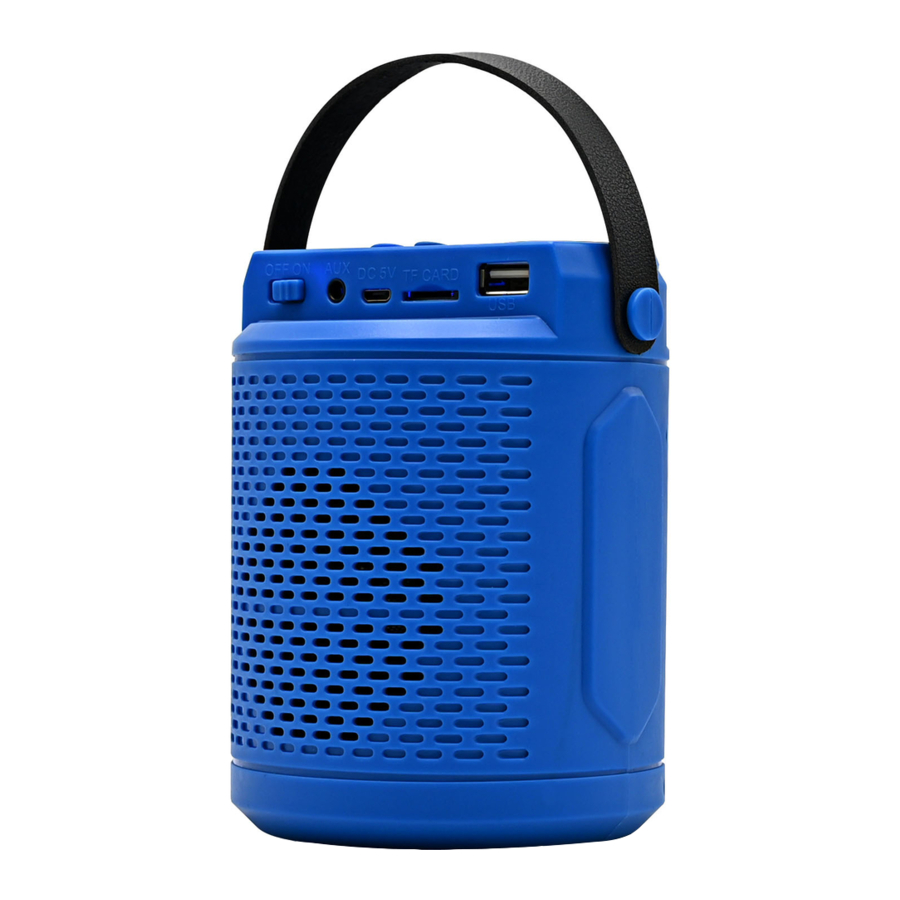

Panacom SP-1310 - Rechargeable Speaker Manual

Table of Contents

Contents

1 FEATURES
2 SPECIFICATIONS
3 WIRELESS BT CONNECTION
4 TF/MICRO SD CARD MODE
5 USB MODE
6 FM MODE
7 AUX MODE
8 CHARGING
9 MODE CYCLE
10 TWS (TRUE WIRELESS STEREO)
11 INTERNATIONAL WARRANTY
12 Documents / Resources
- 12.1 References
- 12.2 Download manual

FEATURES

Please read the manual carefully before operating.

Wireless BT connection
TWS-True Wireless Stereo
FM radio
USB/TF
Rechargeable battery
USB charging cable
Aux in
3W RMS

SPECIFICATIONS

Speaker size: 2.5"
Lithium battery: 600mAh

WIRELESS BT CONNECTION

BT Version: 5.0, with lower power consumption and over 10m meters operating range.
ON/OFF, after the power is turned on, the display "BLUE" flashes and the speaker emits a BT mode tone.
The "BLUE" indicator flashes into the pairing state, open the phone BT, search for the device name, click the device name to confirm and then connect. After the connection is successful, "BLUE" is always on, and the speaker sends a pairing success tone.

TF/MICRO SD CARD MODE

When the speaker is not plugged into the TF card device, it will boot into the BT mode. Inserting the TF card speaker will automatically detect the TF card playback mode, displaying 'PLAY' and playback time. If the speaker has a TF card device, it will enter the TF card mode directly after booting.

USB MODE

When the speaker is not plugged into the U disk, it will boot into the BT mode. Inserting the U disk, speaker will automatically detect the USB playback mode, displaying 'PLAY' and playback time. If the speaker has a U disk, it will enter the TF card mode directly after booting.

FM MODE

Press the button 'MODE', enter into FM mode. FM Frequency is 87.5Hz – 108.0MHz.
This speaker has a built-in radio antenna, needn't an external antenna.
Press and hold the button 'PLAY/PAUSE' to automatically search the station, press the "PLAY/ PAUSE' button to pause.

AUX MODE

Plug one end of the 3.5MM audio cable into the speaker AUX jack, the speaker will automatically detect the AUX mode, and the other 3.5MM plug is connected to the phone or computer.

CHARGING

Plug the USB cable into the speaker to connect to the 5V charger or computer to charge for inside Li-battery.
The item has a red light on the charging indicator. When charging, the indicator light is on. When it is full, the indicator light is off.

MODE CYCLE

Press 'MODE' button to switch USB / TF / BT / FM / AUX. (Note: USB, TF, AUX are only used when USB is plugged in.)

TWS (TRUE WIRELESS STEREO)

Use your mobile phone connect one BT speaker successfully firstly, Under BT mode, double click Play/Pause button of another BT speaker, then it can enter into TWS pairing successfully.

INTERNATIONAL WARRANTY

Terms and Conditions

Panacom warrants the operation of this product to be free from any manufacturing and/or material defect for a period of 6 months from the date of purchase by the user.
This warranty is limited to the repair and/or replacement of this product, according to our own criterion, charge within the stipulated term and it does not extend to consequential or incidental damages to other products that may be used with this unit.
The warranty shall be voided in the following cases:
1. repair or attempt to repair by third parties not authorized by the company.
2. in case of performing any type of cut in connection cables, plugs, connectors, or other adapters different from the original ones provided by the company.
To make this warranty effective, you shall contact the Authorized Service Center of your country and they shall carry out the pertinent procedure. In order to start the necessary procedure to get said warranty, you shall hand in the Original Purchase Invoice where the purchase date, dealer name and product identification shall be stated clearly.
Transportation, freight, stay and/or insurance expenses, if any, are not covered by this warranty.
