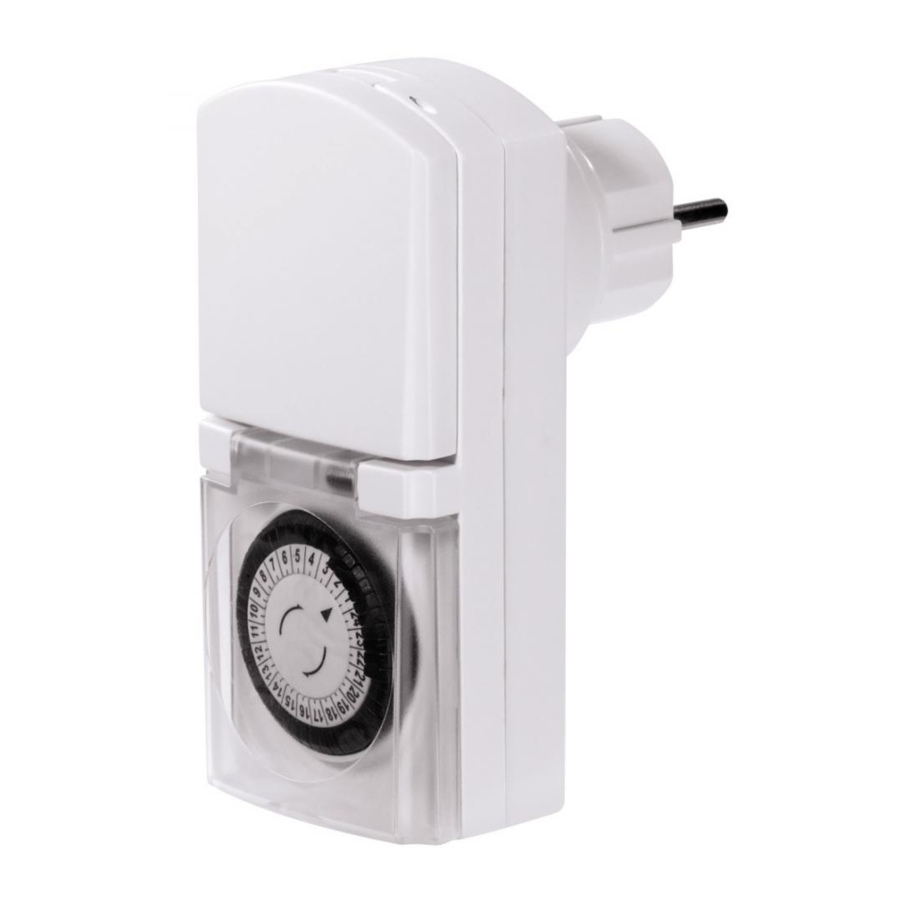

Hama Mech. Daily Timer Outdoor Mini 121953, 137262 Manual

Programming the on and off times

To program the on and off times, push the black tabs down that correspond to the desired time. 1 tab corresponds to 30 minutes. If a longer time period is required, then the corresponding number of tabs (increments of 30 minutes) must be pushed down.
Switch-off times: tab position > up

Setting the current time

Turn the time dial clockwise until the arrow on the inner ring of the dial points to the current time.

Connecting the timer switch to the top mains, connecting electrical devices to the timer switch

Insert the timer switch's plug into a 230 V socket with earth contact. Then insert the mains plug (IP44) of the electrical device to be switched into the timer's socket with earth contact. The product may only be used indoors or in protected outdoor areas (e.g. below eaves/roof overhang, in a garage, etc.). _bottom The timer switch may only be operated in the position described in the following. The socket must face upwards and the dial for setting the time must face downwards.

Technical specifications

230 V~ / 50 Hz
16 A ohmic load; 2 A inductive load (motorised devices)
24 hour timer switch range (in 30 min. increments)

Safety notes

The timer meets the requirements for the IP 44 rating, which means it is splash-proof and can be used outdoors. Water jets should not be aimed at the product (e.g. a garden hose or other irrigation systems)! Operate the product either indoors or in protected outdoor areas (e.g. below eaves/roof overhang, in a garage, etc.). Protect the product from rain. Otherwise there is a risk of a life-threatening electric shock!
Never connect the timer switch to an extension cable or adapter. Only plug it directly into the socket, otherwise it can overheat.
Do not operate the product outside the power limits given in the specifications.
Disconnect from the mains before cleaning the device.
Clean the device using only a dry, lint-free cloth.
Do not use this product with any devices that are motorised or any devices that have a rotating component or workpiece. There is a risk of injury.
Immediately disconnect the device from the mains if defects occur and do not operate it any longer.
Repair work may only be performed by authorised specialists.
Keep this product, as all electrical products, out of the reach of children!
Connect the product only to a socket that has been approved for the device. The socket must be installed close to the product and must be easily accessible.
The product may only be operated with the type of power supply network described on the name plate.

Warranty Disclaimer

Hama GmbH & Co. KG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product or from failure to observe the operating instructions and/ or safety notes.

Note on environmental protection

After the implementation of the European Directive 2012/19/ EU and 2006/66/EU in the national legal system, the following applies: Electric and electronic devices as well as batteries must not be disposed of with household waste. Consumers are obliged by law to return electrical and electronic devices as well as batteries at the end of their service lives to the public collecting points set up for this purpose or point of sale. Details to this are defined by the national law of the respective country. This symbol on the product, the instruction manual or the package indicates that a product is subject to these regulations. By recycling, reusing the materials or other forms of utilising old devices/Batteries, you are making an important contribution to protecting our environment.
