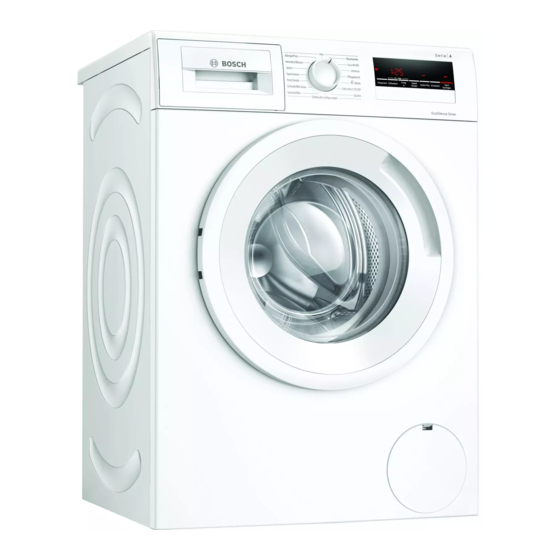

- Page 1 Translated from German to English - www.onlinedoctranslator.com Washing machine WAN282A2 [de] Use and assembly instructions...
-
Page 2: Table Of Contents
table of contents 1 Security ........4 11 Laundry ........34 1.1 General information ....4 11.1 Preparing the laundry ....34 1.2 Intended 11.2 Sorting laundry ....35 use ........4 11.3 Degree of pollution ... 35 1.3 Restriction of the user 11.4 Care symbols on the care group ........ - Page 3 16 Cleaning and care ....44 17 Eliminating malfunctions ....51 18 Transport, storage and Disposal ......... 59 18.1 Dismantling the device ....59 18.2 Use transport locks ........59 18.3 Putting the device into operation again ........60 18.4 Disposing of old devices ....60 19 Customer service ......
-
Page 4: Security
de safety 1 security Please note the following safety instructions. 1.1 General information ¡ Read this guide carefully. ¡ Keep the instructions and the product information for later use or for a subsequent owner. ¡ Do not connect the device if it has been damaged in transit. 1.2 Intended use Use the device only: ¡... -
Page 5: Safe Installation
safety de 1.4 Secure installation When installing the device, follow the safety instructions. WARNING - Risk of Electric Shock! Improper installations are dangerous. ▶ Only connect and operate the device in accordance with the information on the nameplate. ▶ Only connect the device to an alternating current power supply via a properly installed socket with earthing. - Page 6 de safety WARNING - Risk of Fire! Using an extended power cord and unapproved adapters is dangerous. ▶ Do not use extension cables or multiple socket strips. ▶ If the power cord is too short, contact customer service. ▶ Use only adapters approved by the manufacturer. WARNING - Risk of Injury! The heavy weight of the device can lead to injuries when lifting.
-
Page 7: Safe Use
safety de CAUTION - Risk of Injury! The device can vibrate or move during operation. ▶ Set up the device on a clean, level and firm surface. ▶ Align the device with the device feet and a spirit level. There is a risk of tripping if the hoses and mains connection cables are improperly laid. - Page 8 de safety Penetrating moisture can cause an electric shock. ▶ Use the device only in closed rooms. ▶ Never expose the device to extreme heat and moisture. ▶ Do not use steam cleaners, high pressure cleaners, hoses or showers to clean the device. WARNING - Risk of damage to health! Children can lock themselves in the device and endanger their lives.
- Page 9 safety de CAUTION - Risk of Injury! The cover plate can break when climbing or climbing on the device. ▶ Do not step on or climb onto the device. The appliance can tip over if you sit or lean on the open door. ▶...
-
Page 10: Safe Cleaning And Maintenance
de safety 1.6 Safe cleaning and maintenance When cleaning and maintaining the device, please observe the safety instructions. WARNING - Risk of Electric Shock! Improper repairs are dangerous. ▶ Only trained specialists are allowed to carry out repairs on the device. -
Page 11: Avoid Property Damage
Avoid property damage de Make sure that the interior ▶ Avoid property damage the diameter of the tap is at least 17 mm. Make sure that the length of the ▶ Thread at the connection to the Follow these instructions to avoid water tap is at least 10 mm. -
Page 12: Environmental Protection And Saving
de Environmental protection and saving No hard abrasive pads or ▶ Reduce the washing temperature for Use cleaning sponges. lightly and normally soiled laundry. The device only with water and a ▶ clean with a soft, damp cloth. a At lower temperatures the device uses less energy. -
Page 13: Installation And Connection
Set up and connect de Completely remove packaging material Set up and and protective covers from the device. Connect For the environmentally friendly disposal of the packaging material, 4.1 Unpack the device please refer to the information on the subject Note: Note the information on →... -
Page 14: Scope Of Delivery
de Set up and connect 4.2 Scope of delivery After unpacking, check all parts for transport damage and the complete consistency of delivery. Washing machine WARNING Risk of electric shock! Accompanying documents The device contains live parts. Touching live parts is dangerous. Water inlet hose Cover caps Not the device without a cover plate... -
Page 15: Remove Transport
Set up and connect de CAUTION! requirements Installation site If the device is set up in areas with a In a kitchen ¡ It's a line width risk of frost or outdoors, residual frozen water can damage the device from 60 cm and frozen hoses can tear or burst. - Page 16 de Set up and connect Pull the hoses out of the holders. Remove the 4 sleeves. Insert the 4 cover caps. Loosen and remove all screws of the 4 transport locks with a SW13 spanner. distant . Press down the 4 cover caps.
-
Page 17: Connecting The Device
Set up and connect de 4.5 Connect the device Carefully open the tap and check whether the connection points are Connect the water inlet hose Notes tight. Connection types water drain ¡ Note the information on the subject of security → page 4 The information will help you to connect this device to the water drain. -
Page 18: Aligning The Device
de Set up and connect To align the device, turn the device feet. Check the alignment with a spirit level. 4.6 Align the device To reduce noise and vibrations and to prevent the device from wandering, align the device correctly. Note: Note the information on security →... - Page 19 Set up and connect de Plug the power cord of the device into a socket near the device. The connection data of the device can be found in the technical data → Page 63. Check that the power plug is firmly seated.
-
Page 20: Getting To Know Each Other
de To get to know 5 Getting to know each other 5.1 Device Here you will find an overview of the components of your device. Depending on the device type, details in the picture may differ, e.g. B. Color and Shape. -
Page 21: Detergent Drawer
To get to know de 5.2 Detergent drawer Chamber II: ¡ Detergent for the main Laundry ¡ Softener ¡ Bleach ¡ Stain remover Chamber : ¡ softener ¡ Liquid starch ¡ Impregnating agent Chamber I: ¡ Detergent for the pre-wash ¡... -
Page 22: Display
de Display 6 display The display shows the current setting values, selection options or Note texts. designation description advertisement 0:40 Approximate estimated program duration or Program duration / remaining time of the program. Remaining time of the pro gram The end of the program has been set and Ready in - time the remaining hours are displayed. - Page 23 Display de designation description advertisement Start pause Start, cancel or pause ¡ lights up: The program is running and can canceled or paused. ¡ flashes: the program can start or to be continued. - - - Program status Rinse hold Program status End of program ¡...
-
Page 24: Buttons
de Keys 7 buttons The selection of the program settings depends on the set program. You can see the selection options for each program in the view for → "Programs", page 26. selection description button Start / reload ¡ start Start, cancel or pause the program. - Page 25 Keys de selection description button Rinse plus ¡ activate Activate or deactivate an additional rinse. ¡ deactivate Recommended for particularly sensitive skin or in regions with very soft water. 25th...
- Page 26 de Programs prewash Sling - -- (Rinse hold) Rinse plus Speed Perfect max. number (rpm) max.temperature (° C) max.load (kg)
- Page 27 Programs de prewash Sling - -- (Rinse hold) Rinse plus Speed Perfect max. number (rpm) max.temperature (° C) max.load (kg)
- Page 28 de Programs prewash Sling - -- (Rinse hold) Rinse plus Speed Perfect max. number (rpm) max.temperature (° C) max.load (kg)
- Page 29 Programs de prewash Sling - -- (Rinse hold) Rinse plus Speed Perfect max. number (rpm) max.temperature (° C) max.load (kg)
- Page 30 de Programs prewash Sling - -- (Rinse hold) Rinse plus Speed Perfect max. number (rpm) max.temperature (° C) max.load (kg) 30th...
- Page 31 Programs de prewash Sling - -- (Rinse hold) Rinse plus Speed Perfect max. number (rpm) max.temperature (° C) max.load (kg)
- Page 32 de Programs prewash Sling - -- (Rinse hold) Rinse plus Speed Perfect max. number (rpm) max.temperature (° C) max.load (kg)
-
Page 33: Accessories
equipment de 9 accessories V use original accessories. It is tailored to your device. Order number Cold water or Aquastop WMZ2381 Extension of water supply water inlet running hose extend hose (2.50 m). Improve the stability of WMZ2200 Retaining tabs the device. -
Page 34: Laundry
de Laundry Pull out the detergent drawer. Slide in the detergent drawer. Pour the powder detergent into To start the program, click on compartment II. Start / reload to press. a The display shows the remaining Program duration. a The display shows after program end: "End". -
Page 35: Sorting Laundry
Laundry de - Close duvet covers and 11.2 Sorting laundry pillowcases Note: Note the information on - Close all zips, Velcro fasteners, security hooks and eyes → page 4 and avoid damage to property. the → Page 11, to use your device - Tie the fabric belt and apron safely. -
Page 36: Care Symbols On The Care Labels
de Detergents and care products 11.4 Care symbols on the care labels The symbols refer to the recommended program and the numbers in the symbols to the maximum recommended washing temperature. symbol Recommended program Washing process cotton normal gentle Easy-care particularly gentle Fine / silk for hand washing... -
Page 37: Detergent Dosage
Detergents and care products de textiles program temperature laundry detergent colorful textiles Easy-care from cold to 60 ° C Colored detergent / Delicates detergent without easy-care fibers or synthetic optical brighteners Mild detergent delicate fine Fine / be- from cold to 40 ° C Textiles made of silk or viscose Wool... -
Page 38: Basic Operation
de Basic operation 13.3 Adjusting the program 3 basic settings service Depending on the program and program progress, you can adjust 13.1 Switch on the device the settings or activate and deactivate them. Turn the program selector to a program ▶... -
Page 39: Detergent
Basic operation de Unfold the laundry and place it in Insert the detergent drawer. the drum. 4. Note: Make sure that no laundry is jammed in the door. Close the door. 13.5 Use dosing aid for liquid detergent If you order the dosing aid as an accessory, you must use the dosing aid. -
Page 40: Starting The Program
de Basic operation 13.7 Start the program 13.10 Adding laundry Note: If you want to change the time Note: Note the information on until the end of the program, first security → set the Ready in time. page 4 and avoid damage to property. the →... -
Page 41: Removing The Laundry
Parental controls de Wipe the rubber sleeve dry and 13.13 Remove the laundry remove any foreign bodies. Note: Note the information on security → page 4 and avoid damage to property. the → Page 11, to use your device safely. Open the door. - Page 42 de Parental controls In order not to abort the current program, the program selector must be on the initial program. a goes out in the display.
-
Page 43: Basic Settings
Basic settings de 1 5 basic settings You can adjust your device to your needs. 15.1 Overview of the basic settings Here you will find an overview of the basic settings of the device. Basic Program value description position sition End signal 0 (off) Adjust the volume of the signal... -
Page 44: Change Basic Settings
de Cleaning and care 15.2 Change basic settings All detergents fresh shelf spray residue let struggles residue or easier Set the program selector to Residues so residue-free position 1. remove. remove away. Residual water can The appliance door dry off, and the washing middle drawer reduces odor... - Page 45 Cleaning and care de Pull out the detergent drawer. Insert the insert and click into place. Press down the insert and remove the detergent drawer. Clean the opening for the detergent drawer. Press the insert out from the bottom up. Slide in the detergent drawer.
- Page 46 de Cleaning and care Slide a sufficiently large container 16.5 Cleaning the drain pump under the opening. Clean the drain pump in the event of malfunctions, e.g. B. in the case of blockages or rattling noises. Empty the drain pump Note: Note the information on security →...
- Page 47 Cleaning and care de Clean the drain pump 8th. CAUTION - scalding drive! The detergent solution becomes Note: Note the information on hot when washing at high security → temperatures. page 4 and avoid damage to property. the → Page 11, to use your device Do not touch the hot detergent ▶...
- Page 48 de Cleaning and care Insert the maintenance flap and Clean the water drainage hose and the siphon socket. snap into place. Close the maintenance hatch. 16.6 Clean the water drainage hose on the siphon If the water drainage hose on the siphon is dirty or the detergent solution is not pumped out, you must clean it.
- Page 49 Cleaning and care de Connect the water inlet hose and Clean the strainer on the tap check for leaks. Note: Note the information on security → page 4 and avoid damage to property. the → Page 11, to use your device safely.
- Page 50 de Cleaning and care Take out the sieve with a pair of tongs. Clean the sieve with a small brush. Put the sieve back in place. Connect the hose and check for leaks.
-
Page 51: Eliminating Malfunctions
Troubleshooting de 7 Eliminate malfunctions You can rectify minor faults on your device yourself. Use the information on troubleshooting before contacting customer service. This will avoid unnecessary costs. WARNING Risk of electric shock! Improper repairs are dangerous. Only trained specialists are allowed to carry out repairs on the device. ▶... - Page 52 de Troubleshooting Cause and troubleshooting disturbance "E: 36 / -25 / -26" The drain pump is blocked. → " Cleaning the drain pump ", page 46 ▶ Water pressure is low. No fix possible. The filters in the water inlet are blocked. Clean the filters in the water inlet →...
- Page 53 Troubleshooting de Cause and troubleshooting disturbance Program starts Door is not closed. not. Close the door. To start the program, press Begin / Reload. Child lock is activated. → " Deactivating childproof lock ", page 41 ▶ Completed in is activated. check if Completed in is activated.
- Page 54 de Troubleshooting Cause and troubleshooting disturbance Continue the program by pressing Sluice Detergent does not work ▶ change or Pumping out choose and Start / reload pumped out. gene to press. → "Continuing the program at Rinse Hold", page 40 The water drainage hose is connected too high.
- Page 55 Troubleshooting de Cause and troubleshooting disturbance Note: When loading, place large and small items of Program duration change changes during the laundry together in the drum. Laundry items of different sizes are better distributed during spinning. Washing process. The foam control system switches on a rinse cycle if the foam builds up too much.
- Page 56 de Troubleshooting Cause and troubleshooting disturbance High spin speed Note: Place large and small items of laundry together number is not in the drum. Laundry items of different sizes are reached. better distributed during spinning. Start the program Sling . ▶...
- Page 57 Troubleshooting de Cause and troubleshooting disturbance Wrinkling. For the next wash cycle, reduce the load ▶ amount of manure. The wrong program has been selected for the type of fabric. Select programs suitable for the type of textile ▶ the end. →...
- Page 58 de Troubleshooting Cause and troubleshooting disturbance Detergent residue Detergents can contain water-insoluble substances de on the damp that are deposited on the laundry. laundry. Start the program Wash . ▶ Detergent residue Detergents can contain water-insoluble substances de on the dry that are deposited on the laundry.
-
Page 59: Transport, Storage And Disposal
Transport, storage and disposal de Unplug the device from the 17.1 Emergency release mains. Unlock the door Drain off the remaining detergent solution. Pre-condition: The drain pump → "Clean the drain pump", is empty. → Page 46 Page 46 1. ATTENTION! Leaking water can Remove the hoses. -
Page 60: Again
de Transport, storage and disposal Insert all screws of the 4 transport 18.3 Put the device into locks and tighten slightly. operation again Remove the transport locks ▶ nen. 18.4 Dispose of the old device Valuable raw materials can be reused through environmentally friendly disposal. -
Page 61: Customer Service
Customer service de If you contact customer service, you electrical and electronic will need the product number (E no.) equipment - WEEE). And the production number (FD) of your device. The guideline provides You can find the contact details for the framework for an EU- customer service in the enclosed wide valid return and... -
Page 62: Consumption Values
de Consumption values 0 consumption values The following information is provided in accordance with the EU Ecodesign Regulation. The values given for programs other than Eco 40-60 are only guide values and were determined on the basis of the applicable standard EN60456. Per- program Bela-... -
Page 63: Technical Data
Technical specifications de Official EU product database EPREL, 2 1 Technical data the web address of which was not yet published at the time of printing. numbers and facts about your device Please then follow the instructions for You will find here. the model search. - Page 64 Free and easy registration - also on mobile phones: www.bosch-home.com/welcome Looking for help? You'll find it here. Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service directory.
