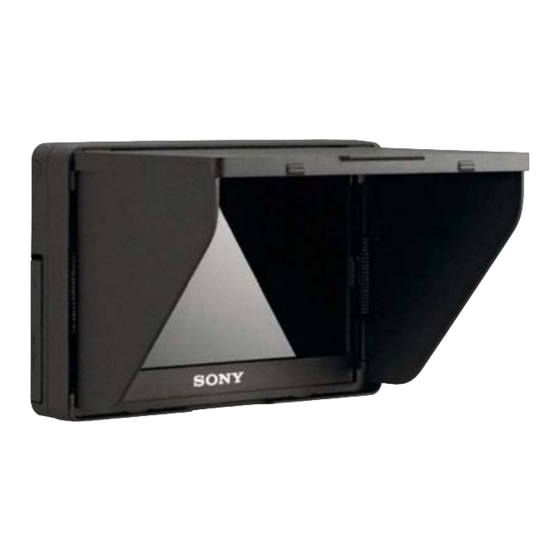

Sony CLM-V55 Service Manual

Clip-on lcd monitor
Hide thumbs Also See for CLM-V55:
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual

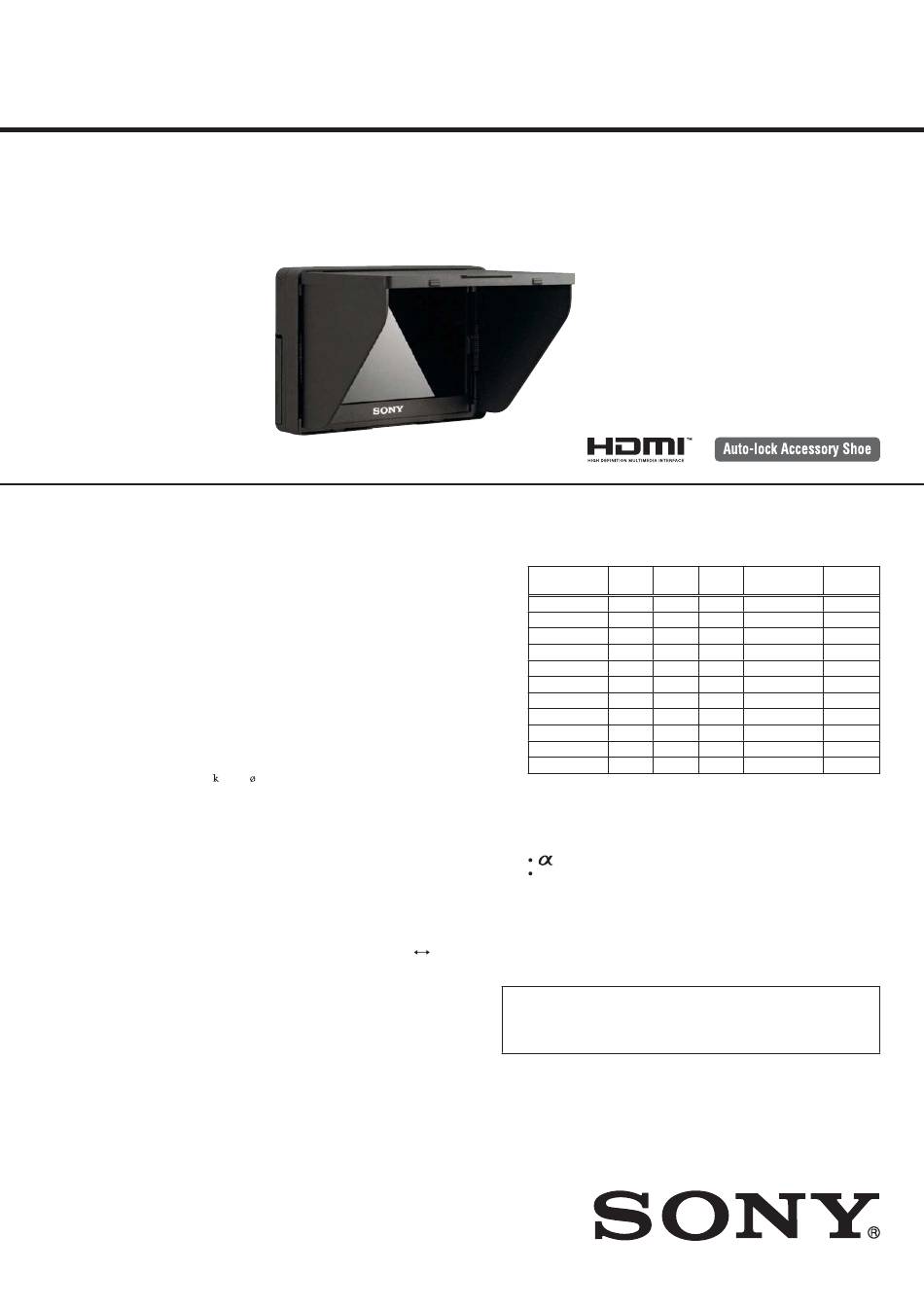

SERVICE MANUAL
Ver. 1.0 2011.02
Picture performance
LCD panel
TFT Normally Black
Picture size
5 type
Viewing angle
90°/90°
Efficient picture size (w × h)
Approx. 108 mm × 64.8 mm
(4 3/8 in. × 2 5/8 in.)
Resolution
800 × 480 pixels
Aspect ratio
15:9
Input/output
Input
HDMI input jack
HDMI (Type A) (1)
DC IN jack
DC 7.6 V
Output
Built-in speaker output
Approx. 0.5 W Monaural
Headphones output jac
3.5 Stereo mini jack (1)
General
Power
DC 7.2 V Sony M series battery
DC 7.6 V AC-PW10AM
Power consumption
Approx. 5 W
Dimensions (w/h/d)
Approx. 129 mm × 88.5 mm × 20 mm (5 1/8 in.
× 3 1/2 in. × 13/16 in.)
(Excluding projecting parts)
Mass
Approx. 250 g (main unit only) (8.9 oz)
Operating temperature
Approx. 0 °C to 40 °C (32 °F to 104 °F)
Storage temperature
Approx. -20 °C to +60 °C (-4 °F to +140 °F)
Accessories supplied
Shoe adaptor (2), HDMI cable (Type A
C) (1), Sun shade hood (1), Carrying pouch (1),
Set of printed documentation
9-893-115-01
Sony Corporation
2011B05-1
©
2011.02
Published by Sony Techno Create Corporation
CLM-V55
SPECIFICATIONS
Available signal formats
The unit is applicable to the following signal formats.
System
575/50I (PAL)
480/60I (NTSC)
576/50P
480/60P
640x480/60P
1080/50I
1080/60I
720/50P
720/60P
1080/50P
1080/60P
Design and specifications are subject to change without notice.
Trademark
is a trademark of Sony Corporation.
HDMI, the HDMI logo and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC.
Type
Note: The mount parts except some connector, jack and switch on board
installed in this set cannot exchange with single. When parts that
not are described on this manual (page 4) are damaged, exchange
the block including the entire mounted board.
US Model
Canadian Model
AEP Model
UK Model
E Model
Australian Model
Chinese Model
Total
Active
Frame
Scanning
lines
lines
rate
625
575
25
2:1 interlace
525
483
30
2:1 interlace
625
576
50
Progressive
525
483
60
Progressive
525
480
60
Progressive
1125
1080
25
2:1 interlace
1125
1080
30
2:1 interlace
750
720
50
Progressive
750
720
60
Progressive
1125
1080
50
Progressive
1125
1080
60
Progressive
CLIP-ON LCD MONITOR
Aspect
ratio
16:9/4:3
16:9/4:3
16:9/4:3
16:9/4:3
4:3
16:9
16:9
16:9
16:9
16:9
16:9

Advertisement

loading

Related Manuals for Sony CLM-V55

Summary of Contents for Sony CLM-V55

  • Page 1 Headphones output jac 3.5 Stereo mini jack (1) Design and specifications are subject to change without notice. General Power DC 7.2 V Sony M series battery DC 7.6 V AC-PW10AM Trademark Power consumption Approx. 5 W is a trademark of Sony Corporation.

  • Page 2: Section 1 Disassembly

    CLM-V55 SECTION 1 DISASSEMBLY • This set can be disassembled in the order shown below. 1-1. DISASSEMBLY FLOW 1-2. REAR PANEL ASSY (RA1) (Page 2) 1-3. MOUNTED BOARD BLOCK (Page 3) 1-4. DC JACK (DC1), FRONT PANEL ASSY (Page 3) Note: Follow the disassembly procedure in the numerical order given.
  • Page 3 CLM-V55 1-3. MOUNTED BOARD BLOCK 2 four mount screws 5 mounted board block 4 LCD flexible board 1 DC jack connector Note: Please spread a sheet under a set not to injure – Rear side view (Bottom side) – front panel.

  • Page 4: Section 2 Exploded View

    CLM-V55 SECTION 2 EXPLODED VIEW Note: The components identifi ed by mark 9 con- • -XX and -X mean standardized parts, so • The mechanical parts with no reference tain confi dential information. they may have some difference from the...

  • Page 5: Section 3 Accessories

    CLM-V55 SECTION 3 ACCESSORIES Ref. No. Part No. Description Remark CABLE, HDMI (Approx. 45 cm, Type A ↔ Type C) 1-967-831-11 4-279-123-02 MANUAL, INSTRUCTION (JAPANESE, SIMPLIFIED CHINESE) (Chinese) 4-279-123-12 MANUAL, INSTRUCTION (ENGLISH, FRENCH) (EXCEPT Chinese) 4-279-123-22 MANUAL, INSTRUCTION (PORTUGUESE, RUSSIAN, TRADITIONAL CHINESE, KOREAN,...

  • Page 6: Revision History

    CLM-V55 REVISION HISTORY Checking the version allows you to jump to the revised page. Also, clicking the version at the top of the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 2011.02...
